SM 4-243 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.19.16 PAPER EXIT EXHAUST FAN (FAN5)
This procedure is for the Finisher Model.
1. Remove the rear cover. (Rear Cover)
2. Remove the right rear cover. (Right Rear Cover)
3. Open the right cover.

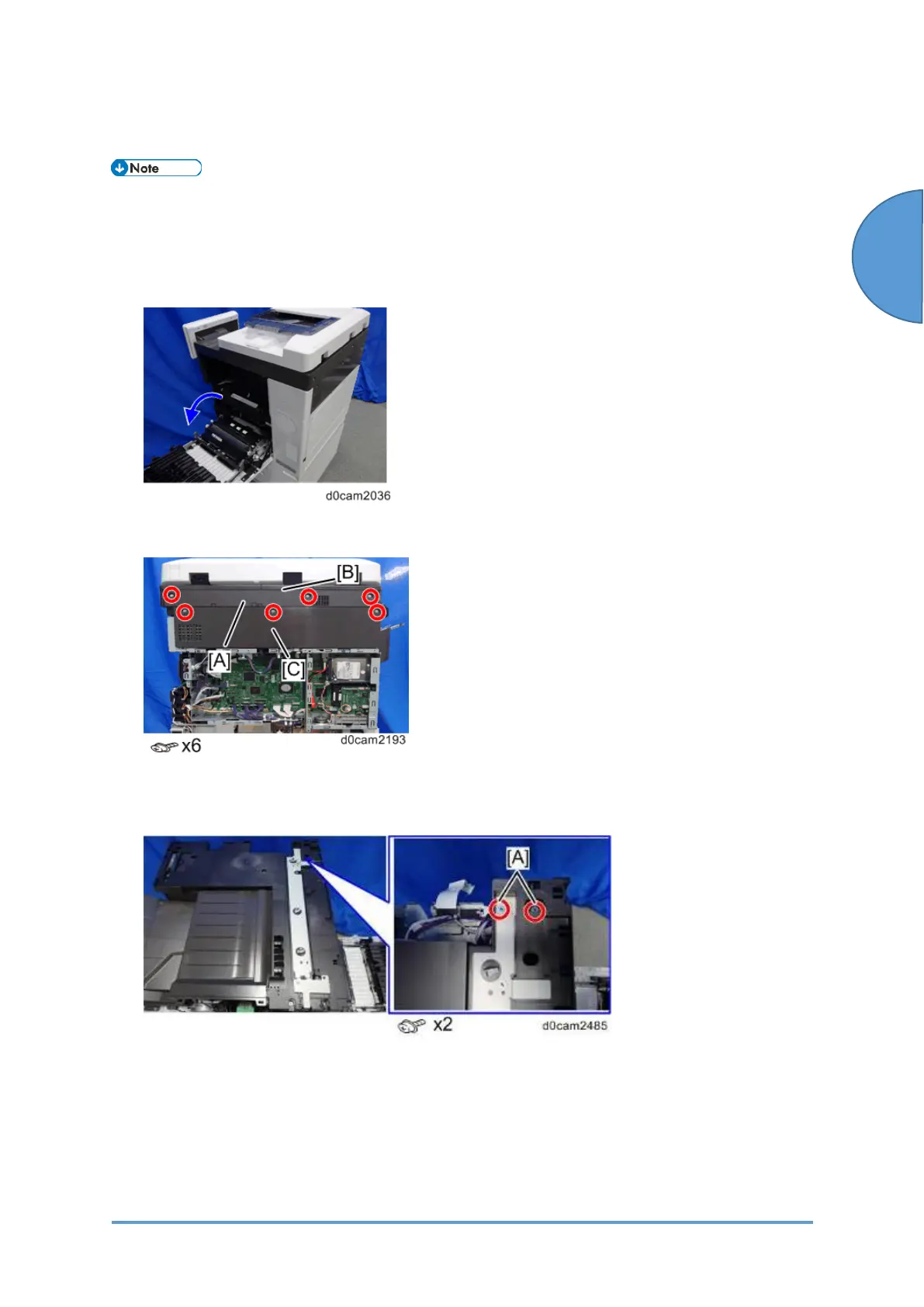

4. Remove the scanner rear cover [A],scanner rear small cover [B] and rear upper cover [C].
5. Remove the scanner unit.(Scanner Unit with the ADF)
6. Remove the two screws [A].
7. Remove the cover [A] from the paper exit unit.
To Next Page
