ITB/ Paper Transfer
SM 7-61 D0CA/D0C9/D0C8/D0CB
7.9 ITB/ PAPER TRANSFER

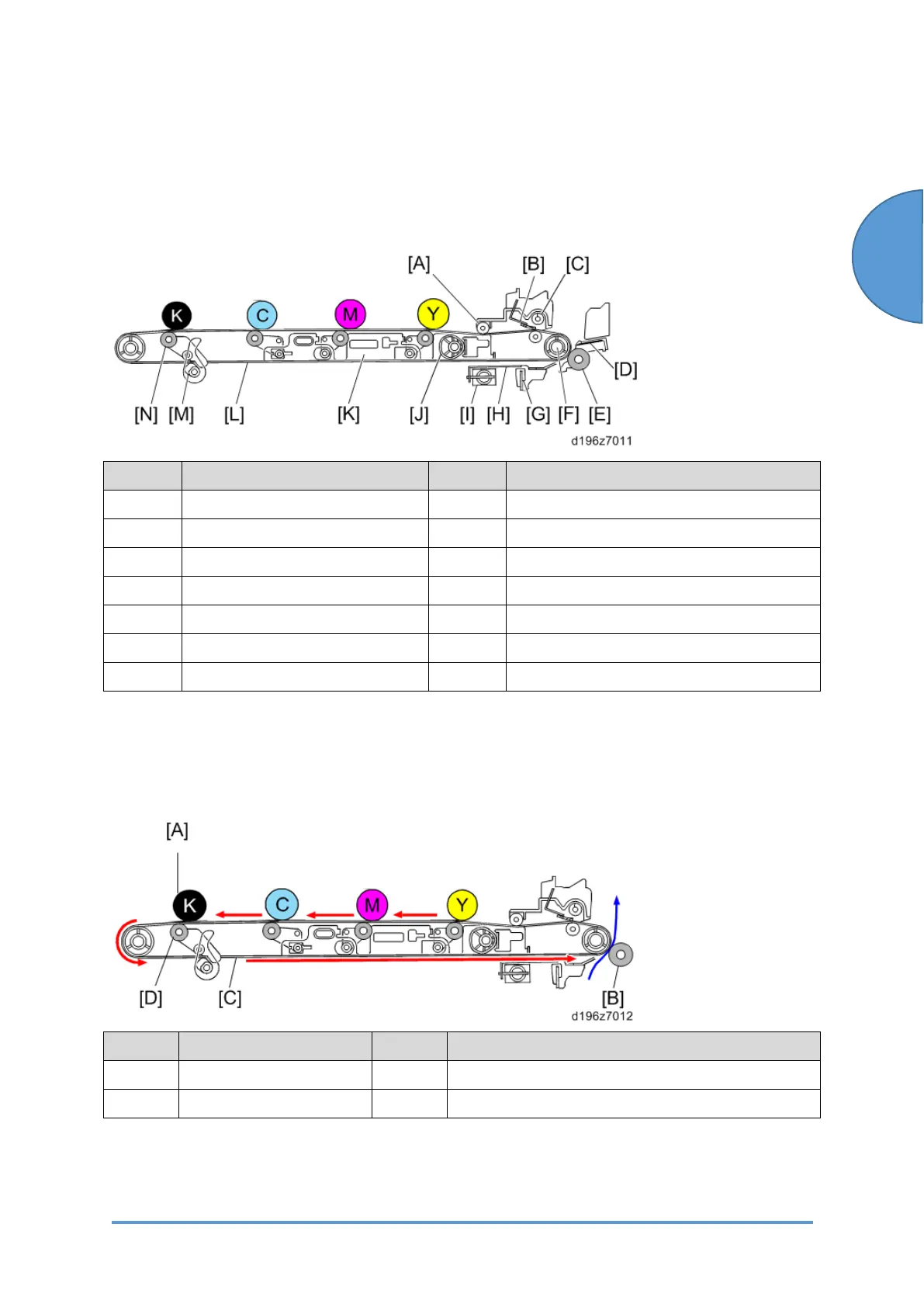

7.9.1 OVERVIEW
Callout Item Callout Item
[A] Belt Tension Roller [H] ID Sensor Shutter
[B] ITB Cleaning Blade [I] ID Sensor Shutter Solenoid (SOL2)
[C] Waste Toner Transport Coil [J] ITB Contact Cam (CMY)
[D] Discharge Plate [K] ITB Contact Slider
[E] Paper Transfer Roller [L] ITB (Image Transfer Belt)
[F] ITB Drive Roller [M] ITB Contact Cam (K)
[G] ID Sensor (S27-S29) [N] Image Transfer Roller
7.9.2 TRANSFER MOVEMENT AND IMAGE TRANSPORT
Images of each color are created and transferred to the ITB (image transfer belt) [C].
The paper transfer roller [B] transfers the toner image from the ITB to the paper.
Callout Item Callout Item
[A] OPC Drum [C] ITB
[B] Paper Transfer Roller [D] Image Transfer Roller (First Transfer Roller)
This model uses the indirect transfer method to enhance the quality of transfer.
