3.13 INPUT AND OUTPUT CHECK

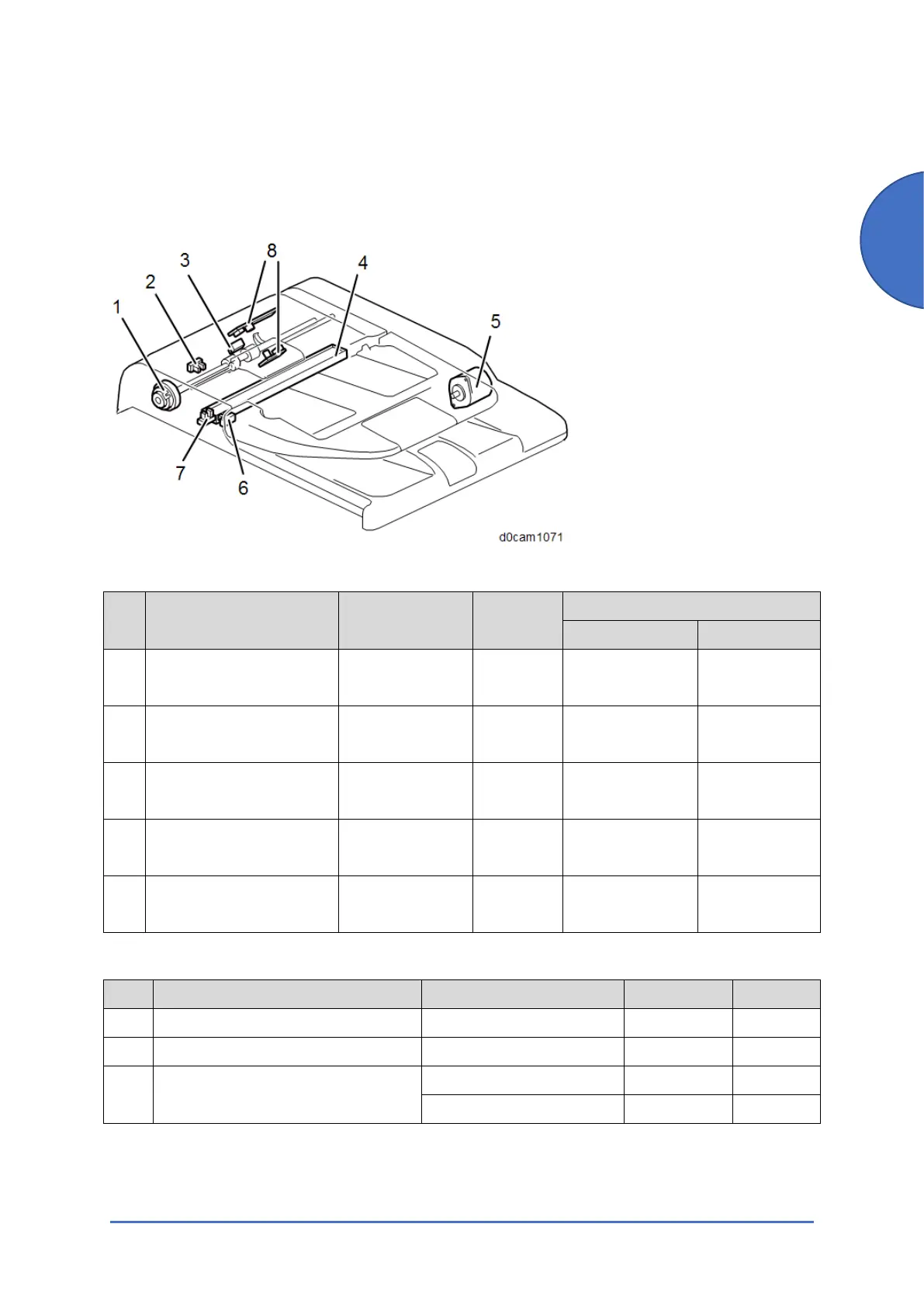

3.13.1 ADF UNIT
Input Check
No. Part Name SP Name SP No. Reading
0 1
2 Original feed sensor
(S25)
DF Feed
Sensor
6-011-010 Paper detected Paper not
detected
3 Registration sensor
(S24)
Registration
Sensor
6-011-013 Paper detected Paper not
detected
6 ADF top cover sensor
(S23)
Feed Cover
Sensor
6-011-015 Close Open
7 Original set sensor
(S22)
Original
Detection
6-011-009 Not set Set
8 Double-feed sensor
(PCB14) (PCB15)
Page Keeper
Sensor
6-011-024 Double feed not
detected
Double feed
detected
Output check
No. Part Name SP Name SP No. Remark
1 Original feed clutch (CL4) Feed Clutch 6-012-014
4 CIS (S21) unit: scanner lamp Scanner Lamp: Color 4-723-001
5 ADF motor (M8) Motor Forward 6-012-003
Motor Reverse 6-012-004
3.13.2 SCANNER UNIT/ LASER UNIT
