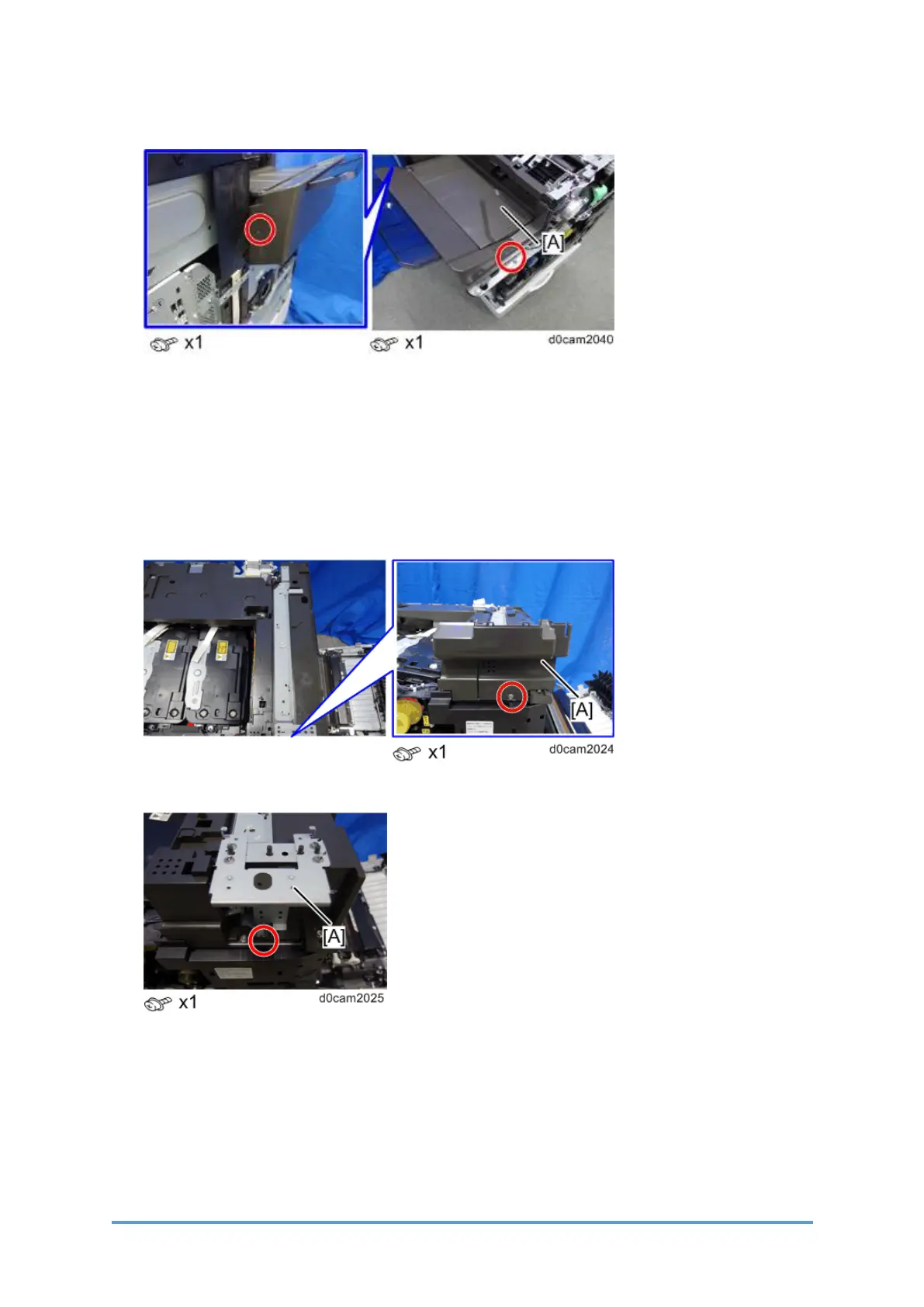

4. Remove the paper exit tray [A].
4.4.7 SCANNER INNER COVER
IM C300 series/IM C400F
1. Remove the ADF and scanner unit. (Scanner Unit with the ADF)
2. Remove the operation panel. (Operation Panel)
3. Remove the cover [A] under the operation panel.
4. Remove the bracket [A].
