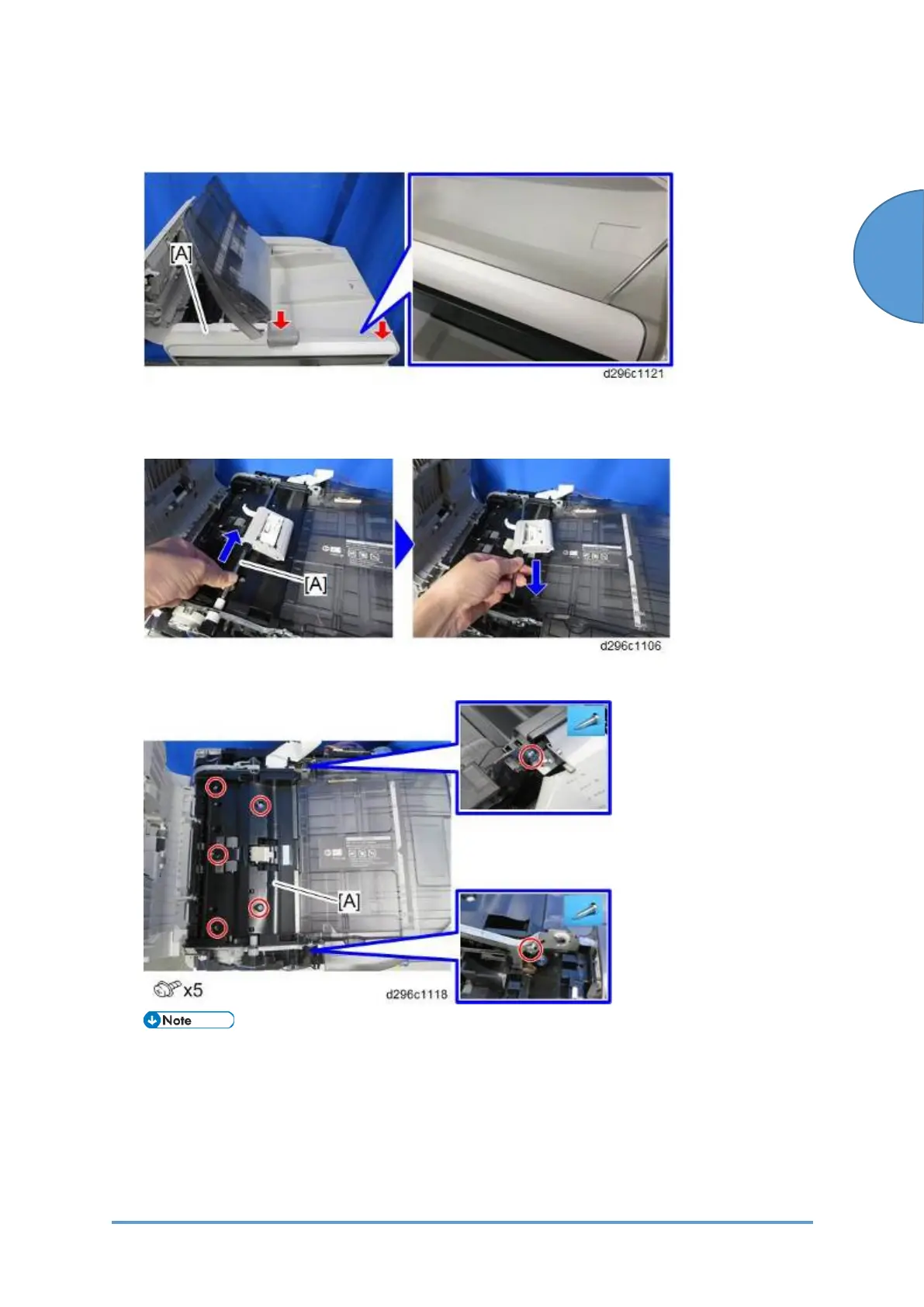

3. Close the ADF slightly, then remove the ADF front cover [A] while releasing the two tabs
with a thin screwdriver.
Slide the shaft [A] of the original feed unit toward the rear to remove it.
1. Remove the ADF inner cover [A].(Pivot Screws x 2)
• Lift the back of the ADF inner cover [A] while swinging up the original tray [B], and
then slide the ADF inner cover toward the back of the ADF unit.
To Next Page
