7.3 SCANNER UNIT
7.3.1 OVERVIEW
Callout Item Callout Item

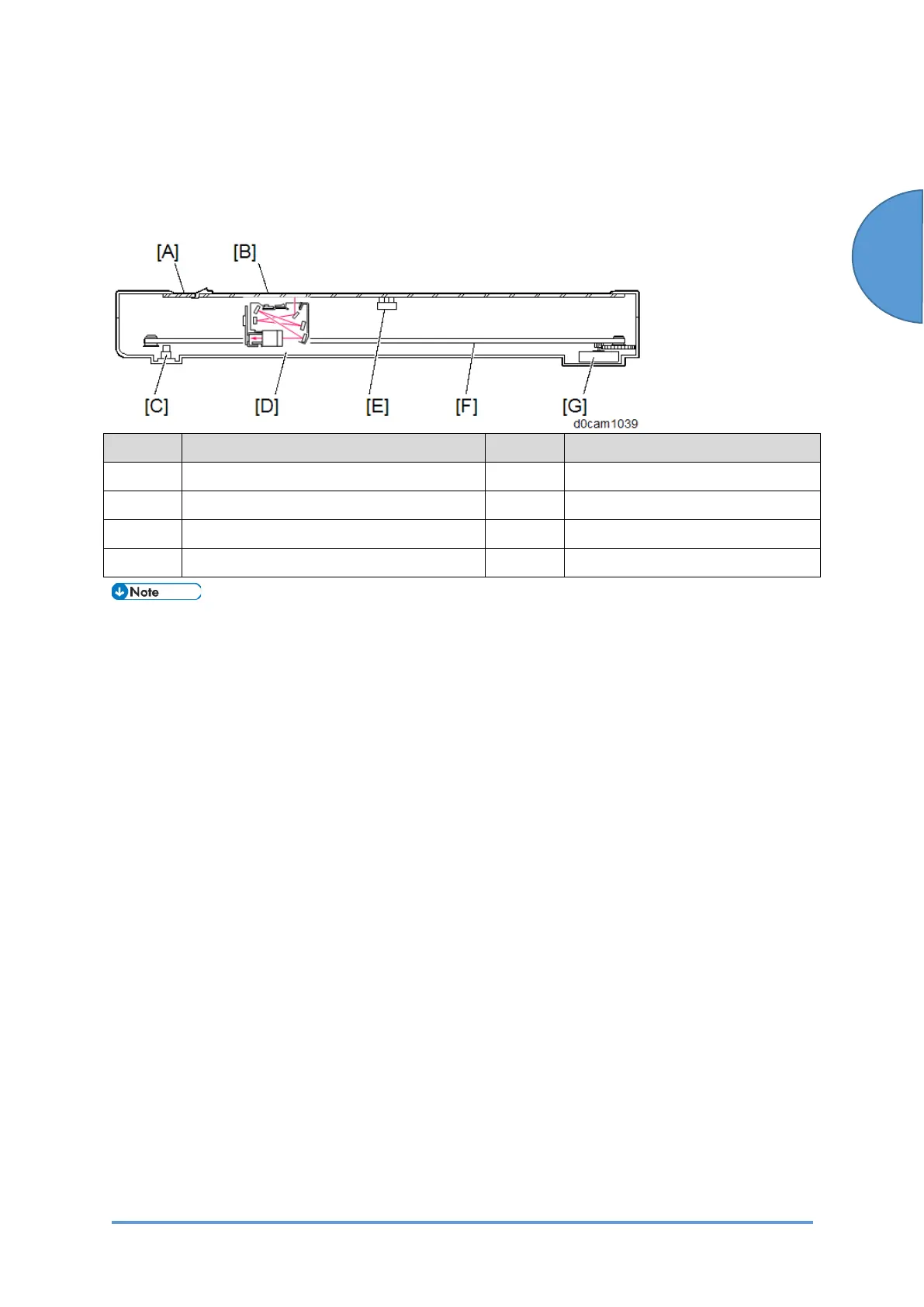

[A] Exposure Glass (for ADF) [E] ADF Position Sensor (S19)
[B] Exposure Glass (for platen mode) [F] Scanner Carriage Drive Belt
[C] Scanner HP Sensor (S20) [G] Scanner Motor (M7)
[D] Scanner Carriage - -
• Automatic paper size detection is not available because this model has no APS
(sensor that detects original’s paper size) in the scanner.
7.3.2 LIGHT SOURCE AND EXPOSURE
This model uses an LED for the light source. Light from the LED array board (LEDB) [A] goes to
the original via the light guiding panel [B] and the reflector [C]. Then from the original, the light
follows the light path to the CCD [J].
The LED lamps are disposed at both ends so that sufficient light reaches the left and right ends
of the document.
The light reflected from the original travels as follows:
LED exposure -> 1
st
mirror [D] -> 2
nd
mirror [E] -> 3
rd
mirror [F] -> 4
th
mirror [G] -> 5
th
mirror [H]
-> Lens [I] -> CCD [J]
