Installation Requirements
SM 2-3 D0CA/D0C9/D0C8/D0CB
2.1.4 MACHINE DIMENSIONS
Model* W×D×H
IM C300 498 x 561 x 510 mm (19.6" × 23.0" × 20.1")
IM C300F 554 x 561 x 595 mm (21.9" × 23.0" × 23.4")
IM C400F 498 x 561 x 590 mm (19.6" × 23.0" × 23.2")
IM C400SRF 615 x 561 x 706 mm (24.2" × 23.0" × 27.7")
* including ADF and operation panel
Main unit only

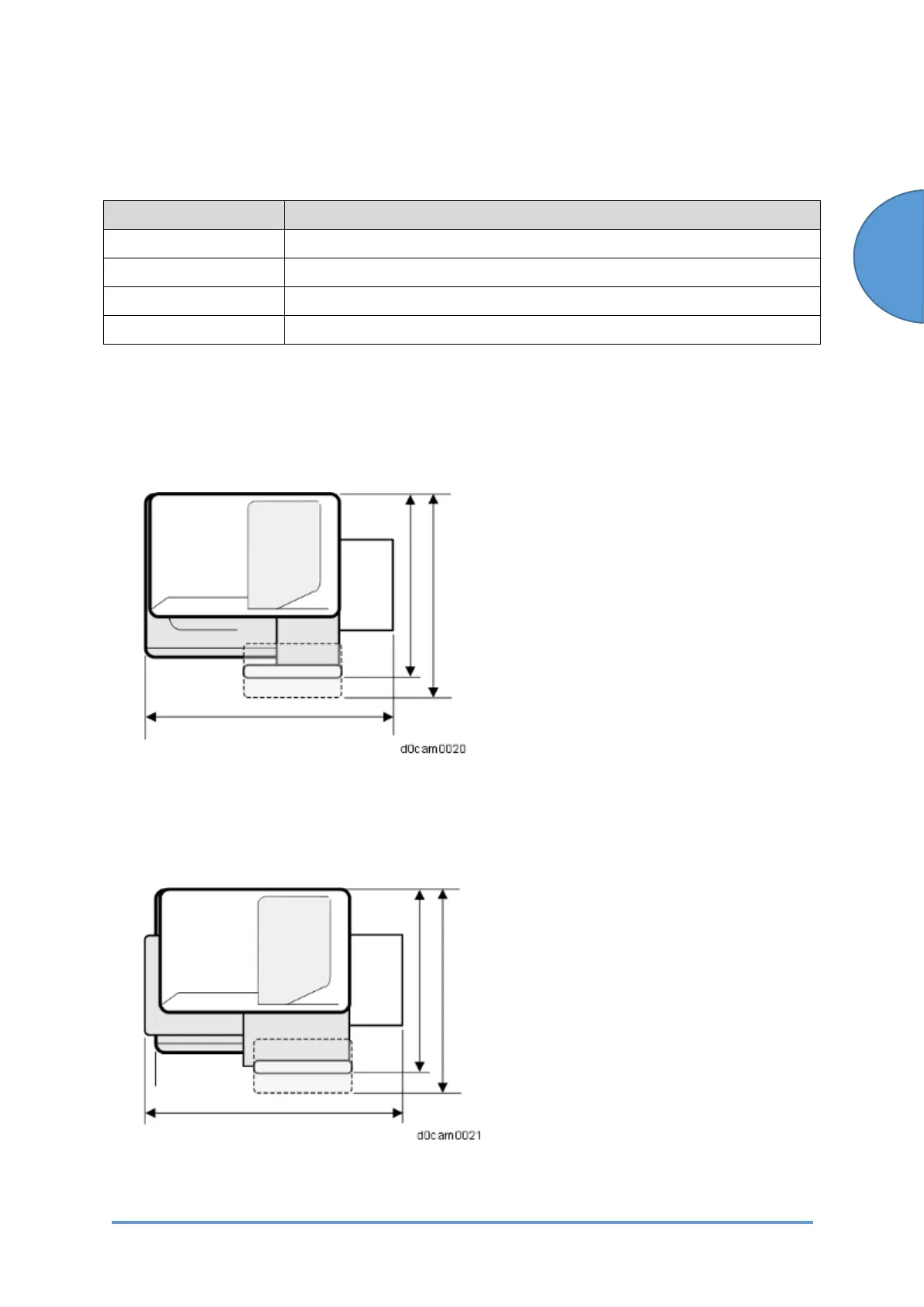

• When the operation panel is upright: 708 x 561 mm
• When the operation panel is face up: 708 x 605 mm
When the 1-bin tray is installed
• When the operation panel is upright: 764 x 561 mm
• When the operation panel is face up to the maximum (tilted 20 degrees to the front): 764 x
615 mm
