Ricoh IM C400F

Machine Overview
SM 7-19 D0CA/D0C9/D0C8/D0CB
Detailed
Descriptions
Drive Unit
IM C300 series
IM C400 series

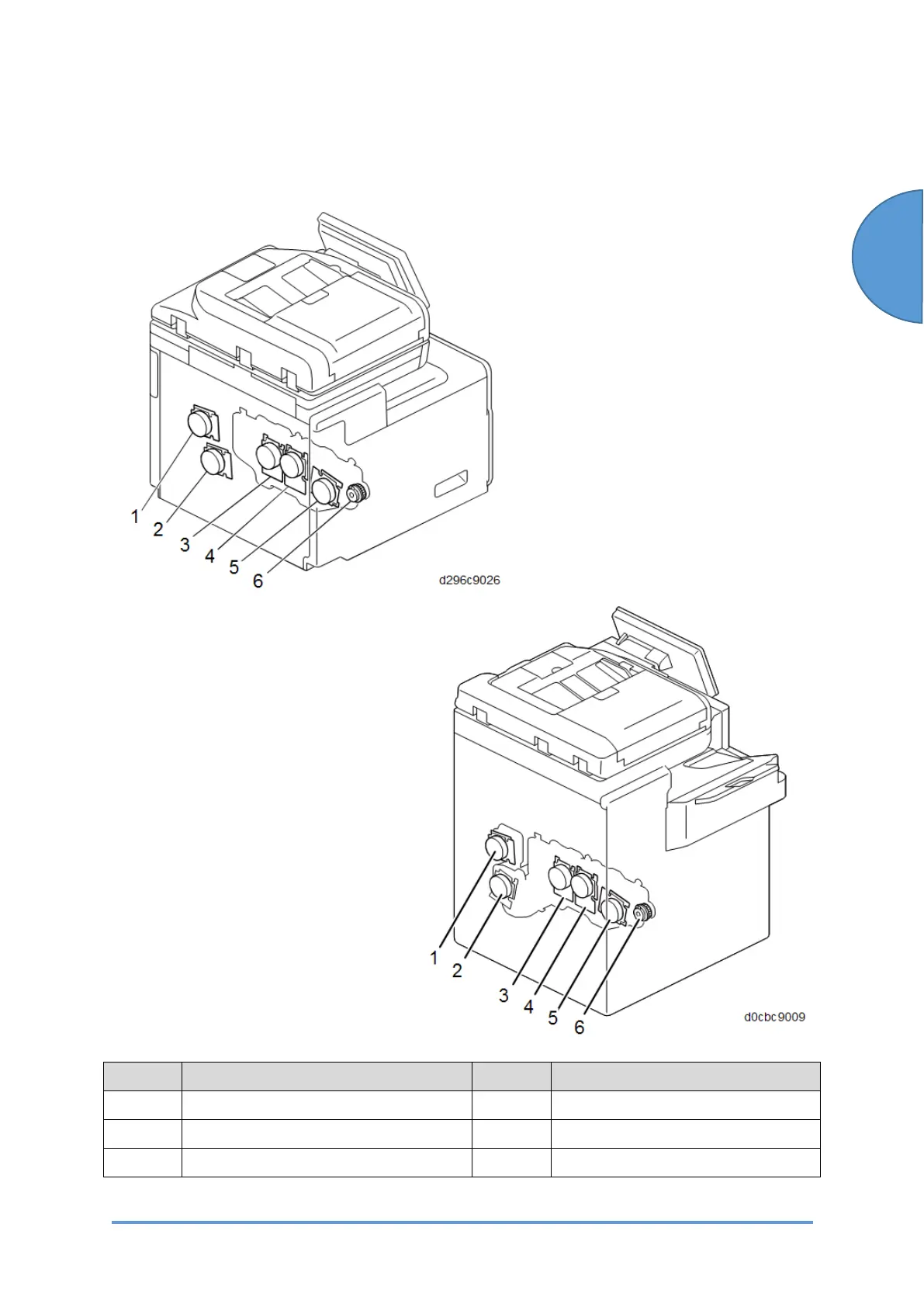

Callout Item Callout Item
1 Fusing Motor (M13) 4 Drum Motor (CMY) (M10)
2 Paper Transport Motor (M12) 5 Drum Motor (M11)
3 Development Motor (CMY) (M9) 6 Development Clutch(K) (CL5)
