Electrical Components
SM 4-241 D0CA/D0C9/D0C8/D0CB
&
Adjustment

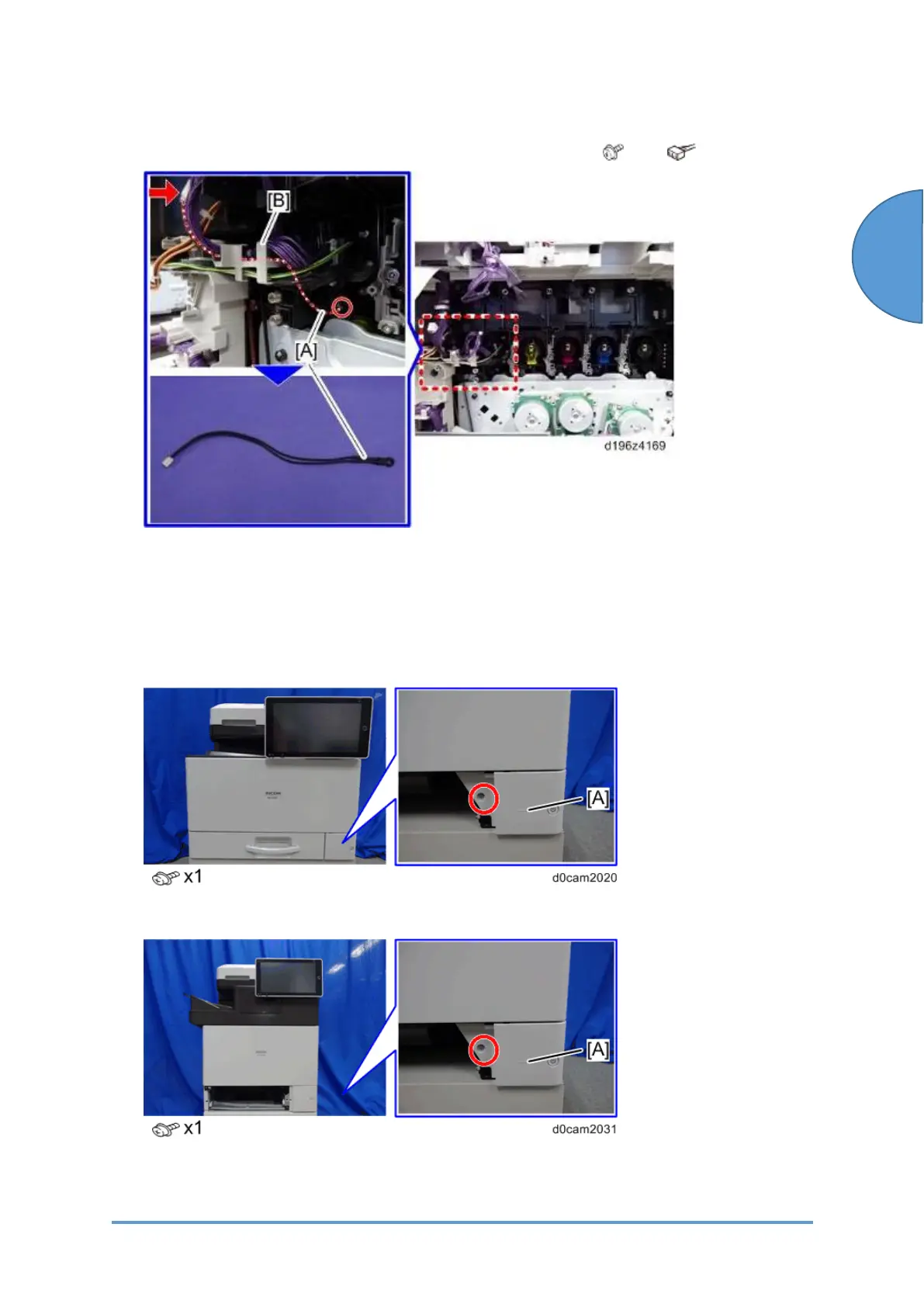

2. Remove the imaging temperature sensor (TH5) [A] while releasing the harness of the
imaging temperature sensor (TH5) from the harness guide [B]. (
× 1, × 1)
4.19.15 INTERLOCK SWITCHES
1. Pull out the paper tray.
2. Remove the front lower cover [A].
