Image/Paper Transfer
SM 4-131 D0CA/D0C9/D0C8/D0CB
&
Adjustment
Enter correction coefficients on barcode sheet for value 1 and 2.
• For example, enter “1.02” with value 2.
4. Exit the SP mode.
4.12.5 ID SENSOR SHUTTER SOLENOID (SOL2)
1. Remove the following parts.
• Waste Toner Bottle
• PCDU (Photo Conductor and Development Unit)
• Fusing Unit
• ITB (Image Transfer Belt) Unit

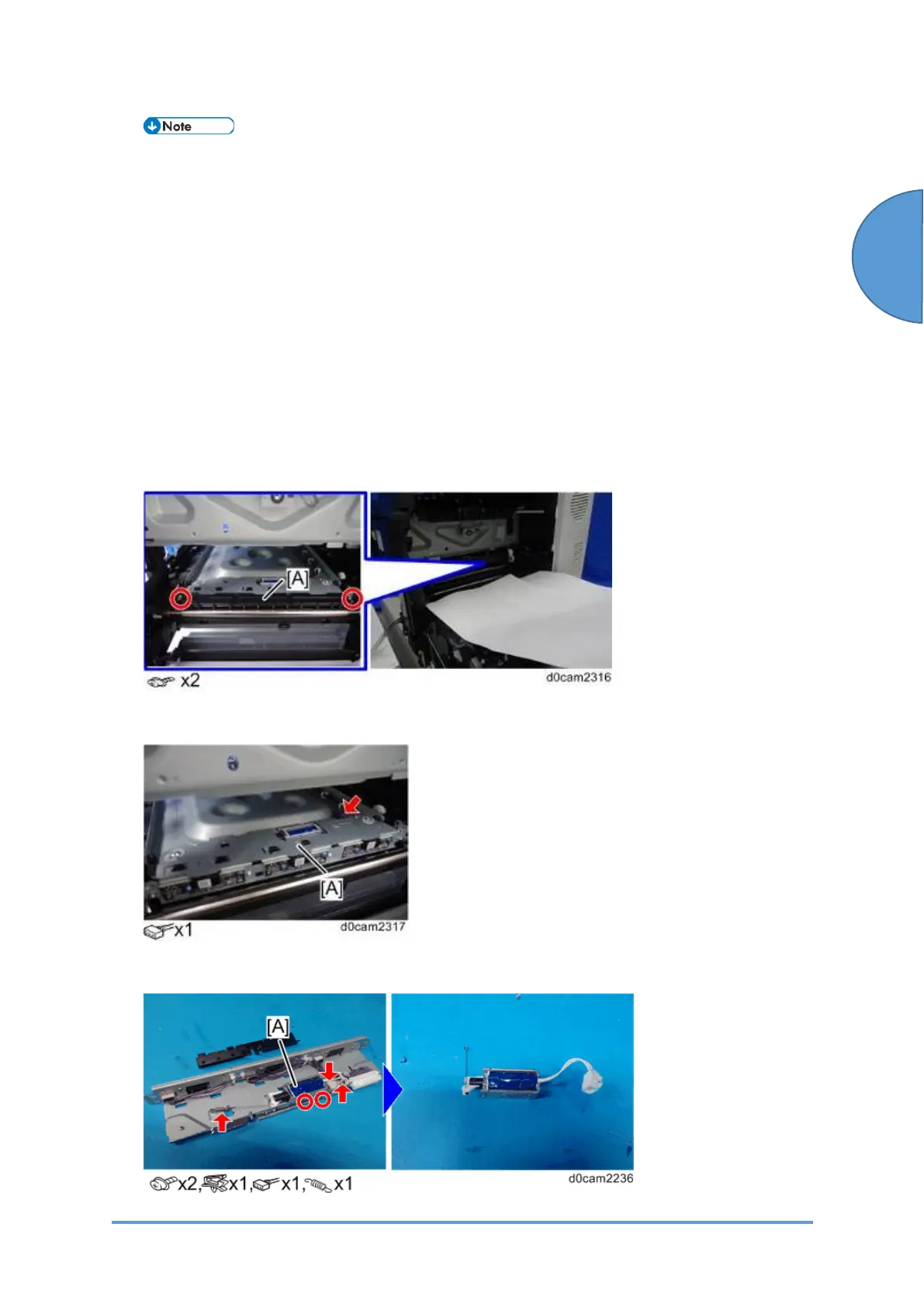

2. Remove the guide plate [A].
3. Remove the ID sensor (S27-S29) [A] with the bracket.
4. Remove the ID sensor shutter solenoid (SOL2) [A].
