Ricoh IM C400F

ADF
SM 4-59 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
4.6.7 ADF RELAY BOARD (PCB13)

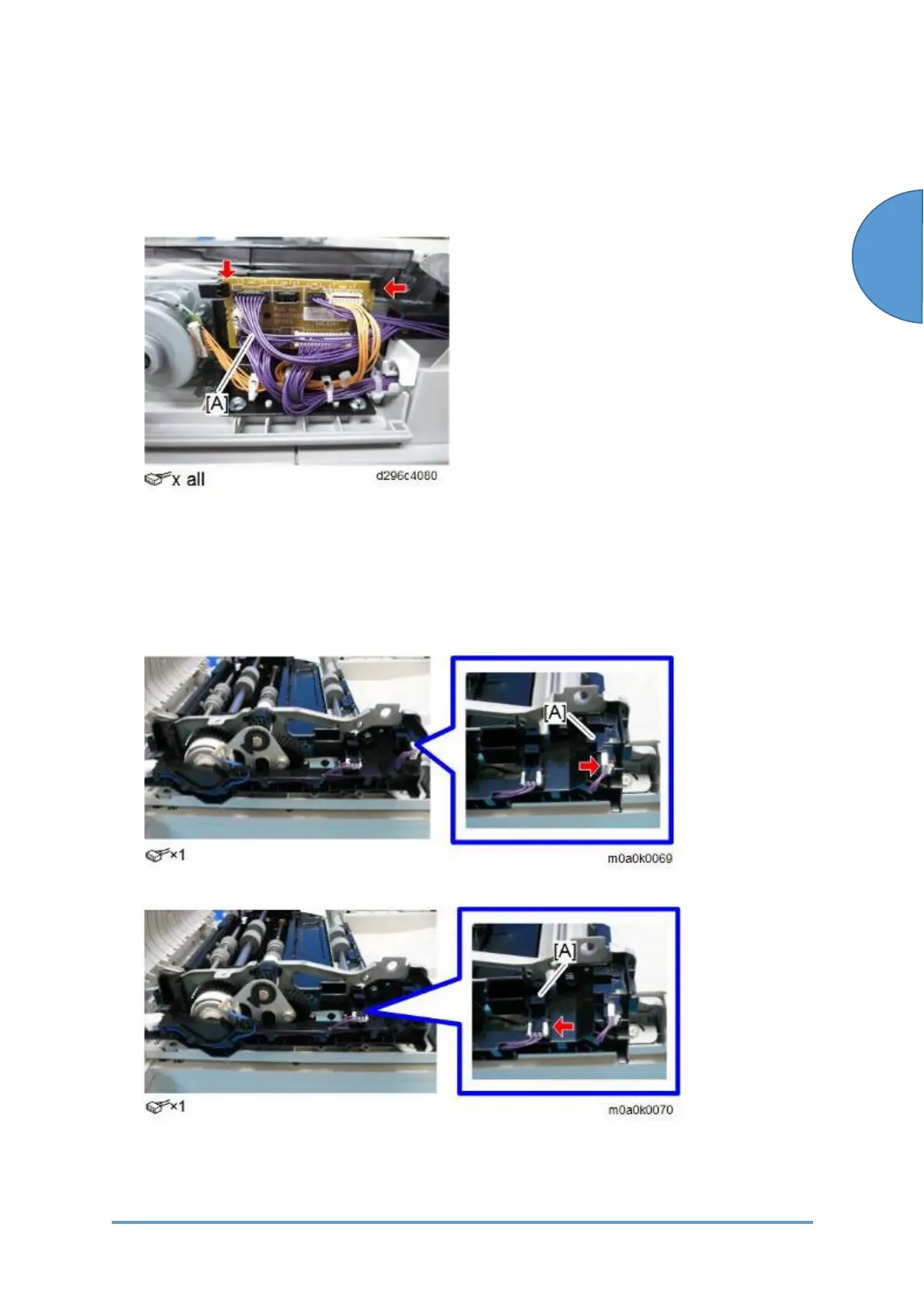

1. Remove the ADF rear cover. (ADF Rear Cover)
2. Remove the ADF relay board (PCB13) [A] while releasing the hook.
4.6.8 ADF TOP COVER SET SENSOR (S23), ORIGINAL SET
SENSOR (S22)
1. Remove the ADF front cover (ADF Front Cover)
2. Remove the top cover set sensor (S23) [A].
3. Remove the original set sensor (S22) [A].
