Paper Feed and Registration (IM C300 Series)
SM 7-81 D0CA/D0C9/D0C8/D0CB

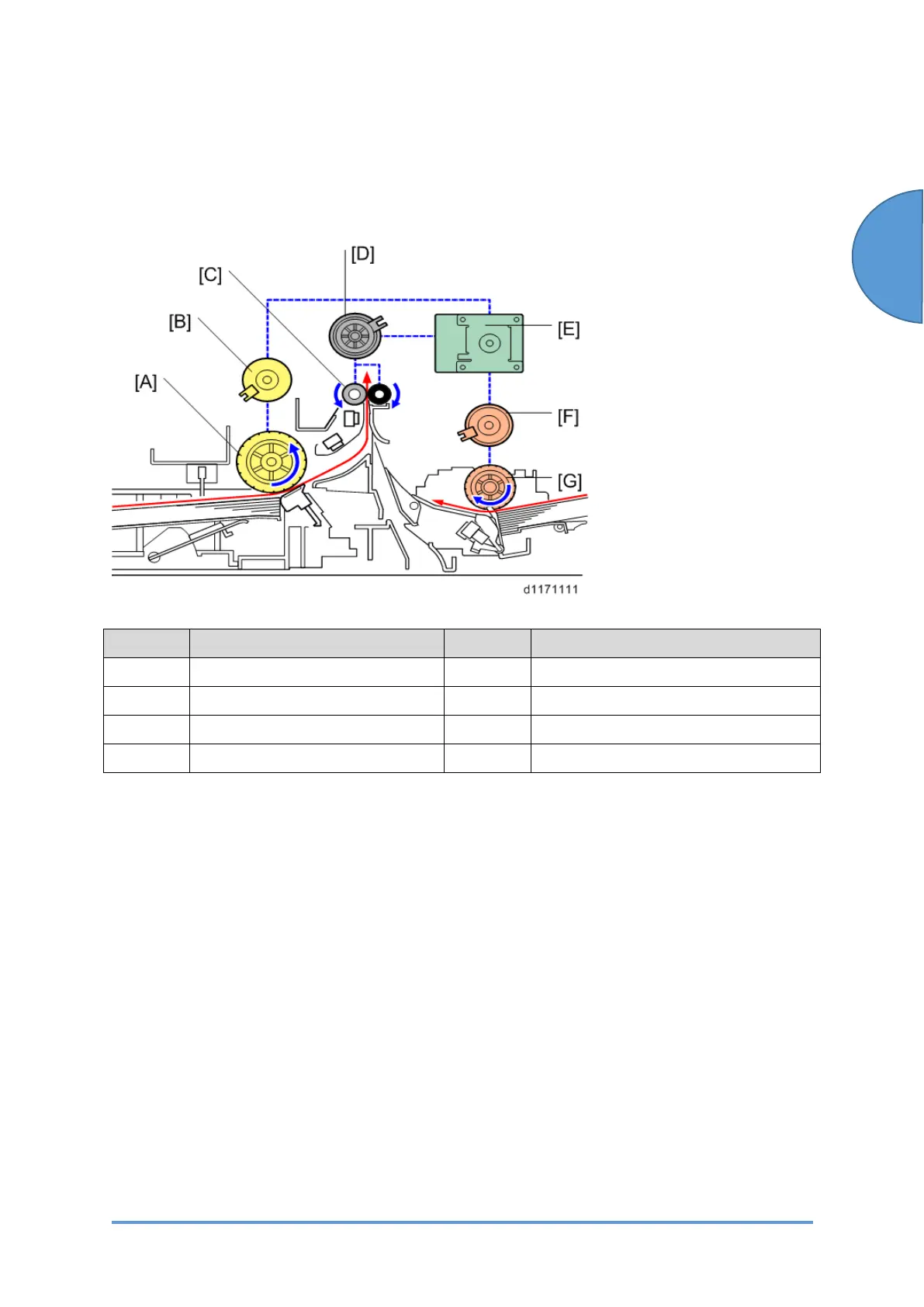

7.12.2 PAPER TRANSPORT MOTOR (M12)
The drive from the paper transport motor (M12) [E] is transmitted to each clutch through gears.
The paper transport motor (M12) [E] controls paper feed/exit, duplex, registration, waste toner
transport coil and bypass tray lift.
Callout Item Callout Item
[A] Paper Feed Roller [E] Paper Transport Motor (M12)
[B] Paper Feed Clutch (CL9) [F] Bypass Feed Clutch (CL7)
[C] Registration Roller [G] Bypass Feed Roller
[D] Registration Clutch (CL8) - -
