Electrical Components
D0CA/D0C9/D0C8/D0CB 4-236 SM

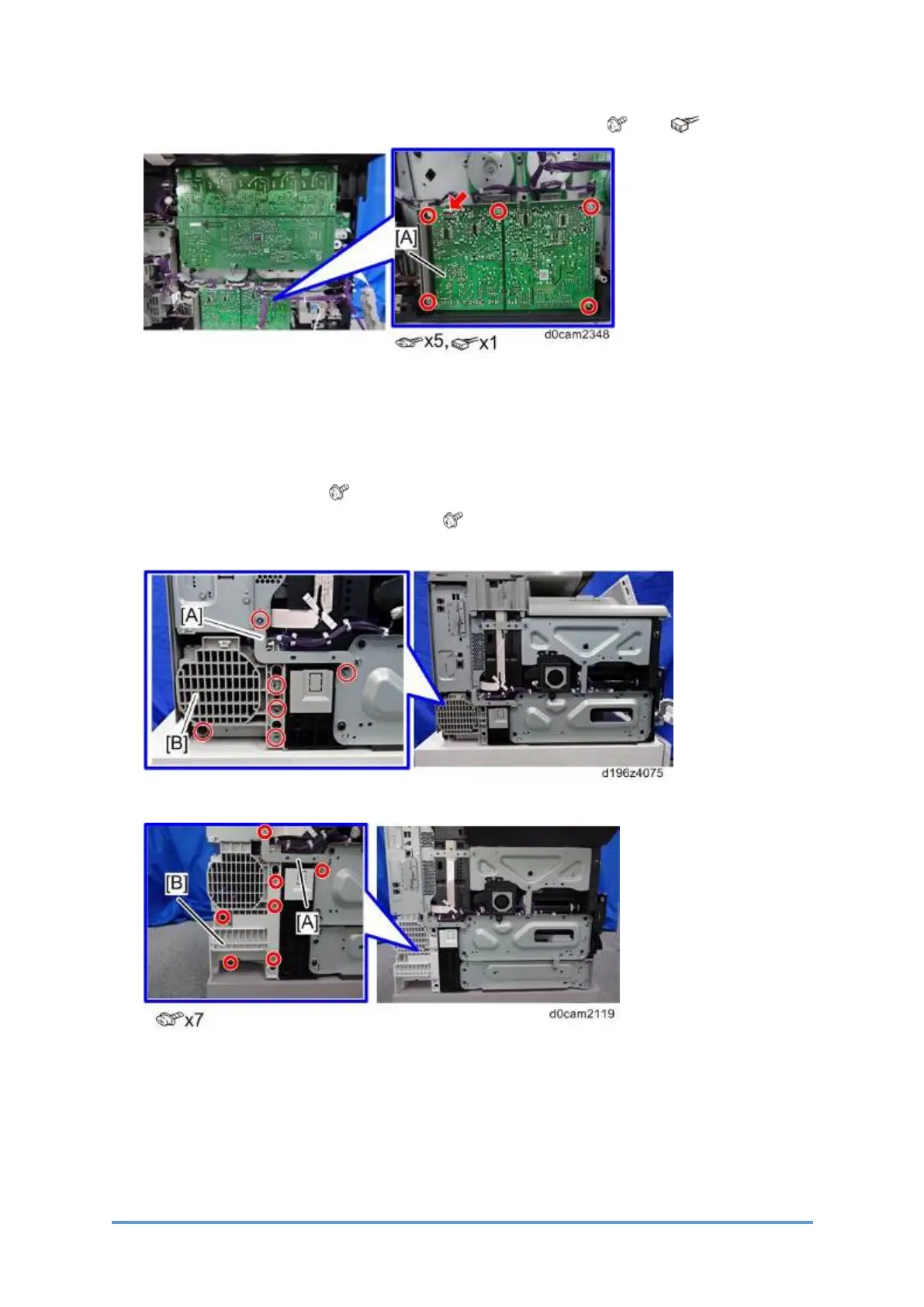

2. Remove the high-voltage power supply (Transfer) (PCB23) [A]. ( × 5, × 1)
4.19.10 PSU EXHAUST FAN (FAN4)
1. Remove the upper left cover. (Upper Left Cover)
2. Remove the left cover. (Left Cover)
3. Remove the bracket [A]. ( × 2)
4. Remove the screws of the fan cover [B]. ( × 4)
IM C300 series
IM C400 series
5. Disconnect the connectors and pull out the PSU exhaust fan (FAN4) [A] with the cover.
IM C300 series
To Next Page
