Paper Feed and Registration (IM C300 Series)
SM 7-83 D0CA/D0C9/D0C8/D0CB
7.12.4 TRANSPORT CONTROL

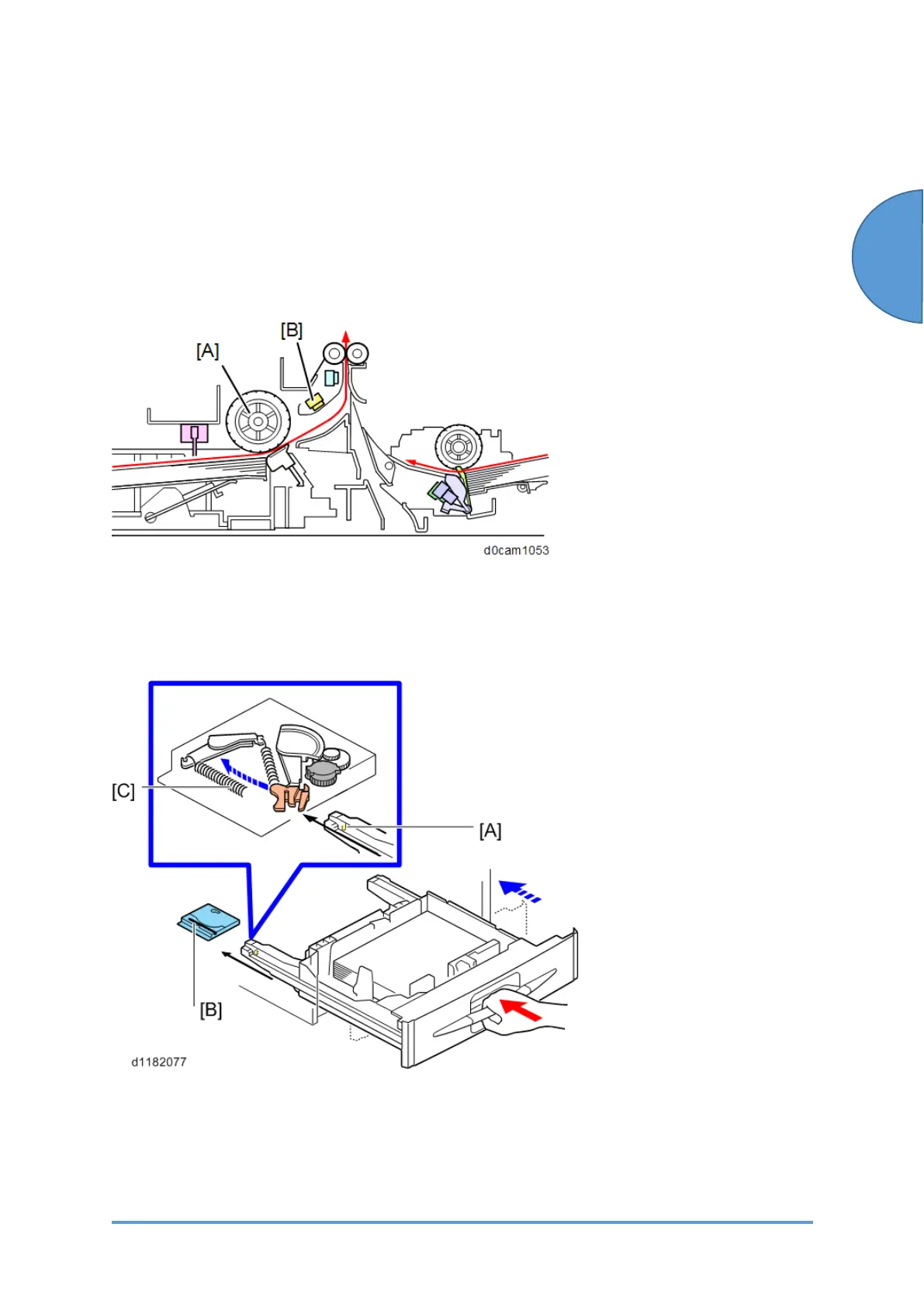

The paper feed sensor (S31) [B] monitors whether the paper is fed by the paper feed roller [A]
at intervals that are too short.
If an overly short interval is detected, the paper feed clutch (CL9) is stopped momentarily to
increase the interval and prevent a paper jam due to such a short interval.
7.12.5 TRAY AUTO-CLOSE MECHANISM
The tray has a pin [A] on its bottom. When the tray is set, the spring [C] in the draw-in unit [B]
slowly pulls the tray in. When the tray is pulled out, the pin stretches the spring.
[A]: Pin
[B]: Draw-in Unit
[C]: Spring
