Paper Feed
D0CA/D0C9/D0C8/D0CB 4-168 SM

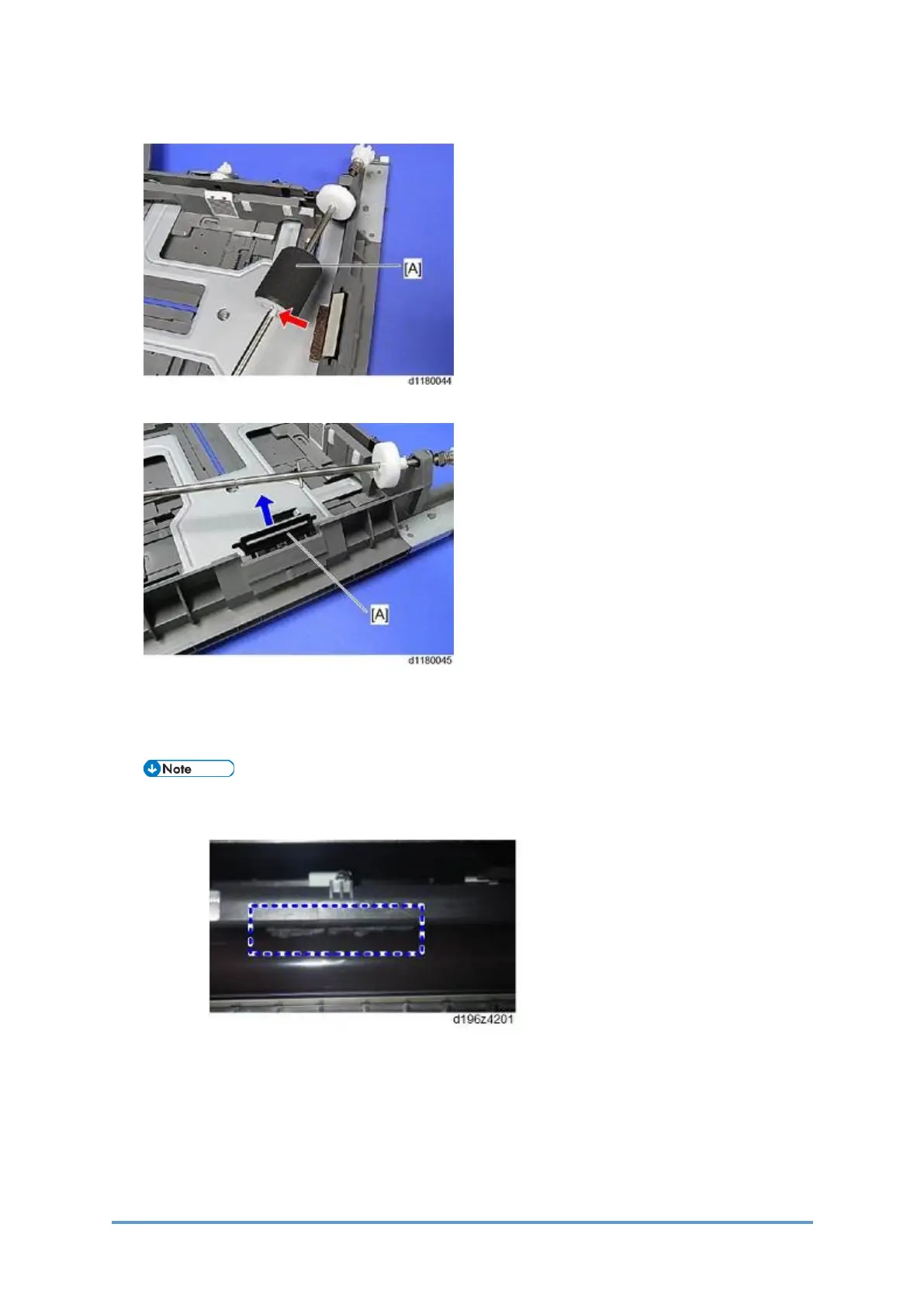

3. Remove the paper feed roller [A]. (Hook × 1)
4. Remove the friction pad [A]. (Hooks × 2)
Registration Sensor (S32), Paper Feed Sensor (S31)
1. Open the right door.
• If you find paper dust in the registration section when you open the duplex unit,
remove the dust. Otherwise, the dust can cause lines on the image.
2. Pull down the guide plate [A].
