Ricoh IM C400F

Internal Finisher (IM C400SRF Only)
D0CA/D0C9/D0C8/D0CB 4-94 SM

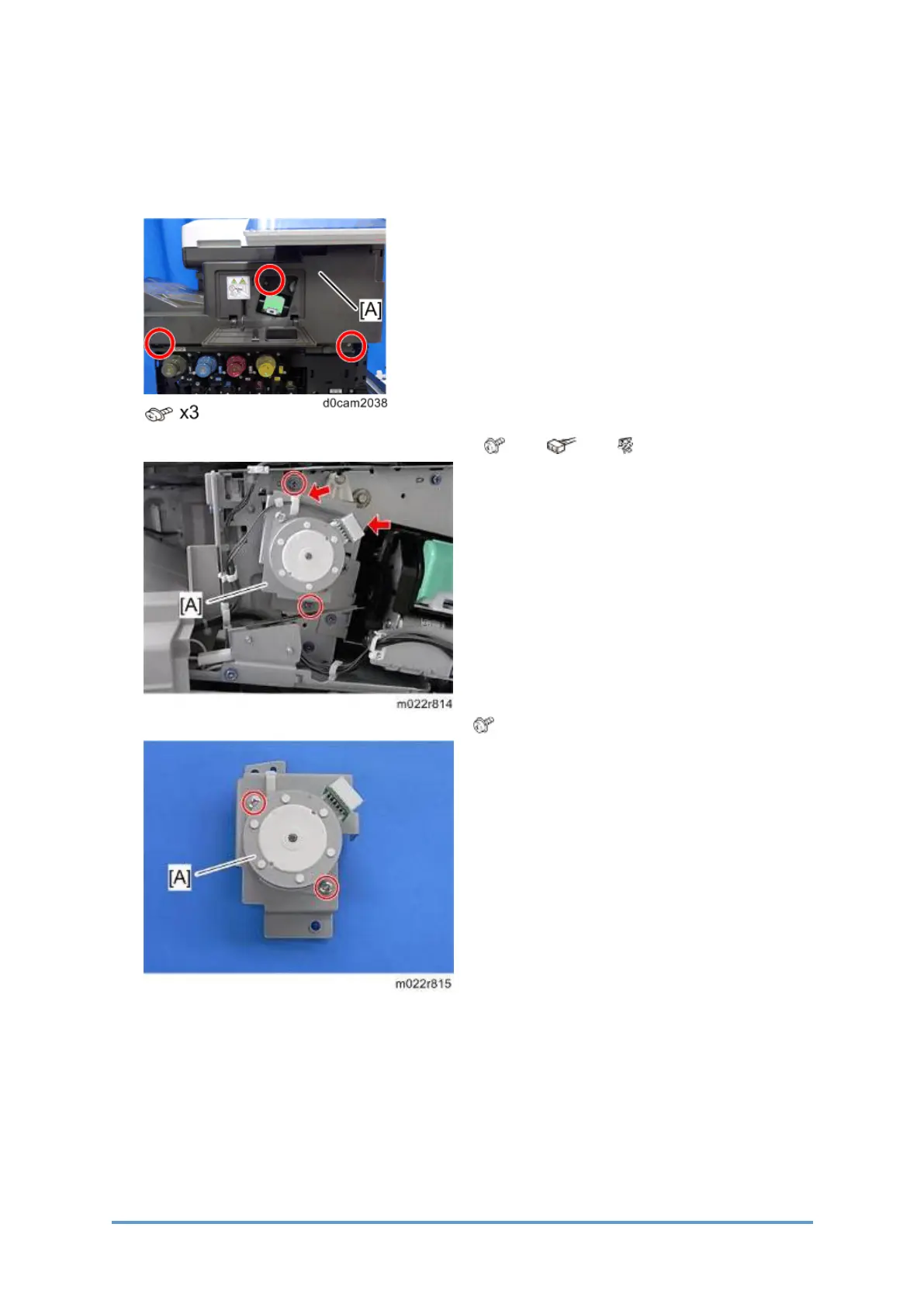

4.8.9 EXIT GUIDE PLATE MOTOR (M21)
1. Open the front cover.
2. Remove the paper exit front cover [A].
3. Remove the exit guide plate motor bracket [A] ( x 2, x 1, x 1).
4. Remove the exit guide plate motor (M21) [A] ( x 2).
