Scanner
D0CA/D0C9/D0C8/D0CB 4-70 SM
4.7 SCANNER
4.7.1 SCANNER UNIT
1. Remove the right rear cover. (Right Rear Cover)
2. Remove the upper left cover. (Upper Left Cover)

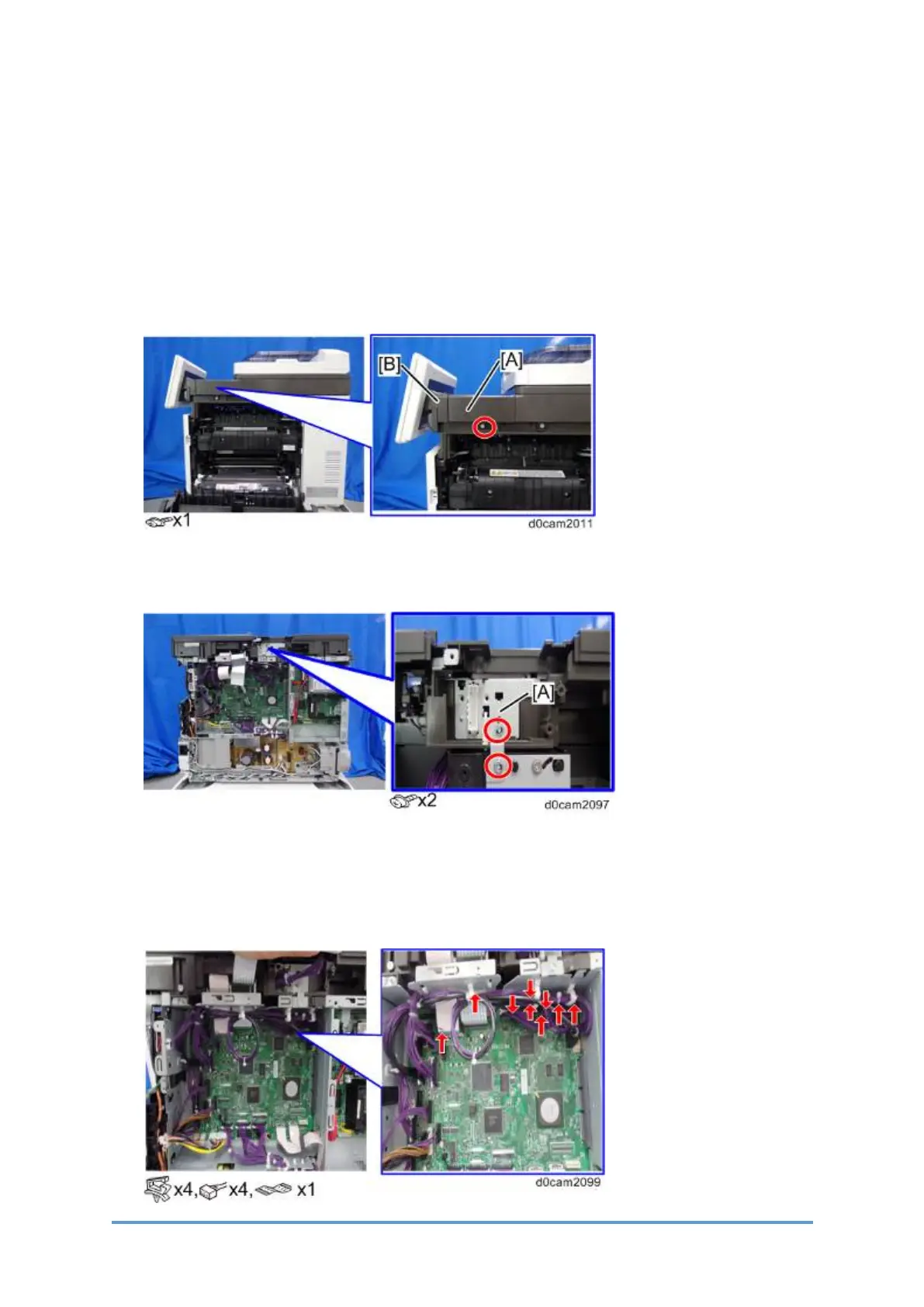

3. Remove the front right cover [A] and the hinge cover [B].
4. Remove the A D F. (ADF Unit)
5. Remove the grounding plate [A].
6. Disconnect the harnesses and FFC from the scanner unit.
When lifting the scanner unit, move the harnesses out of the frame so that they do not
interfere.
IM C300 series/IM C400F
To Next Page
