ADF
SM 4-61 D0CA/D0C9/D0C8/D0CB
&
Adjustment
4.6.11 ADF REGISTRATION SENSOR (S24)

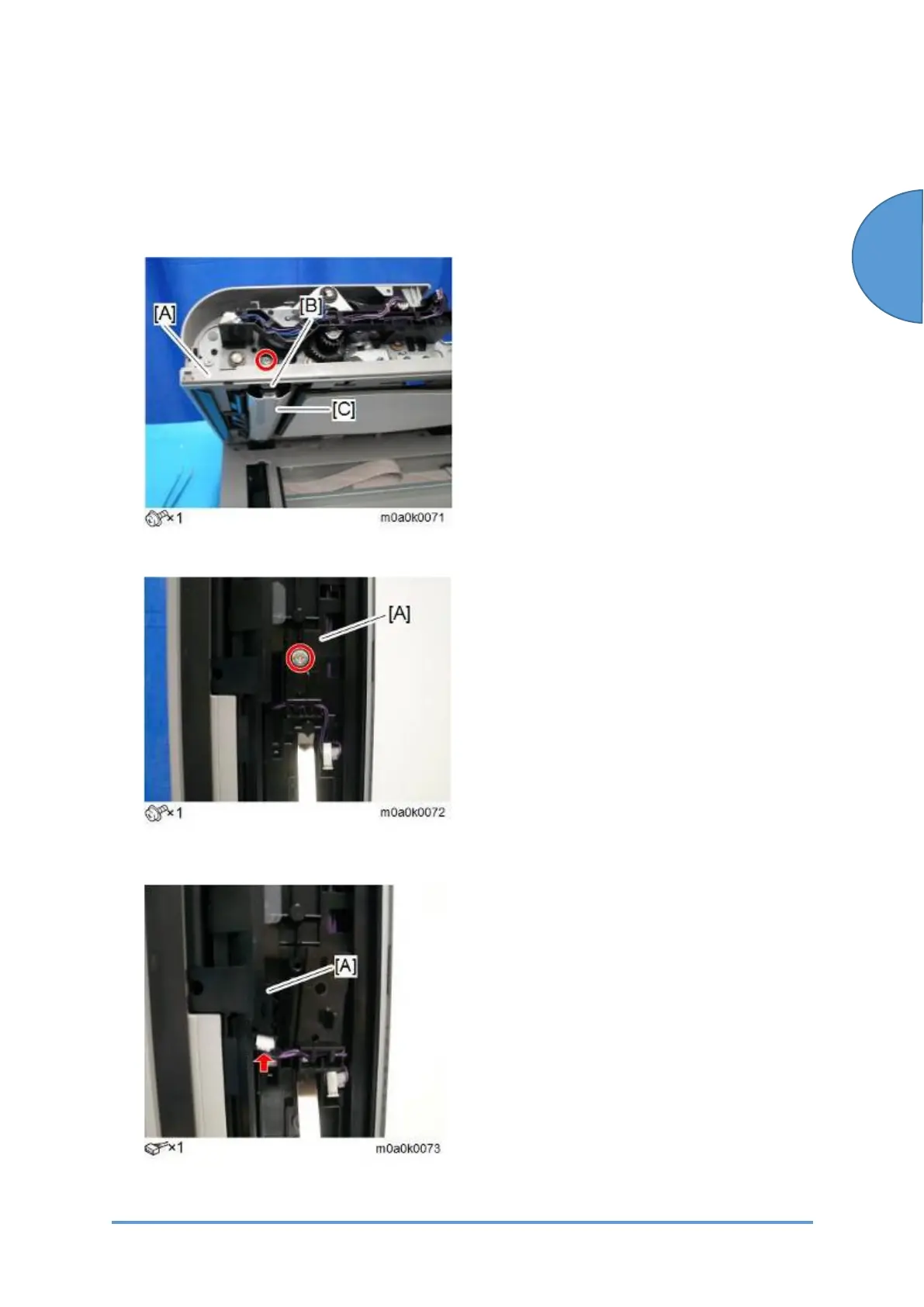

1. Remove the ADF front cover. (ADF Front Cover)
2. Open the ADF [A].
3. Slide the hook [B], and then remove Scanning guide plate (front side) [C].
4. Remove the ADF registration sensor holder [A].
5. Remove the ADF registration sensor (S24) [A] from the holder.
