Paper Exit
D0CA/D0C9/D0C8/D0CB 4-196 SM

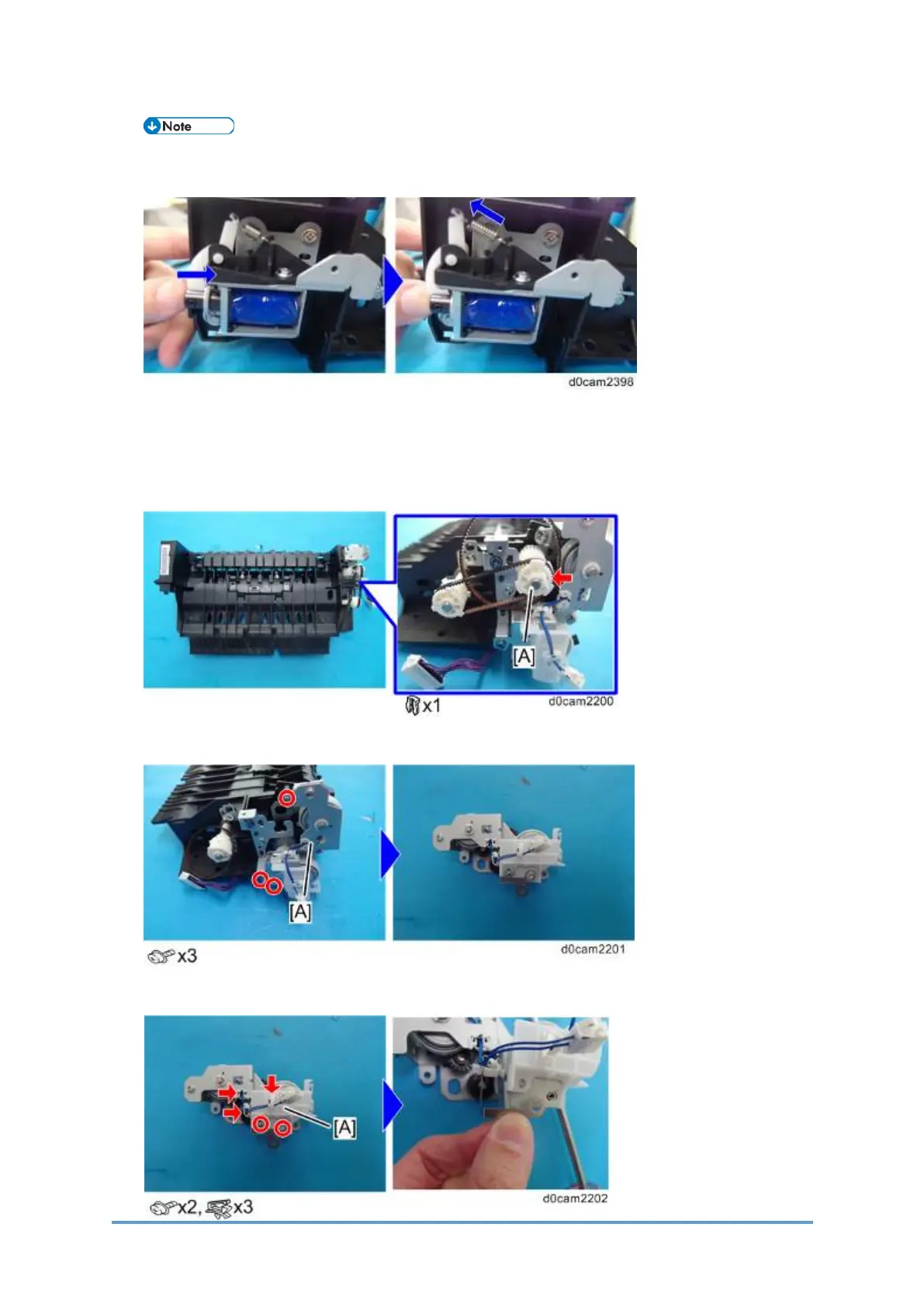

When reattaching the junction gate solenoid (SOL1), make sure that the solenoid works in
conjunction with the exit junction gate.
Paper Exit Clutch (CL3), Reverse Clutch (CL2)
1. Remove the paper exit unit. (Paper Exit Unit)
2. Remove the gear [A].
3. Remove the bracket [A] with the paper exit clutch (CL3) and reverse clutch (CL2).
4. Remove the cover [A] from the bracket.
