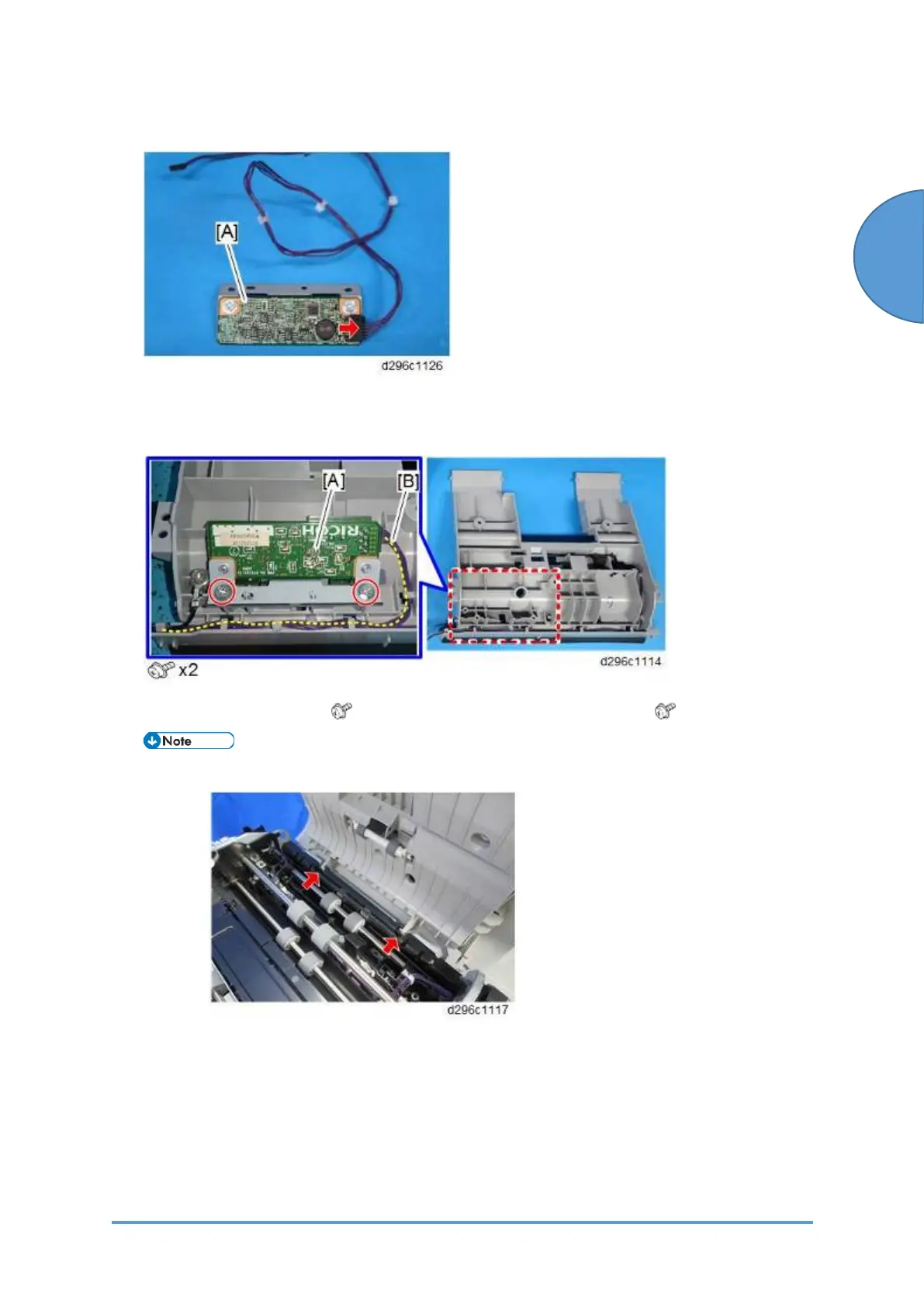

5. Connect the long harness to the double-feed sensor (URRB) (PCB15) [A].
6. Attach the double-feed sensor (URRB) (PCB15) [A]. (Tapping screw: 3x10)
7. Route the harnesses [B].
8. Reattach the inner cover ( x5), and then reattach the ADF top cover ( x1).
• Make sure the ADF top cover is set correctly so that the two tabs fit into the holes.
