Dehumidification Heater (main unit)
SM 2-119 D0CA/D0C9/D0C8/D0CB

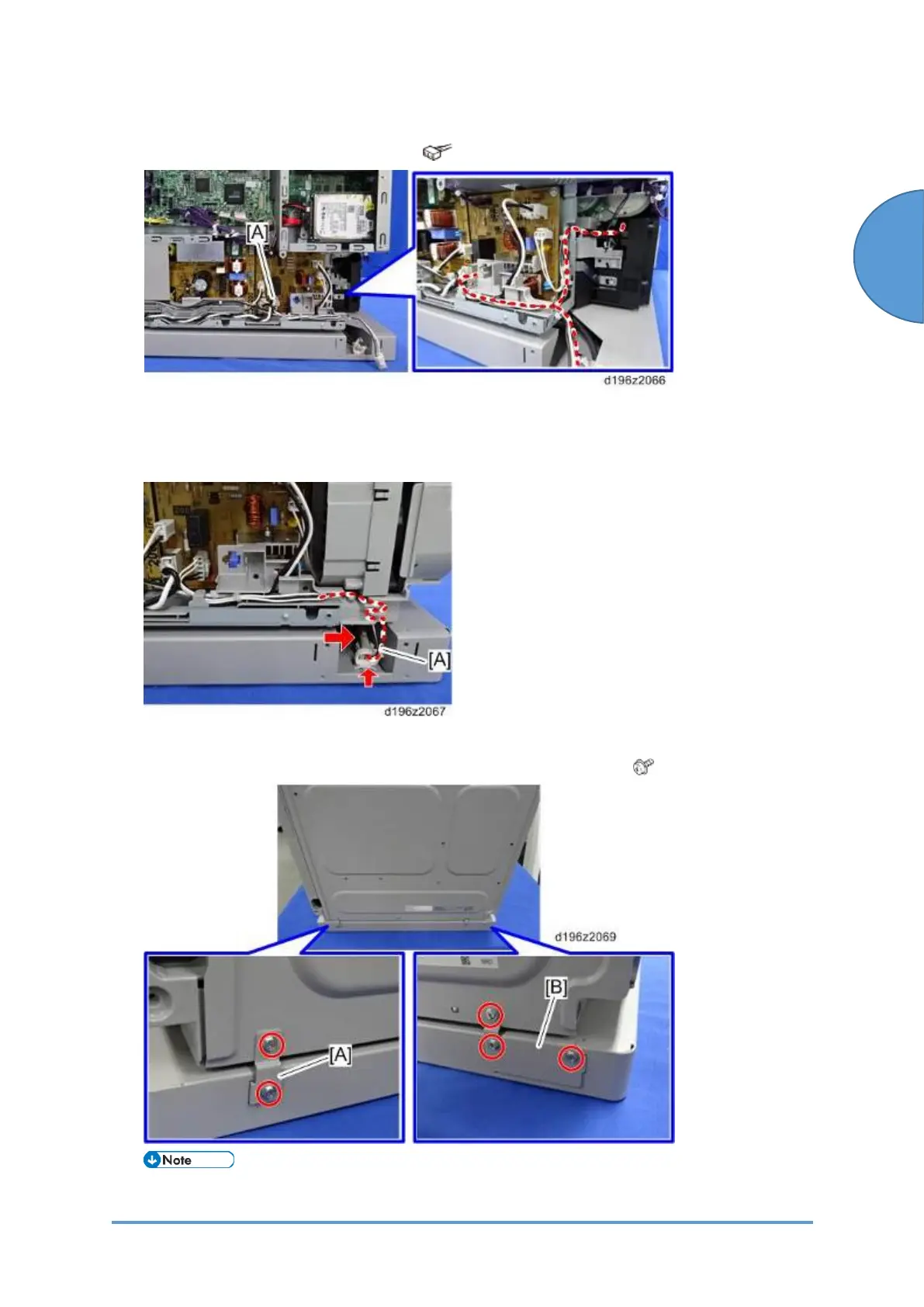

16. Connect the connector to CN600 [A] on the PSU (PCB17) and route the junction harness
along the red dotted line in the photo. (
× 1)
17. Attach the PSU exhaust fan (FAN4).
18. Connect the junction harness [A] to the heater harness and route the junction harness
along the red dotted line in the photo.
19. Attach the rear cover.
20. Attach the two securing brackets [A] [B] at the rear of the machine. ( × 5)
• Use the screws which are holding the rear cover.
To Next Page
