Dehumidification Heater (main unit)
D0CA/D0C9/D0C8/D0CB 2-118 SM

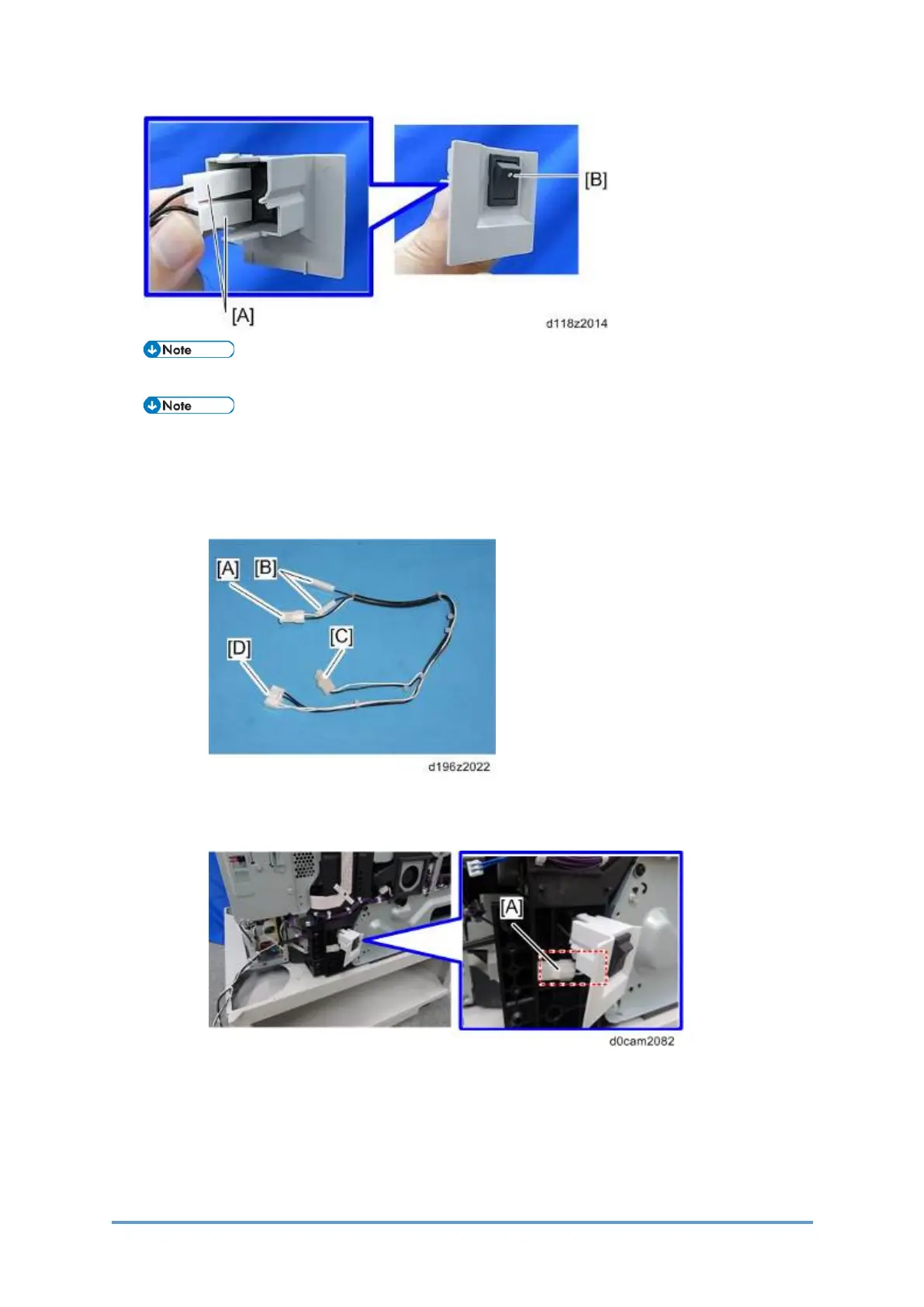

Attach the rocker switch so that the white point [B] is on the upper side of the switch.
• A:Not used (For the drum heater: If installing the anti-condensation heater (H1))
• B:For the locker switch
• C:For the heater harness
• D:For the PSU (PCB17) (CN600)
• Store the connector [A] into the area as shown below, then attach the switch
cover.
