1-Bin Tray BN1040 (D574-59)
D0CA/D0C9/D0C8/D0CB 2-78 SM

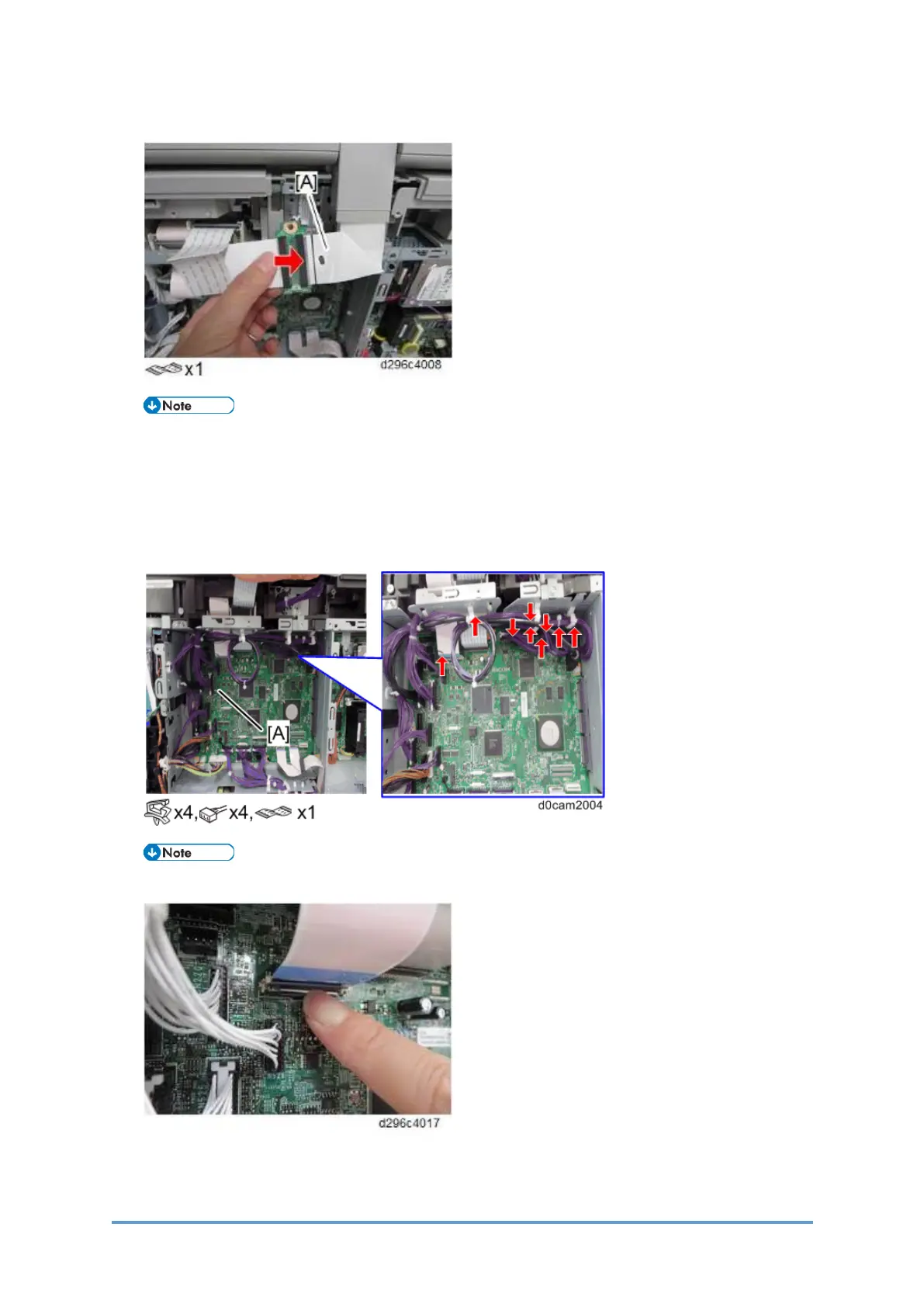

9. Disconnect the FFC [A] from the relay board (PCB12).
Disconnect the FFC for the relay board (PCB12) while pulling it out straight, because it
does not have a lock mechanism.
10. Remove the harnesses and FFC from the scanner unit on the BiCU (PCB1) [A].
When lifting the scanner unit, move the harnesses out of the frame so that they do not
interfere.
Disconnect the scanner FFC for the BiCU (PCB1) while pressing the lock release button.
To Next Page
