1-Bin Tray BN1040 (D574-59)
SM 2-83 D0CA/D0C9/D0C8/D0CB

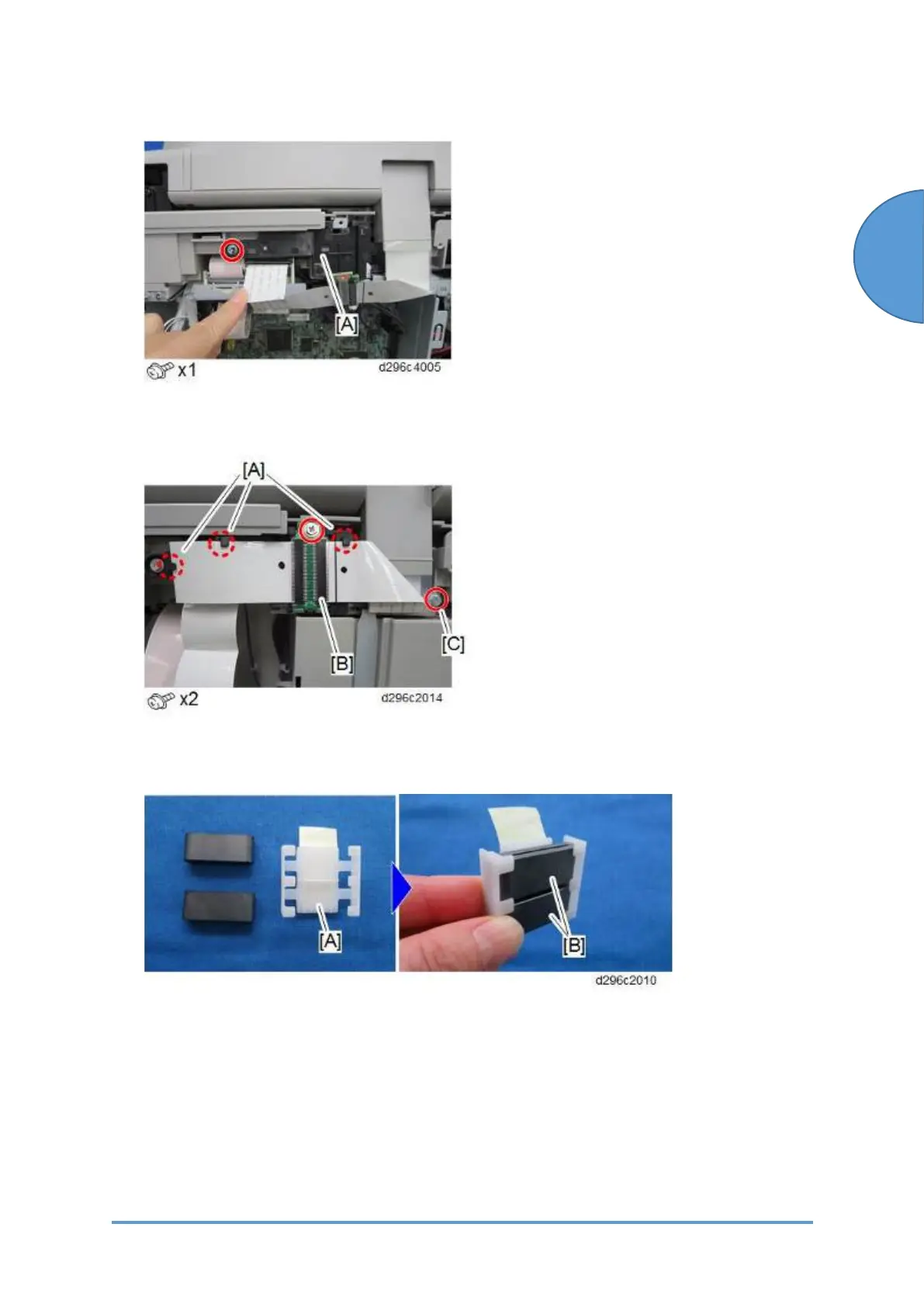

9. Attach the FFC fixing bracket [A].
10. Attach the relay board (PCB12) [B] with the three hooks [A] on the FFC fixing bracket.
11. Attach the FFC with the screw [C].
12. Set two ferrite cores [B] in the ferrite core holder [A] included in this kit.
13. Route the FFC of the scanner unit through the two ferrite cores in step 13.
Align the ferrite core holder [A] with the reference ribs on the back of the unit, and attach it
with double-sided tape.
