ADF
SM 4-65 D0CA/D0C9/D0C8/D0CB
&
Adjustment

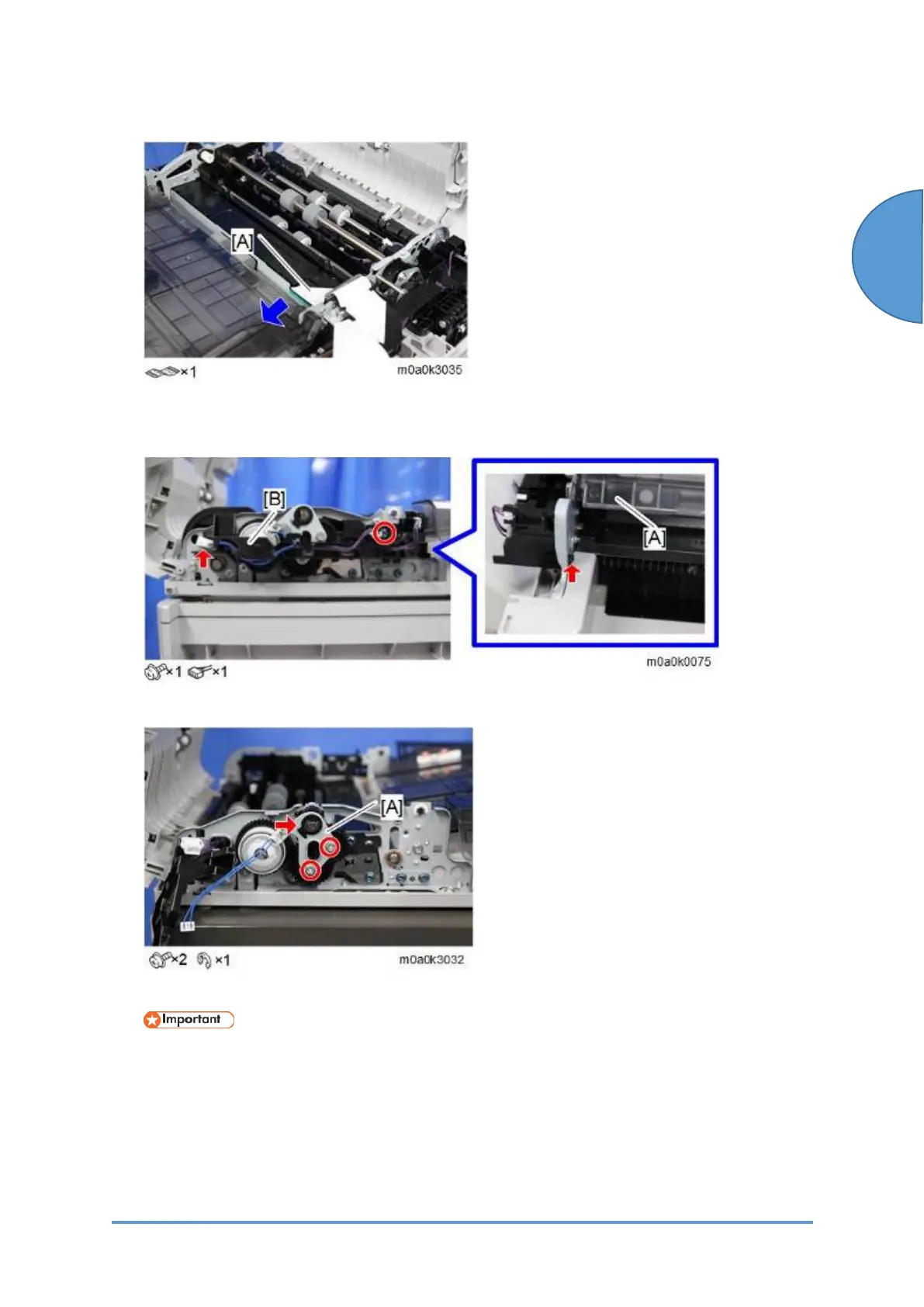

3. Disconnect the FFC [A].
4. Release the hook while swinging up the original tray [A], and then remove the harness
guide [B].
5. Remove the gear bracket [A].
6. Remove the two gears [A].
Do not remove the gear [B], to prevent the inner pin [C] from dropping into the machine.
