Scanner
SM 4-75 D0CA/D0C9/D0C8/D0CB
&
Adjustment

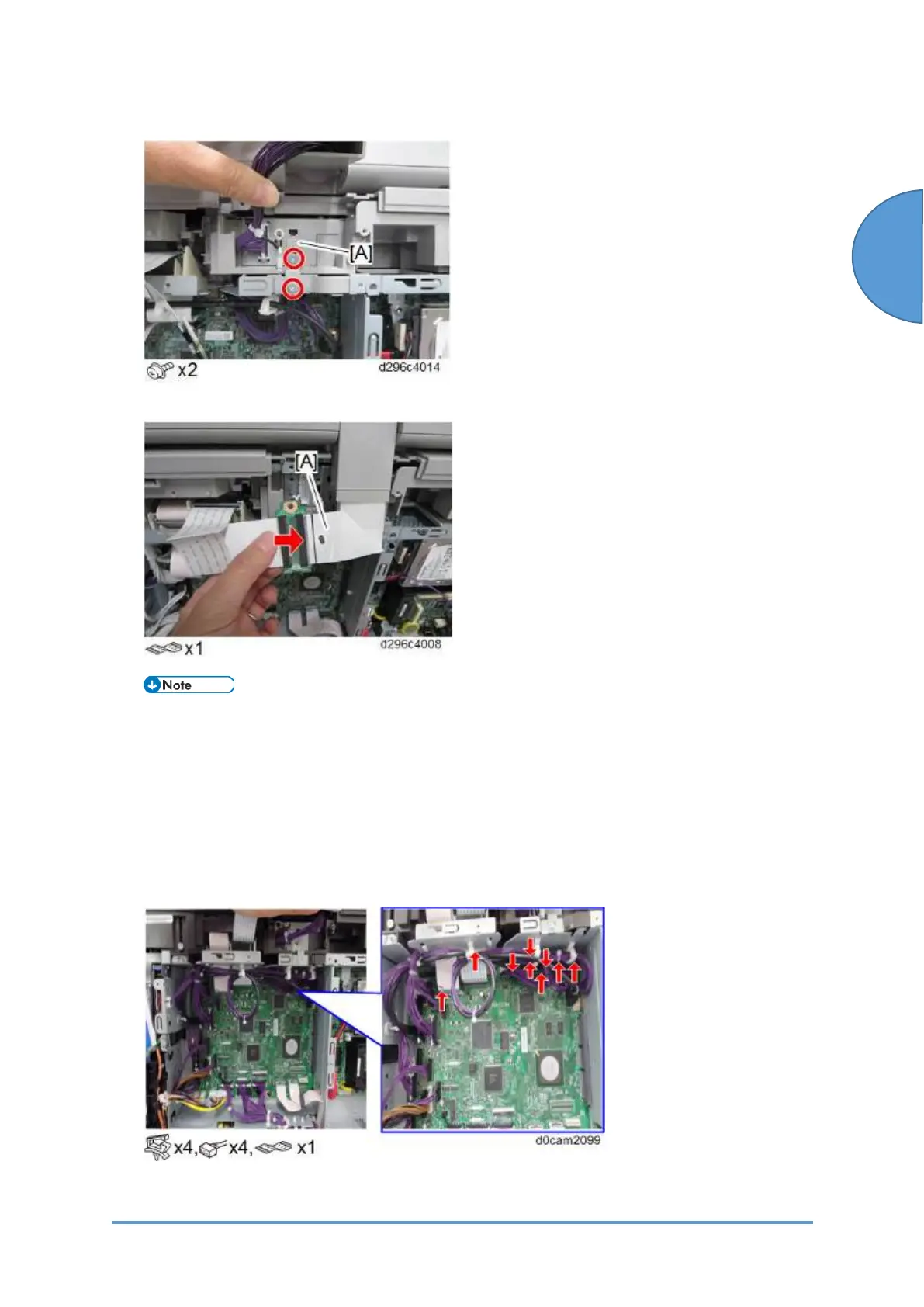

7. Remove the grounding plate [A].(This procedure is for IM C300 series/IM C400F)
8. Disconnect the FFC [A] from the relay board (PCB12).
Disconnect the FFC for relay board (PCB12) by pulling it out straight, because it does not
have a lock mechanism.
When reassembling, the FFC must be connected straight.
9. Disconnect the harnesses and FFC for the scanner unit.
When lifting the scanner unit, move the harnesses out of the frame so that they do not
interfere.
IM C300 series/IM C400F
