Ricoh IM C400F

Laser Optics
SM 4-109 D0CA/D0C9/D0C8/D0CB
Replacement
&
Adjustment
• Be sure to install the washer under the screw when assembling.

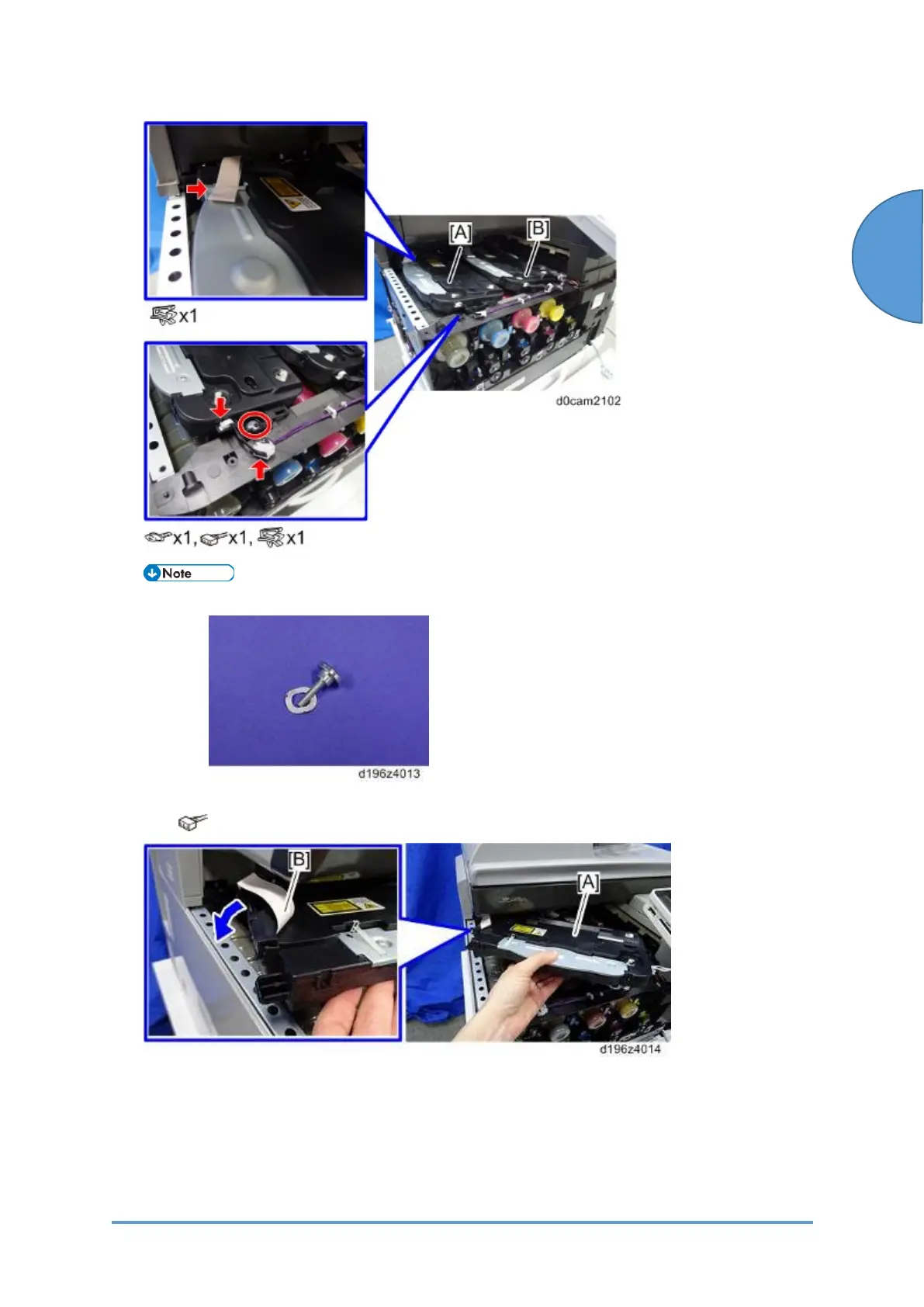

4. Pull the laser unit [A] out slightly, open the connector cover, and then disconnect the FFC
[B]. (
× 1)
