Electrical Component Defects
D0CA/D0C9/D0C8/D0CB 6-166 SM
Fuse
Name
Connector (Out) Capacity Voltage Part No. Part Name Replaceable
circuit in the PSU
(PCB17))
FU101 N/A (Protecting the
fusing circuit in the
PSU (PCB16))
15A 250V 11071241 TCL-15A-N4 Yes
FU103 CN600-4,5
(Anti-condensation
Heater (H1))
2A 250V 11071362 SCT2A No

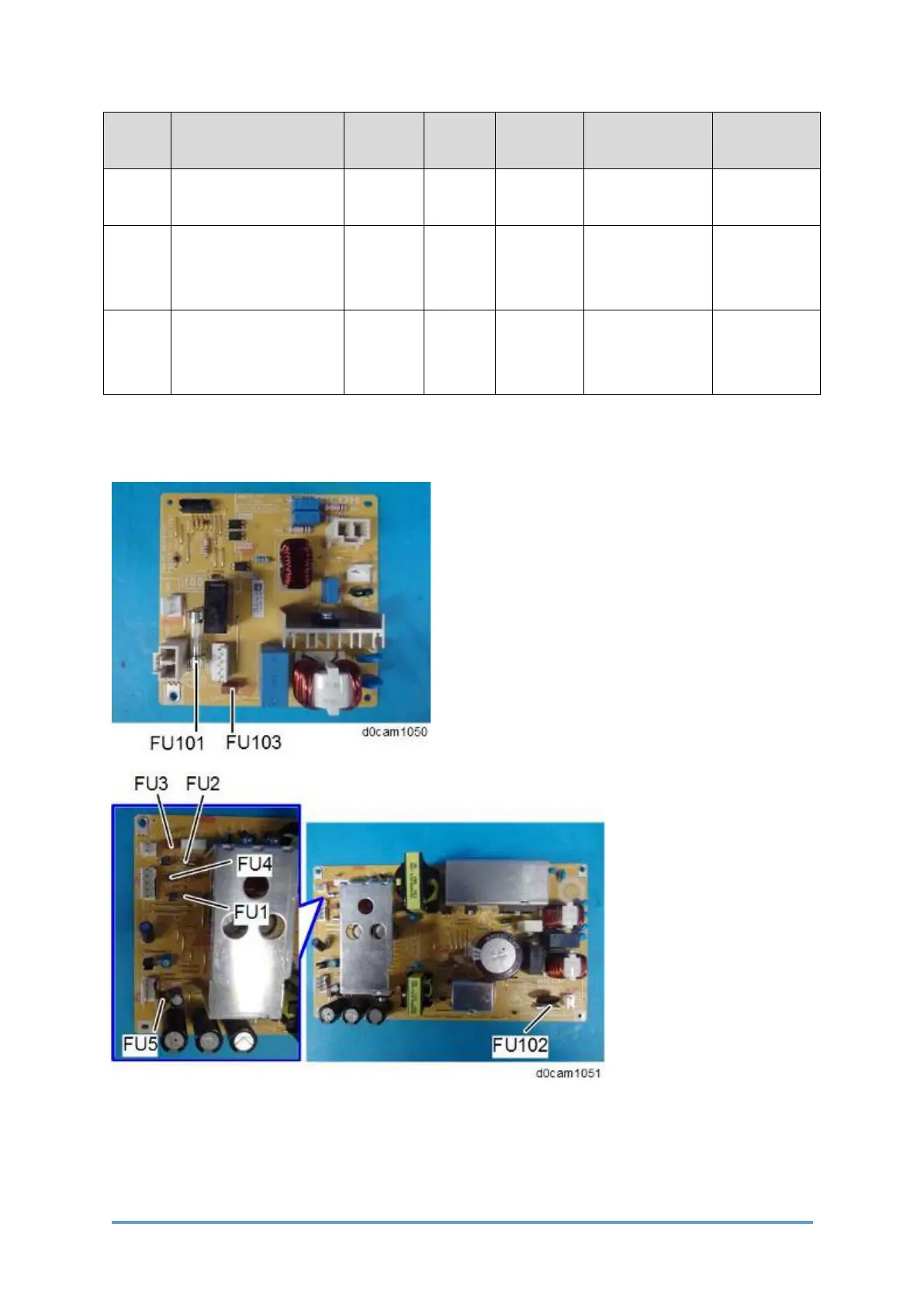

The photograph shows an example using the IM C300 series. The fuse position is the same for
the IM C400 series.
