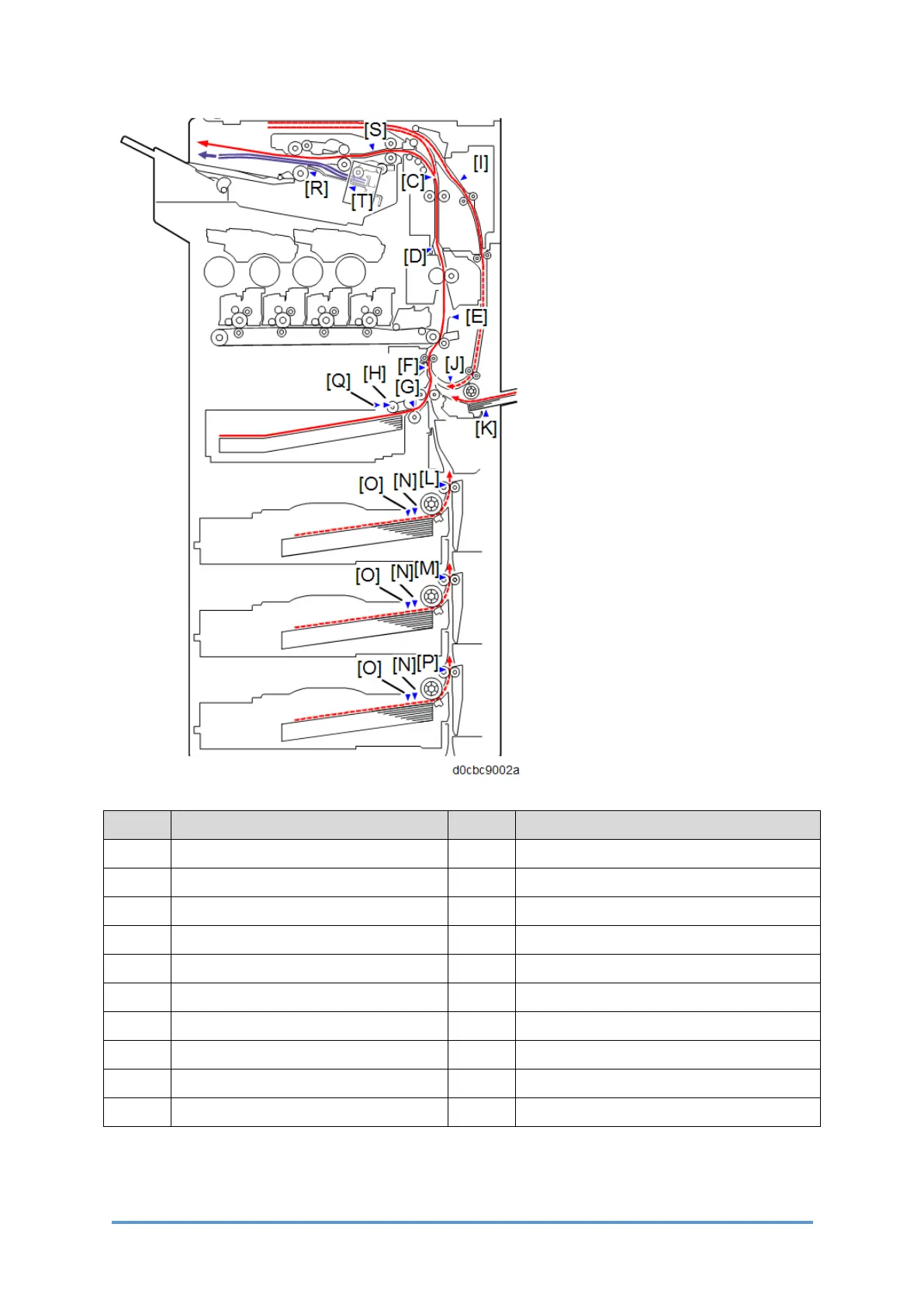

Jam Detection
D0CA/D0C9/D0C8/D0CB 6-174 SM
Callout Sensor Callout Sensor
[A] 1-Bin Tray Paper Remaining Sensor [K] Paper end sensor (bypass) (S6)
[B] 1-Bin Tray Exit Sensor [L] Paper transport sensor 1 (S1)
[C] Paper exit sensor (S7) [M] Paper transport sensor 2 (S1)
[D] Fusing exit sensor (S8) [N] Paper end sensor (S2)
[E] Fusing entrance sensor (S3) [O] Remaining paper sensor (S3)
[F] Registration sensor (S32) [P] Paper transport sensor 3 (S1)
[G] Paper feed sensor (S31) [Q] Tray paper end sensor (main unit) (S30)
[H] Tray lift sensor (S35) [R] Tray lower limit sensor
[I] Duplex entrance sensor (S1) [S] Entrance sensor (S45)
[J] Duplex exit sensor (S2) [T] Remaining paper sensor (S40)
