Machine Overview
D0CA/D0C9/D0C8/D0CB 7-10 SM
IM C400 series

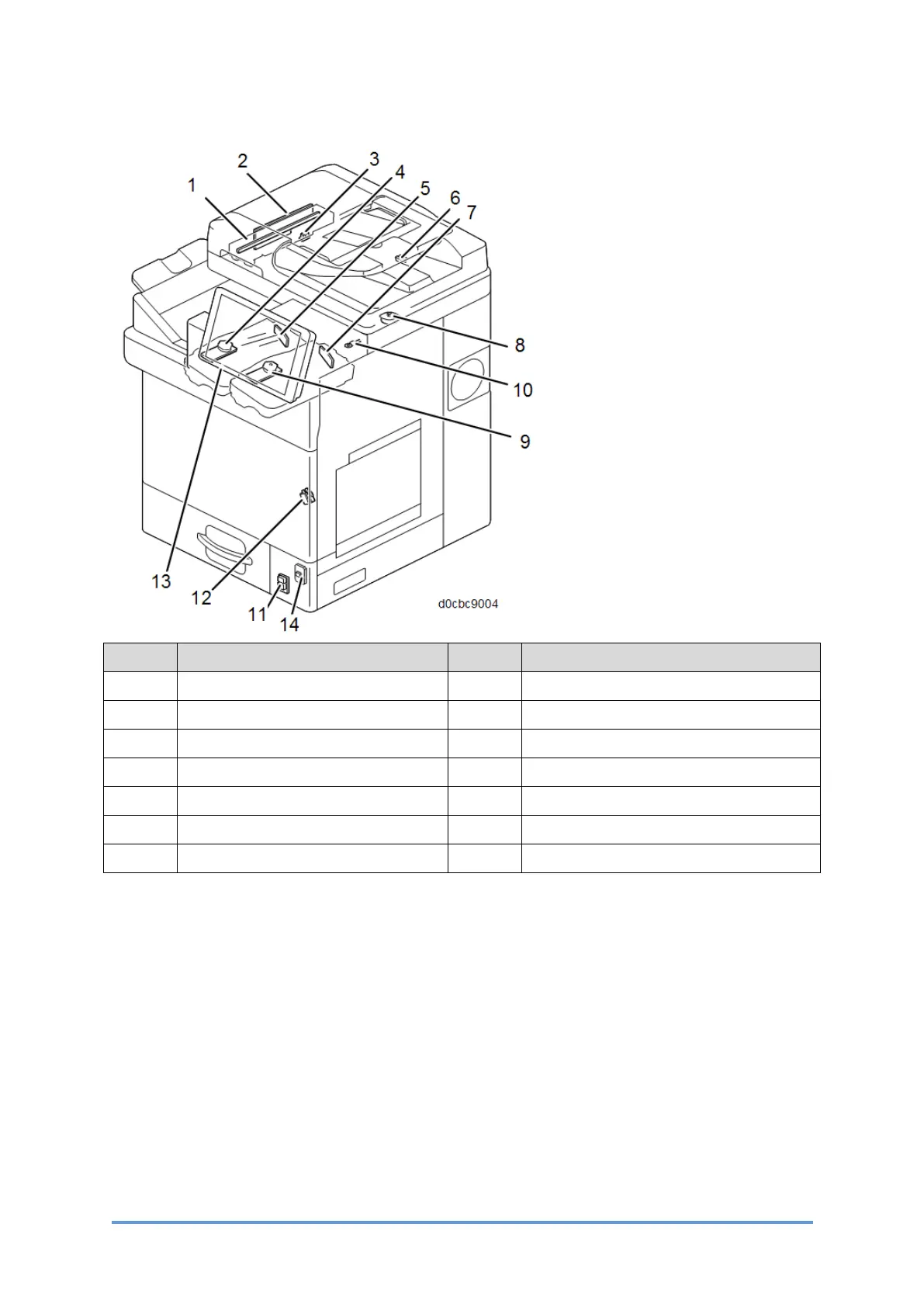

Callout Item Callout Item
1 Scanner Lamp 8 Scanner Motor (M7)
2 SBU (PCB11) 9 Polygon Mirror Motor (M/Y) (M6)
3 Scanner HP Sensor (S20) 10 Imaging Temperature Sensor (TH5)
4 Polygon Mirror Motor (K/C) (M5) 11 Temperature/humidity Sensor (S18)
5 LD Drive Board (K/C) (PCB8) 12 Interlock Switch
6 ADF Position Sensor (S19) 13 Operation Panel
7 LD Drive Board (M/Y) (PCB9) 14 Main Power Switch (SW1)
To Next Page
