Machine Overview
D0CA/D0C9/D0C8/D0CB 7-12 SM

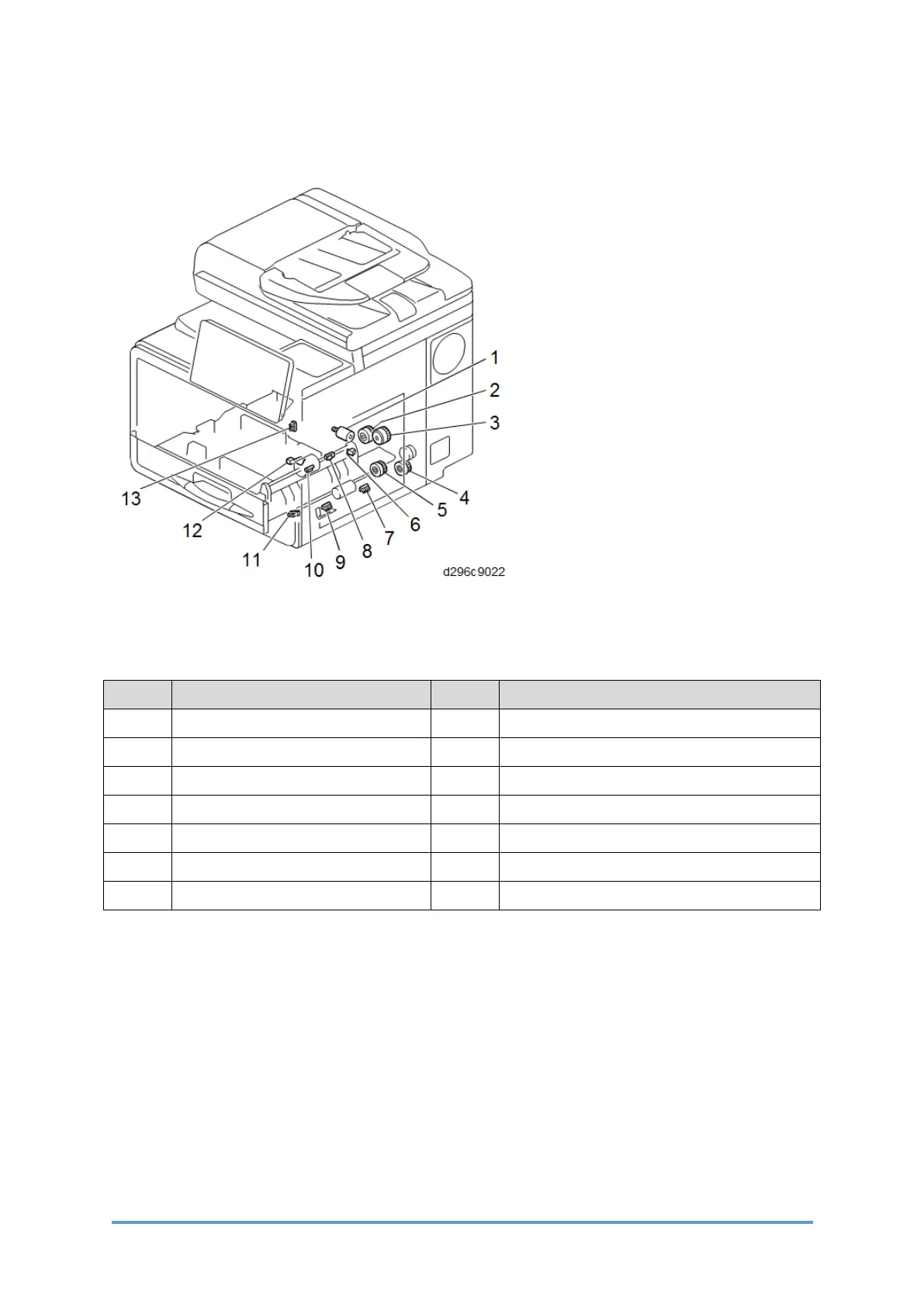

Paper Feed
IM C300 series
Callout Item Callout Item
1 Tray Lift Motor (M15) 8 Registration Sensor (S32)
2 Paper Feed Clutch (CL9) 9 Bypass Paper Width Sensor (S5)
3 Registration Clutch (CL8) 10 Paper Feed Sensor (S31)
4 Bypass Feed Clutch (CL7) 11 Bypass Tray Lift Sensor (S4)
5 Bypass Tray Lift Clutch (CL1) 12 Tray Paper End Sensor (Main Unit) (S30)
6 Tray Lift Sensor (S35) 13 Tray Set Sensor (S34)
7 Paper End Sensor (Bypass) (S6)
