Paper Feed and Registration (IM C400 Series)
SM 7-87 D0CA/D0C9/D0C8/D0CB

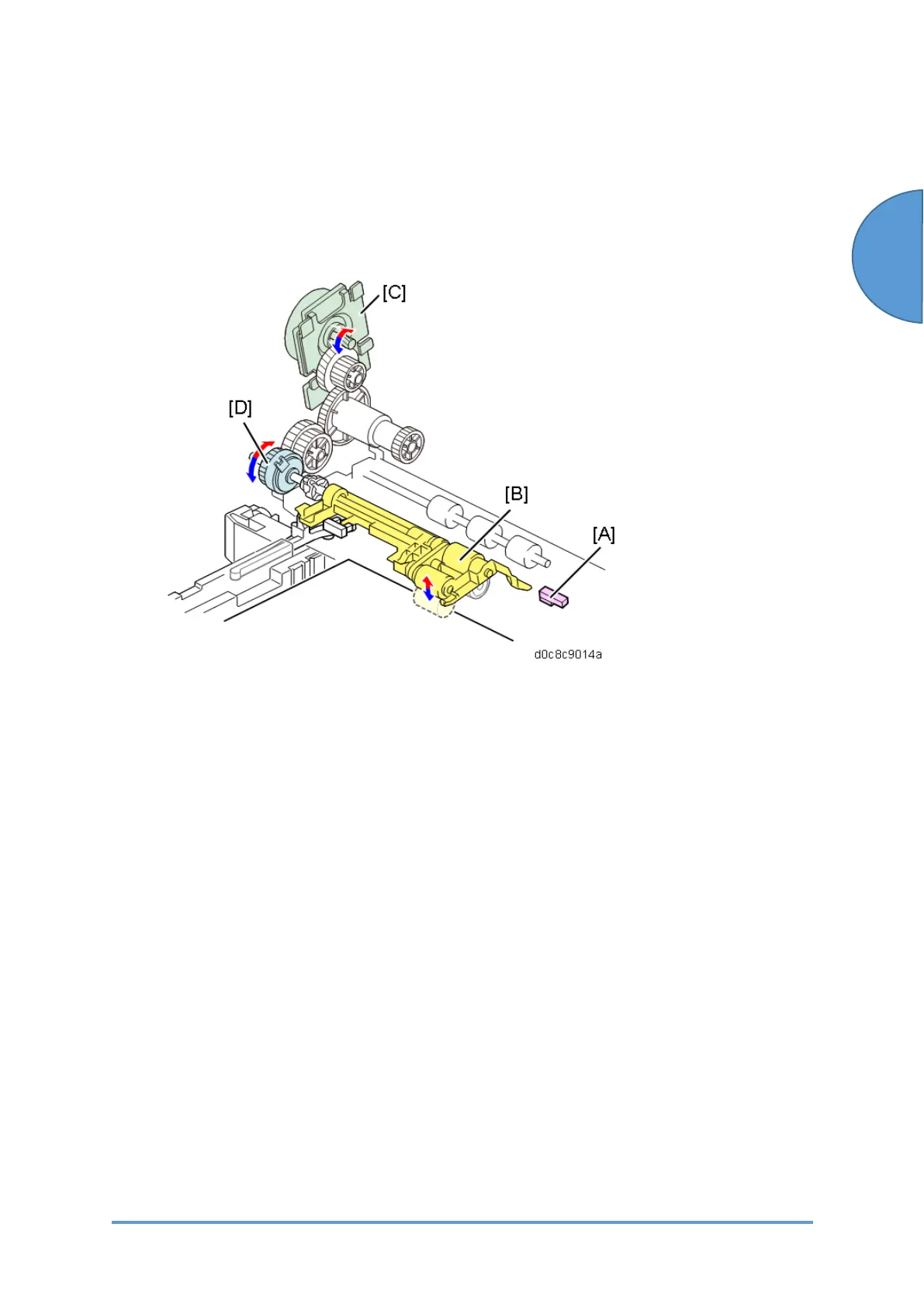

not been transported to the paper feed sensor position), the paper feed clutch (CL9) [D]
does not switch OFF, and pre-feed is performed. Pre-feed is as follows:
1.The second sheet is transported to the paper feed sensor (S31) [A] position.
2.When the leading edge of the second sheet reaches the paper feed sensor (S31) [A], the
paper feed clutch (CL9) [D] switches OFF.
3. When the first sheet is transported a predetermined distance by the downstream transport
roller, the paper feed clutch (CL9) [D] switches ON to supply the second sheet of paper.
4. The transported sheet is controlled so as not to be jammed by the paper feed sensor (S31)
[A].
