Machine Ventilation
SM 7-113 D0CA/D0C9/D0C8/D0CB
ions
IM C400SRF

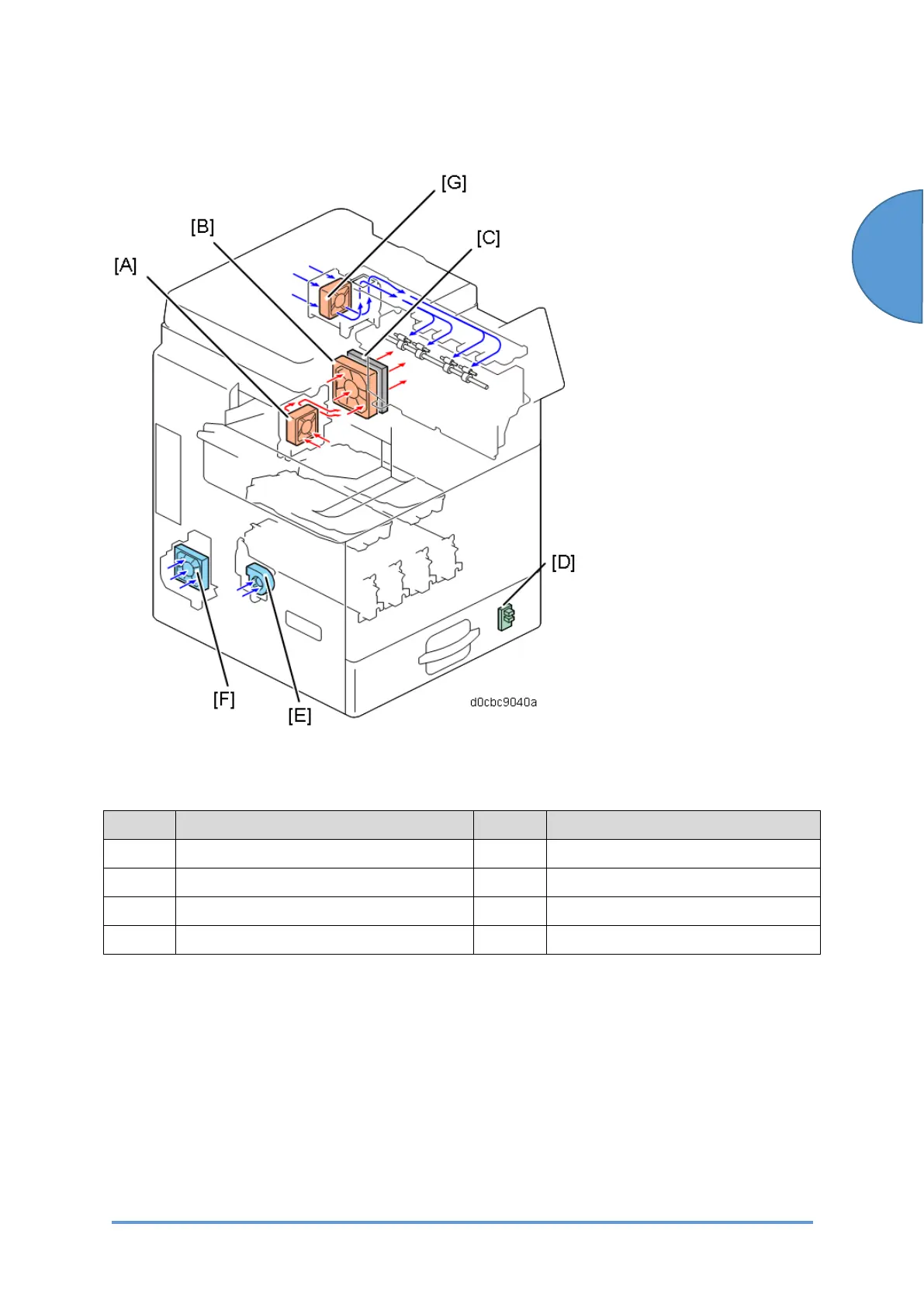

Callout Item Callout Item
[A] LD Unit Cooling Fan (FAN2) [E] PCDU Cooling Fan (FAN3)
[B] Fusing Unit Cooling Fan (FAN1) [F] PSU Exhaust Fan (FAN4)
[C] Ozone Filter [G] Paper Exit Exhaust Fan (FAN5)
*1
[D] Temperature/Humidity Sensor (S18) - -
*1 IM C400SRF only
The machine has four fans [A] [B] [E] [F] to ventilate the interior of the machine. There is a
temperature/humidity sensor (S18)[D] at the front (lower right) of the machine. The machine
takes in air from the left of the machine and exhausts it from the right of the machine after it
cools the machine interior.
The ozone filter [C] is installed at the right of the fusing unit cooling fan (FAN1), which helps
make it easier to replace the filter.
