Siemens Sinamics G120 Series - p2161[0...2] Min. threshold for freq. setp.; Setp.min.threshold; p2162[0...2] Hysteresis freq. for overspeed; Overspd. hyst.freq

Parameters
List of Parameters
1-224
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Minimum threshold value for comparing speed or frequency setpoint.
Description: Hysteresis speed (frequency) for overspeed-detection.

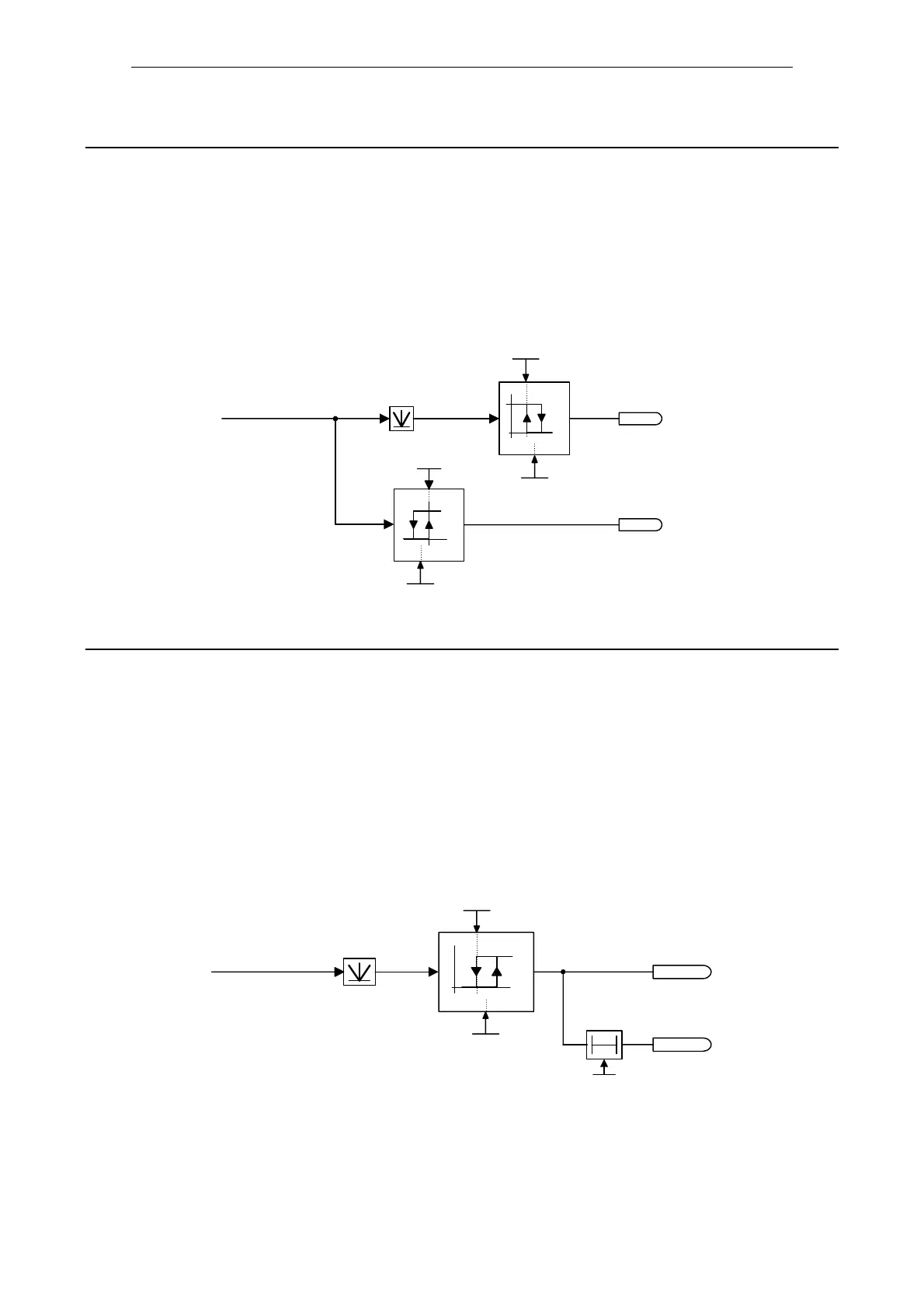

For vector control modes (P1300 = 20 or 22), the hysteresis acts above the max. frequency as illustrated in the dia-
gram below.
For v/f control modes (P1300 = 0 - 6), the hysteresis acts below the max. frequency.
p2161[0...2] Min. threshold for freq. setp. / Setp.min.threshold
Access level: 2 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Hz] 10.00 [Hz] 3.00 [Hz]
0
1
{
0
1
{
0
Setp.min.threshold
0.00 ... 10.00 [Hz]
p2161.D (3.00)
Hyst. freq. f_hys
0.00 ... 10.00 [Hz]
p2150.D (3.00)
Hyst. freq. f_hys
0.00 ... 10.00 [Hz]
p2150.D (3.00)
| f_set | <= P2161
| f_set | <= p2161
f_set > 0
f_set > 0
f_set
r2198 Bit04
r2198 Bit05
p2162[0...2] Hysteresis freq. for overspeed / Overspd. hyst.freq
CU240E Access level: 2 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Hz] 25.00 [Hz] 3.00 [Hz]
0
1
{
Max. frequency
0.00 ... 650.00 [Hz]
p1082.D (50.00)
Overspd. hyst.freq
0.00 ... 650.00 [Hz]
p2162.D (3.00)
f_act > f_max
f_act
f_act > f_max
r2197 Bit06
0T
f_act > f_max
r2197 Bit12
Delay time
0...10000 [ms]
P2152.D (200)
