Siemens Sinamics G120 Series User Manual

Parameters
List of Parameters
1-260
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: P2820[0], P2820[1] define inputs of OR 3 element, output is P2821.
Index: [0] = Binector input 0 (BI 0)
[1] = Binector input 1 (BI 1)
Dependency: P2801[5] is active level for the OR element.
Description: Output of OR 3 element.
Displays or logic of bits defined in P2820[0], P2820[1].
Dependency: P2801[5] is active level for the OR element.

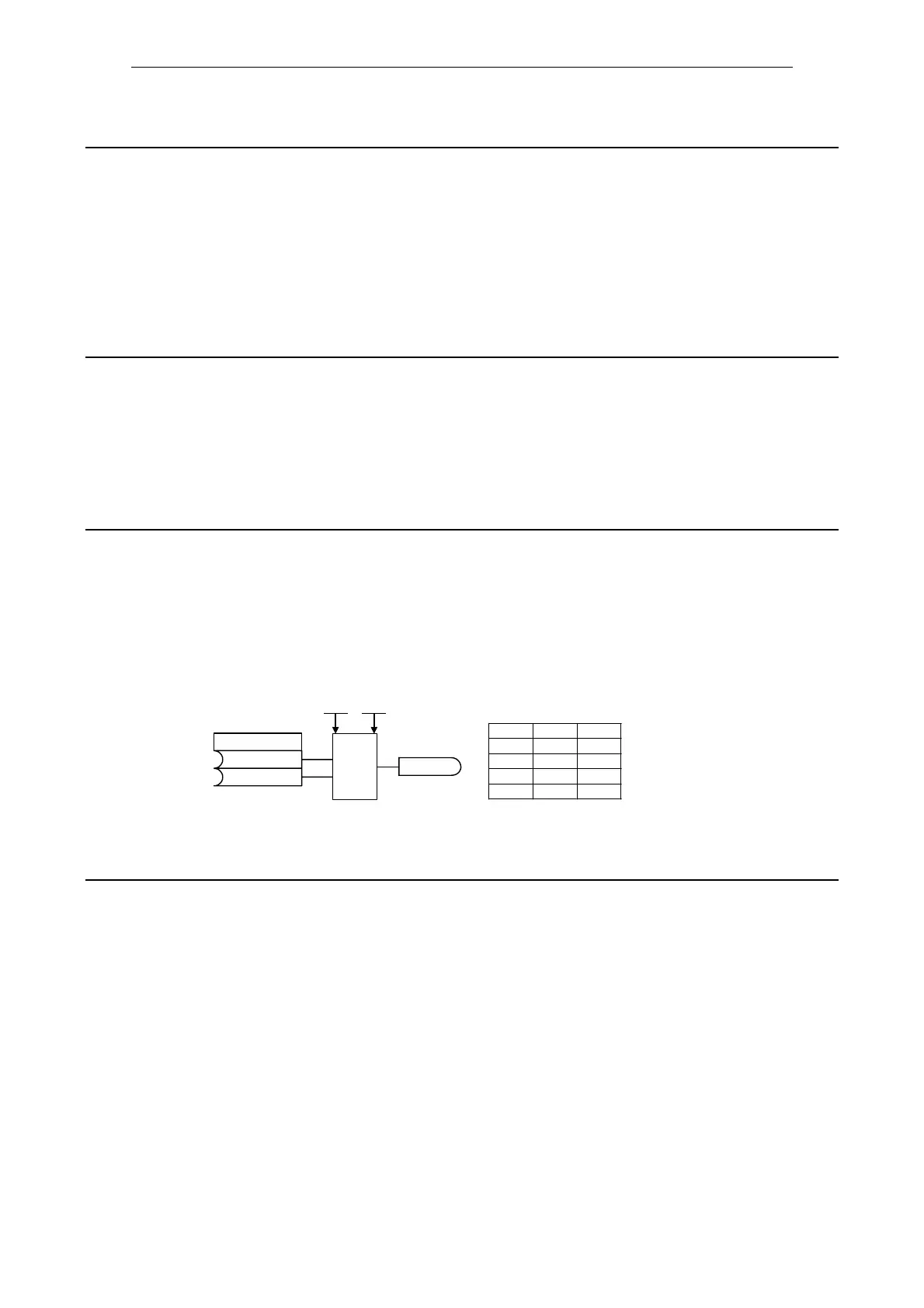

Description: P2822[0], P2822[1] define inputs of XOR 1 element, output is P2823.
Index: [0] = Binector input 0 (BI 0)
[1] = Binector input 1 (BI 1)
Dependency: P2801[6] is active level for the XOR element.
Description: Output of XOR 1 element.
Displays exclusive-or logic of bits defined in P2822[0], P2822[1].
Dependency: P2801[6] is active level for the XOR element.
p2820[0...1] BI: OR 3 / OR 3
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0
r2821.0 BO: OR 3 / OR 3
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -
p2822[0...1] BI: XOR 1 / XOR 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0
A
B
C
p2822
r2823
ABC
000
011
101
110
1
=
p2800
p2801[6]
Index0
Index1
r2823.0 BO: XOR 1 / XOR 1
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -

Siemens Sinamics G120 Series Specifications

General

Series	Sinamics G120
Protection Class	IP20
Communication Interfaces	PROFIBUS, PROFINET, USS, Modbus RTU
Safety Integrated	STO
Power Supply	24 V DC
Ambient Temperature	-10 to +50 °C (depending on the specific model)
Power Rating	0.37 kW to 250 kW
Storage Temperature Range	+70 °C
Relative Humidity	5% to 95% (non-condensing)
