Procedure

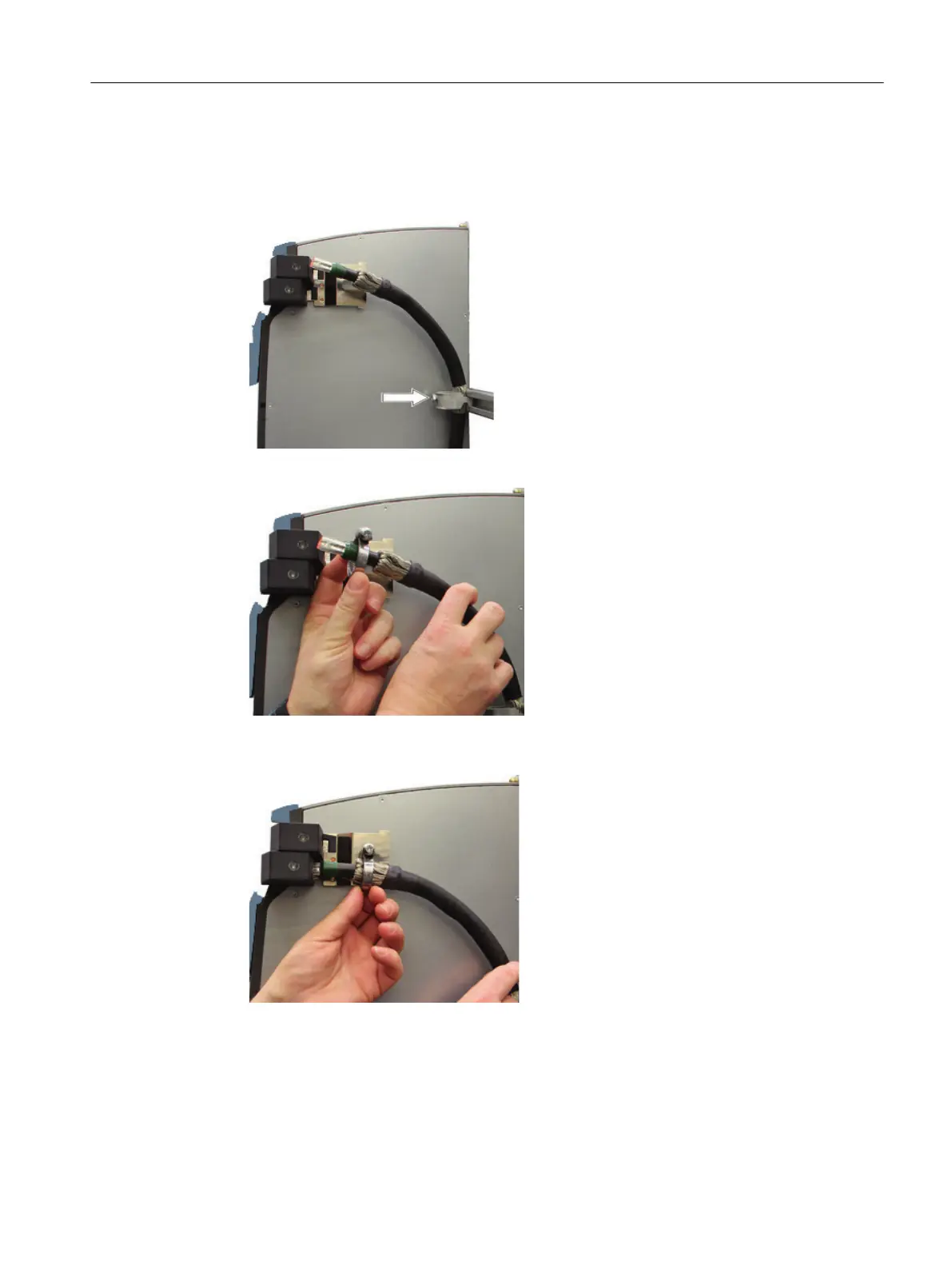

Proceed as follows to connect the cables to the DC link adapter and to connect the cable shields:
1. Fix the rst core of the cable to the mounting rail using a cable clamp.
2. Route the cable end through an appropriate hose clamp.
3. Attach the hose clamp to the shield support of the DC link adapter and slide the end of the
cable into the DCN connection of the DC link adapter (= lower connection).
Accessories
11.4DC link adapter
Booksize power units
Equipment Manual, 09/2023, A5E53307519B AA 307
