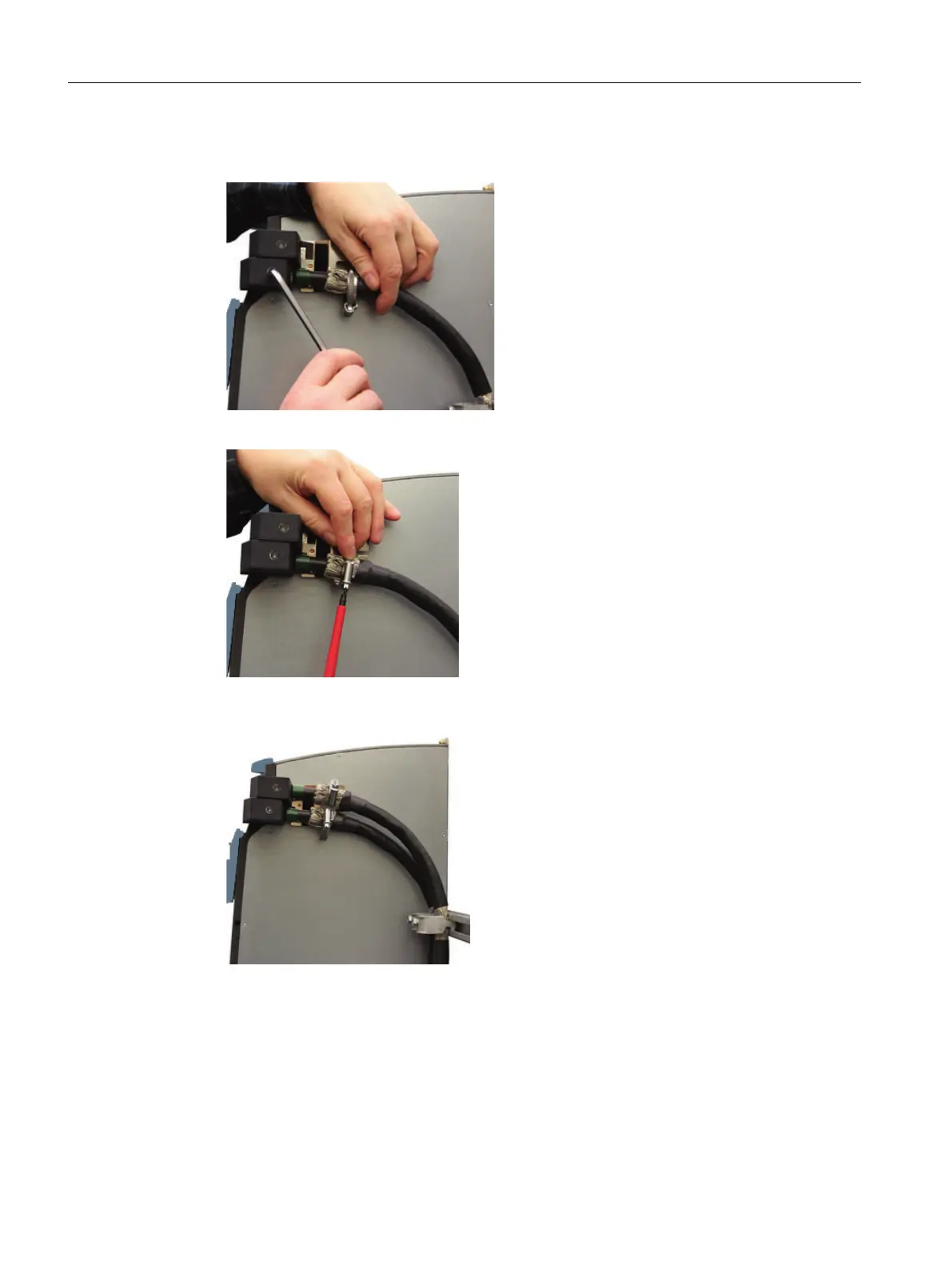

4. Attach the DC link connecting cable to the DC link adapter. Allen key size 6. Tightening
torque: 13Nm (115lbfin)
5. Tighten the screw of the hose clamp using a suitable tool.
6. Repeat steps 1 to 5, and in the same way attach the cable for the DCP connection of the DC
link adapter (= upper connection).
Accessories
11.4DC link adapter
Booksize power units
308 Equipment Manual, 09/2023, A5E53307519B AA
