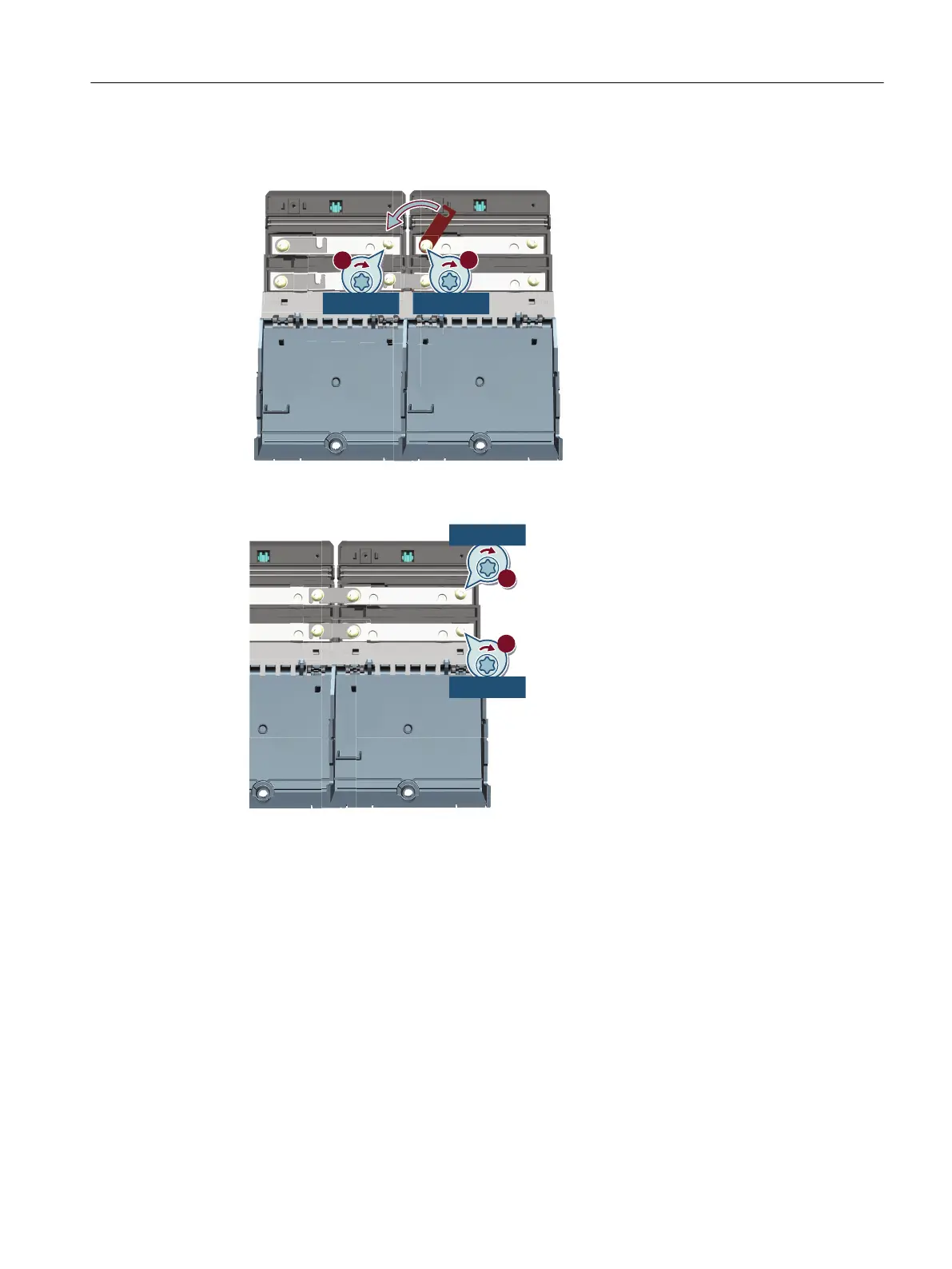

6. Tighten the DC link screws (M4 x 20) in the sequence shown in the diagram. Torx screwdriver
TX20. Tightening torque: 1.8Nm (15.9lbfin)

59
/NMCGJO

59
/NMCGJO
7. For the components arranged to the far right, tighten the DC link screws (M4x20). Torx
screwdriver TX20. Tightening torque: 1.8Nm (15.9lbfin)

59
/NMCGJO

59
/NMCGJO
8. Remove the black touch protection of the side covers at the connection positions.
9. Close the protective 󹪞aps until you hear them snap into place.
