VA Motion Controller Programming Manual

129

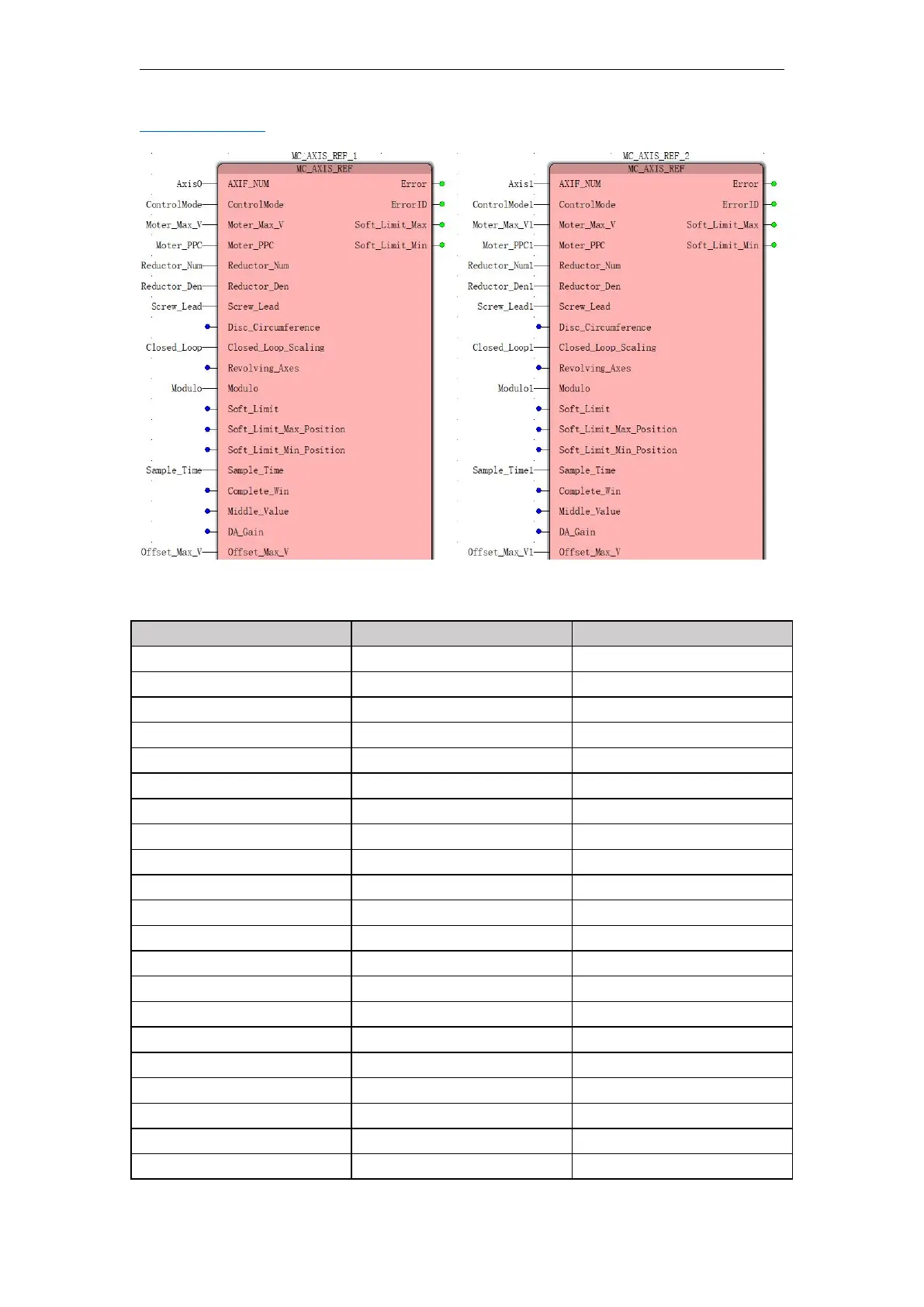

Parameter Setting ) . After the example is added , the following figure is shown ;

Variable name anDAttribute

variable name

type of data

Initial value

MC_AXIS_REF_1

MC_AXIS_REF

Axis0

USINT

ControlMode

INT

Moter_Max_V

DINT

3000

Moter_PPC

DINT

10000

Reductor_Num

LREAL

1.0

Reductor_Den

LREAL

1.0

Screw_Lead

LREAL

60.0

Closed_Loop

LREAL

1.0

Modulo

LREAL

3 60.0

Sample_Time

WORD

Offset_Max_V

DINT

200

MC_AXIS_REF_2

MC_AXIS_REF

Axis 1

USINT

ControlMode 1

INT

Moter_Max_V 1

DINT

3000

Moter_PPC 1

DINT

10000

Reductor_Num1

LREAL

1.0

Reductor_Den1

LREAL

1.0

Screw_Lead 1

LREAL

60.0

Closed_Loop 1

LREAL

1.0
