VA Motion Controller Programming Manual

299

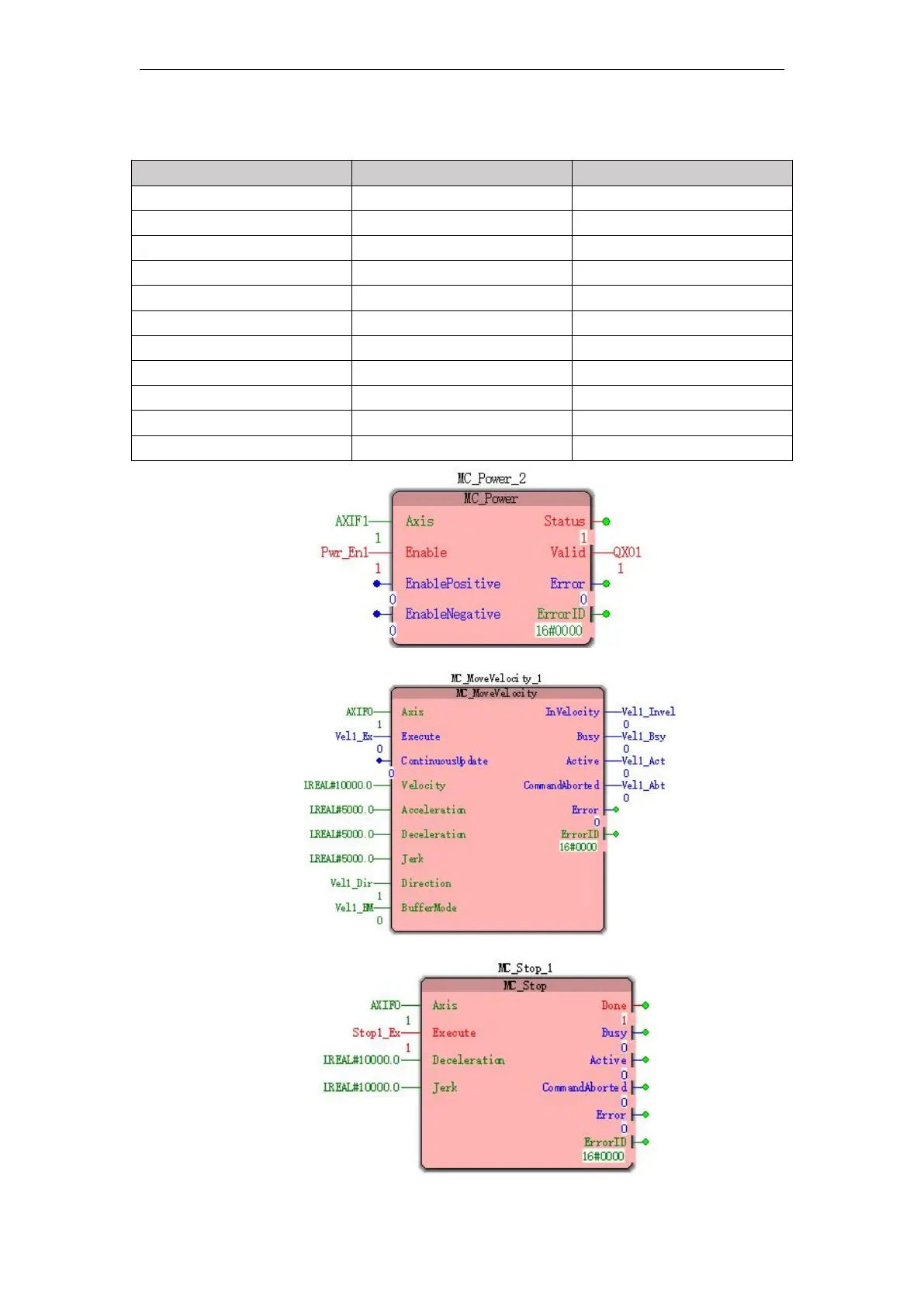

In the example below MC_MoveVelocity instruction execution time of the individual.

1、Variables and procedures

variable name

type of data

The initial value

MC_MoveVelocity1

MC_MoveVelocity

AXIF0

USINT

Vel1_Ex

BOOL

FALSE

Vel1_Dir

INT

Vel1_BM

INT

Vel1_Invel

BOOL

Vel1_Bsy

BOOL

Vel1_Act

BOOL

Vel_Abt

BOOL

MC_Stop1

MC_Stop

Stop_Ex

BOOL

FALSE
