 MC_MoveSuperimposed instruction is executed, and then execution

MC_HaltSuperimposed instruction, MC_MoveSuperimposed instruction was interrupted.

 This instruction does not affect the current state of the machine

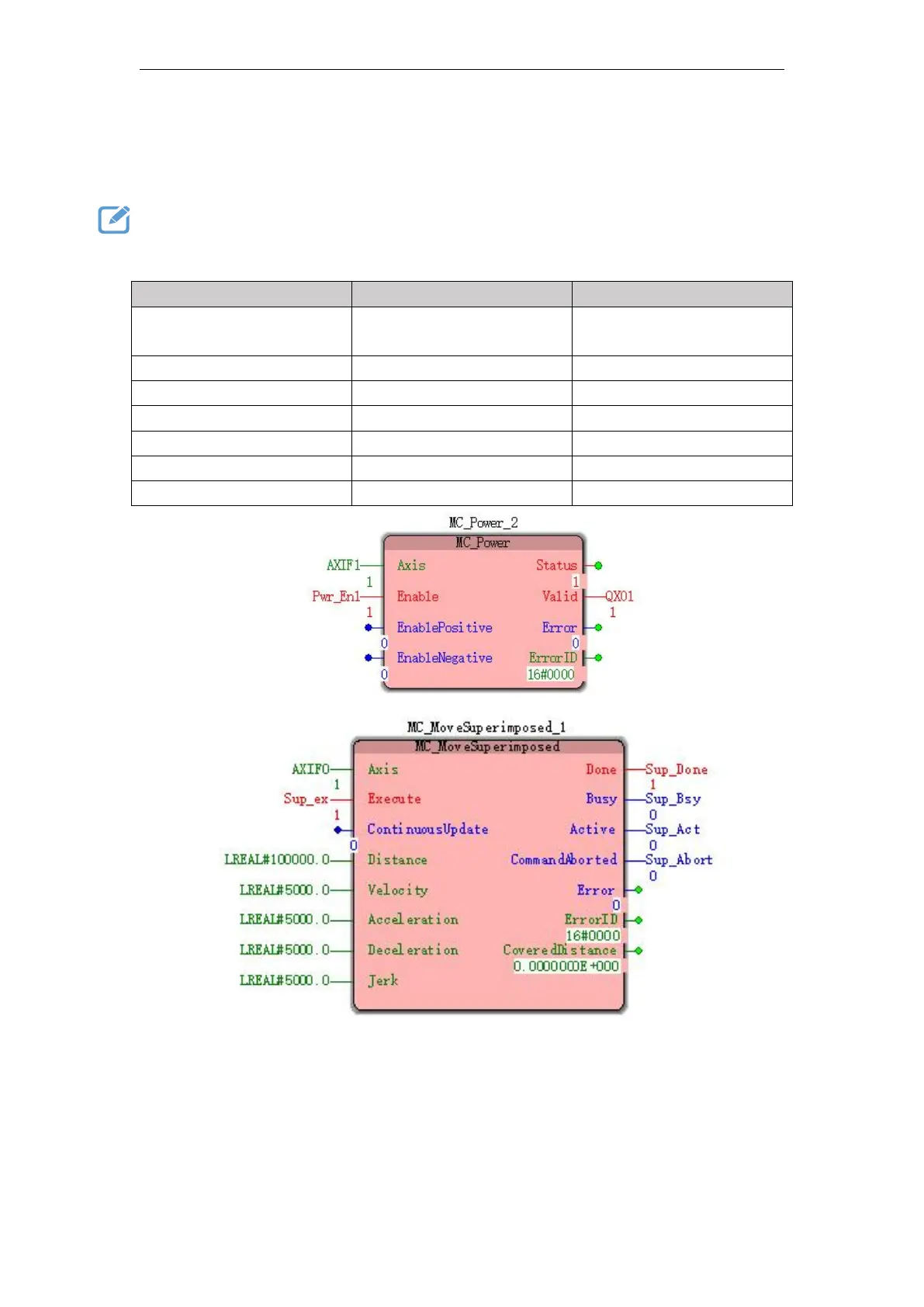

Examples of a program

Examples when a separate instruction is executed as follows MC_MoveSuperimposed

1, variables, and procedures

variable name

type of data

The initial value

MC_MoveSuperimposed

AXIF0

USINT

Sup_Ex

BOOL

FALSE

Sup_Done

BOOL

Sup_Bsy

BOOL

Sup_Act

BOOL

Sup_Abort

BOOL

2, Motion curve and timing diagram
