VA Motion Controller Programming Manual
395

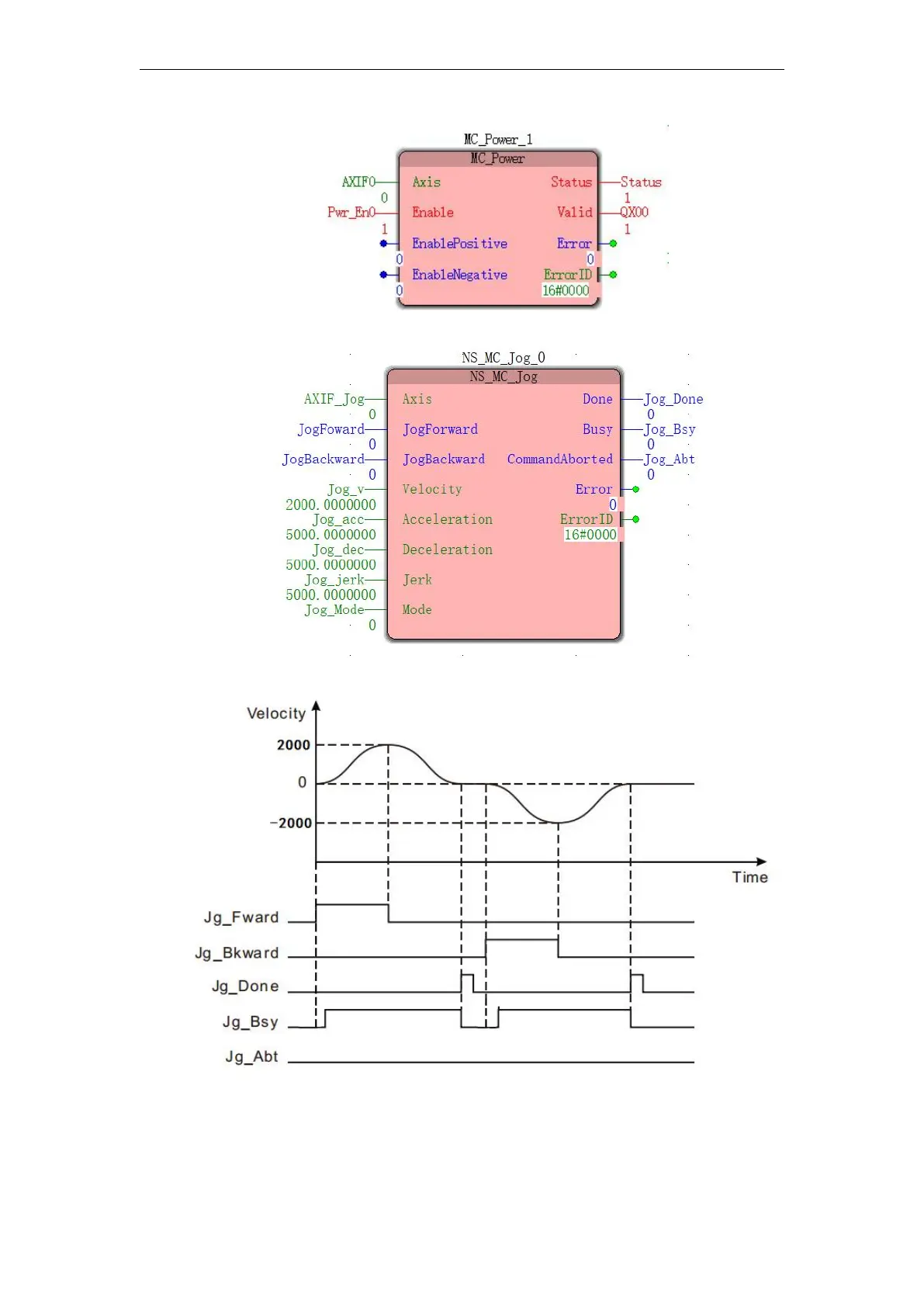

2 . The motion profile and timing diagrams
When the Jog_Forward NS_MC_Jog FALSE to TRUE to start execution instruction, after a
period of Jog_Bsy FALSE to TRUE, the axis movement in positive direction; FALSE to
TRUE to the Jog_Forward, the shaft begins to decelerate, when the deceleration is 0,
