VA Motion Controller Programming Manual
421
Function Description
This instruction is used to position two spindles adding or subtracting a value as the output
from the shaft position.Here is the location of the unit pulse.
This instruction synthetically divided into two: the addition or subtraction
Position change amount of the change amount and II One main spindle is added or
subtracted, the calculated value as an output shaft from a position change amount.

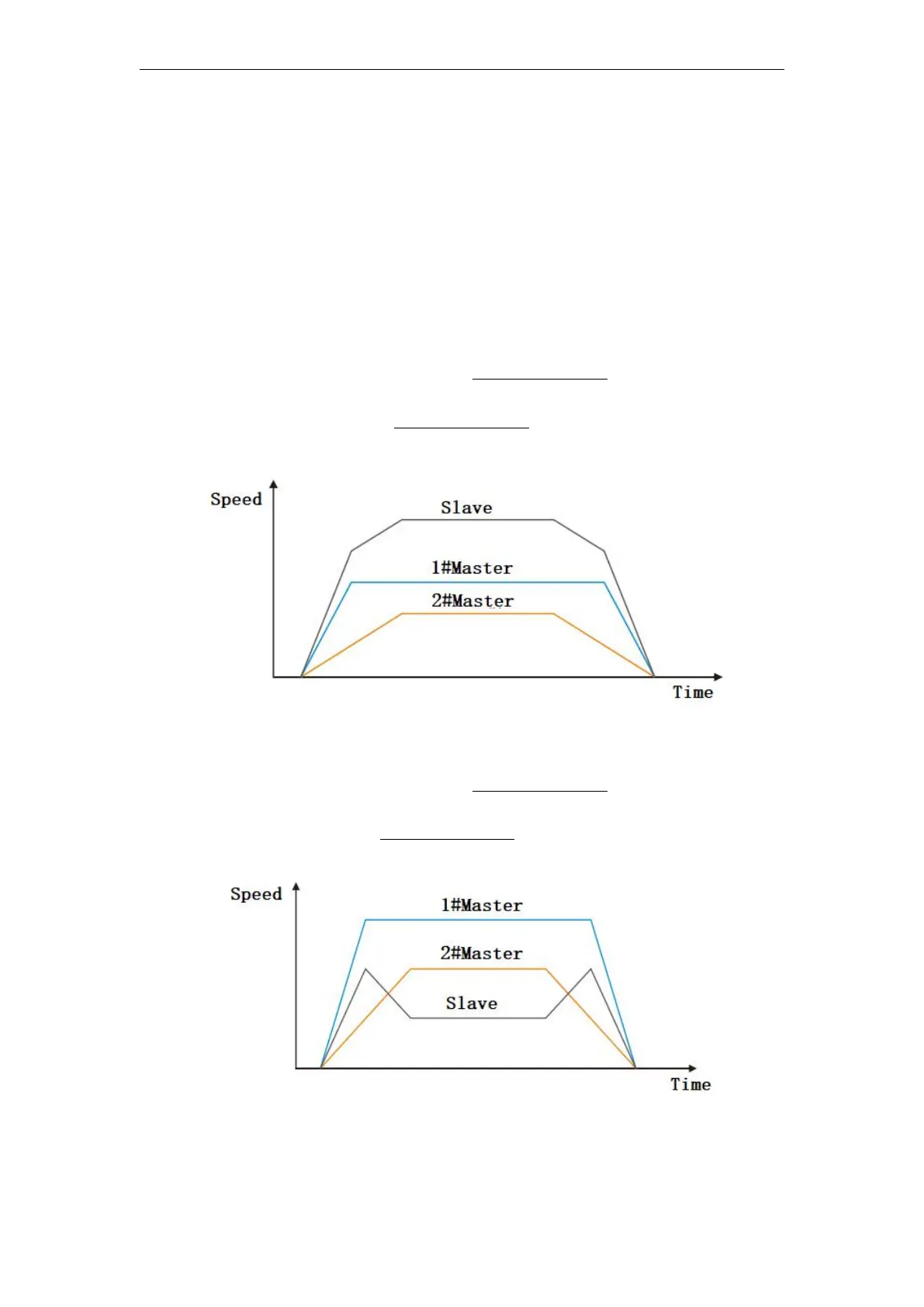

When the value is 0 CombineMode
When the value is 1 CombineMode
Mainshaft gear ratio numerator and denominator are adjusted to set the amount of
change of the two spindle positions factor using Equation supra.
Spindle synchronization source may be set to 0: position command; 1: the actual
