VA Motion Controller Programming Manual
66
a " step "
S003

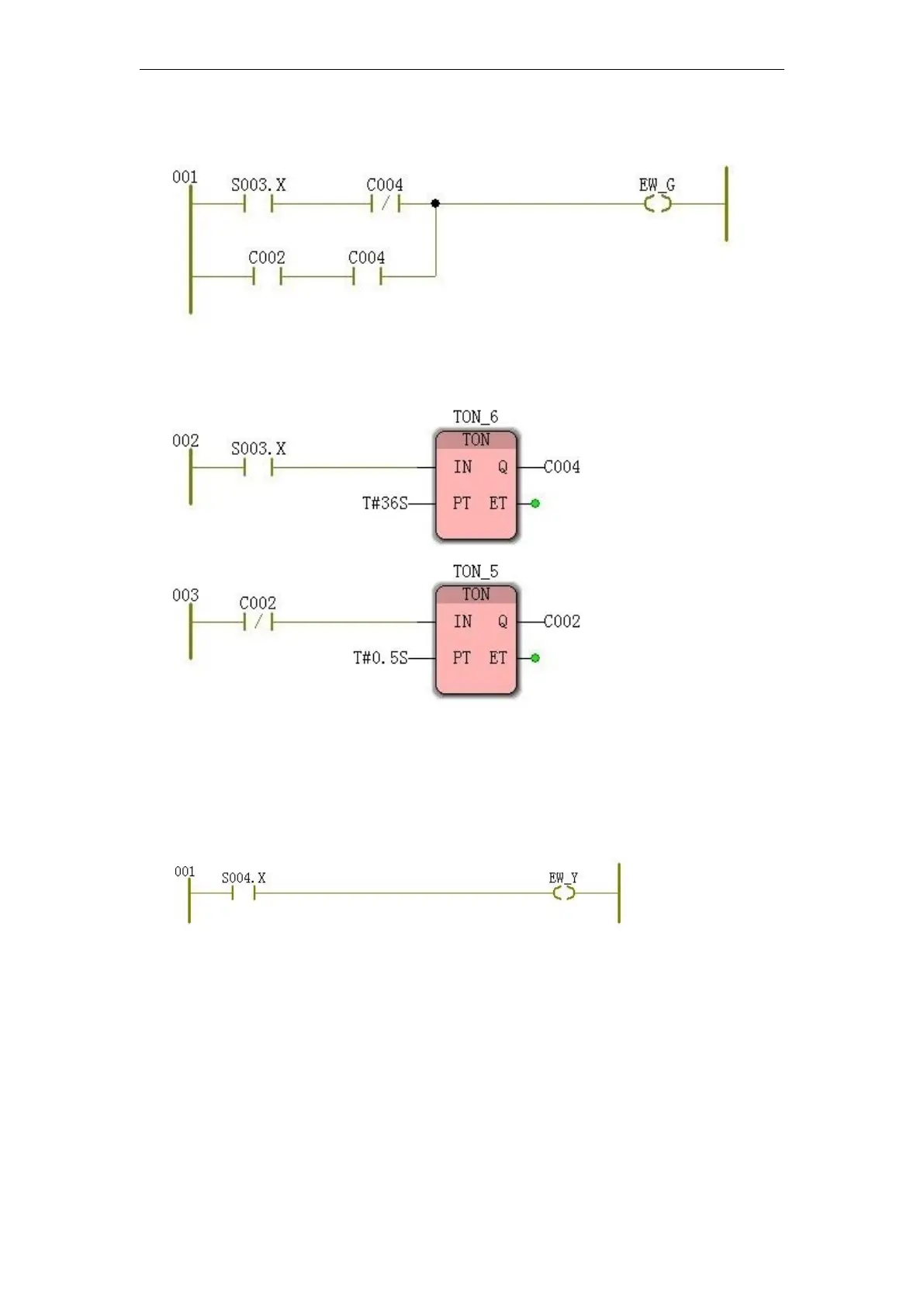

when activated green light east-west direction.
7
) Double-click the " stuff
_
yellow " enter 'things
_
yellow' operation programming, the
insertion procedure in the editing area, the coil
EW_Y
the
I / O
address : %
Q X- 0.2
, represents
a " step "
S004
activation things Directional Brightness Yellow light.
8 ) Double-click North-South _ Green Light to enter the programming
of North-South _ Green Light action . Insert the program in the editing area . The I/O address
of the coil SN_G is : %Q X 0. 3 , which means Step S005 is activated when the north-south
direction is green. Light up.
