RX Buffer Bypass
X-Ref Target - Figure 4-33

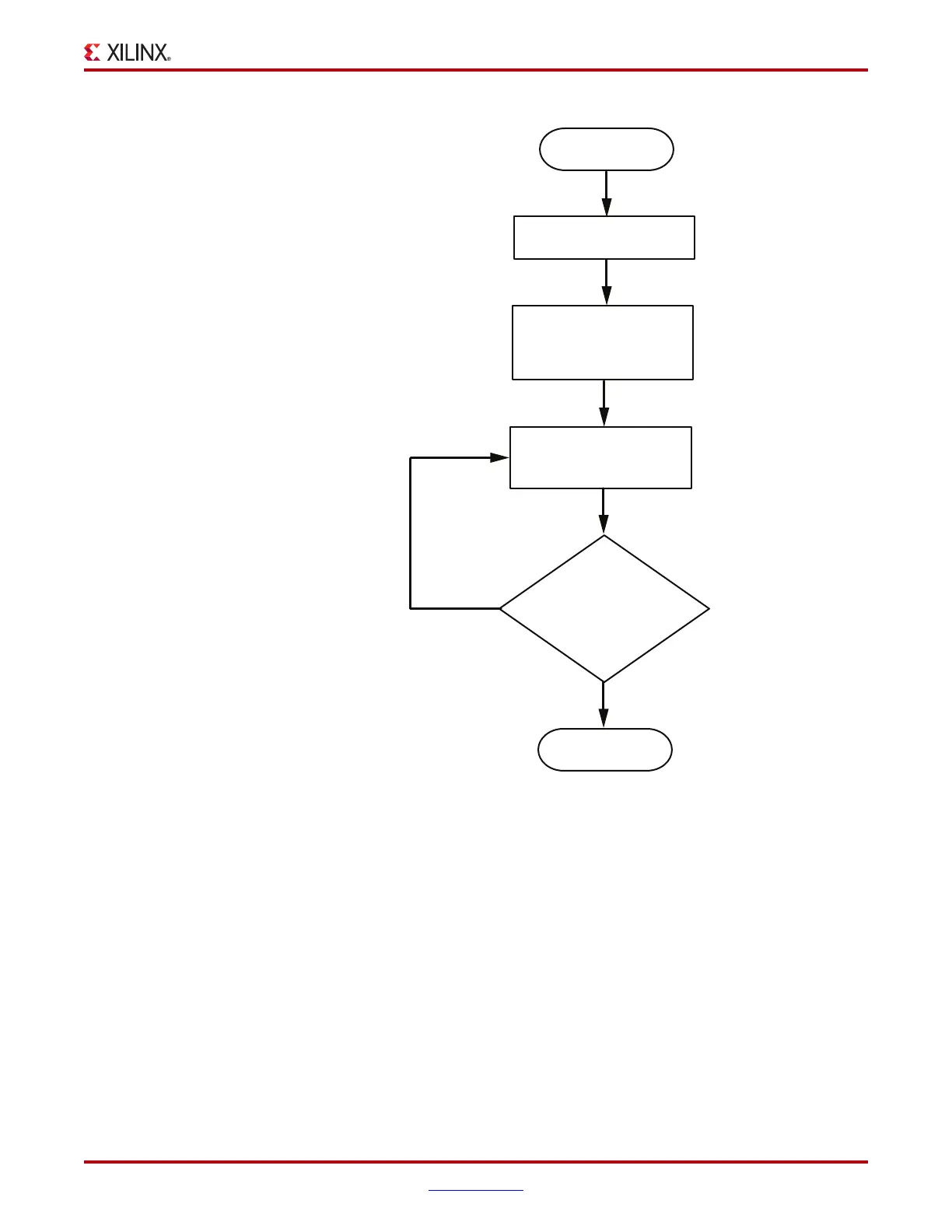

Figure 4-33: Steps Required for Successful RX Phase Alignment
Assert RXPMASETPHASE
for 32 RXUSRCLK2 Cycles
to Phase Align
Wait for MMCM Lock.
RXN/RXP Should be Driven.
Fail
UG366_c4_30_122810
Pass
Phase Alignment
Done
RESET
Validate Data
Received at
Fabric Interface
Drive
RXENPMAPHASEALIGN
and Wait for 32
RXUSRCLK2 Cycles
