Multistage
9836 3123 01 113 (428)
8 Multistage
The Multistage feature offers a dynamic link to up to eight Psets in several steps for
performing a sequence of operations.

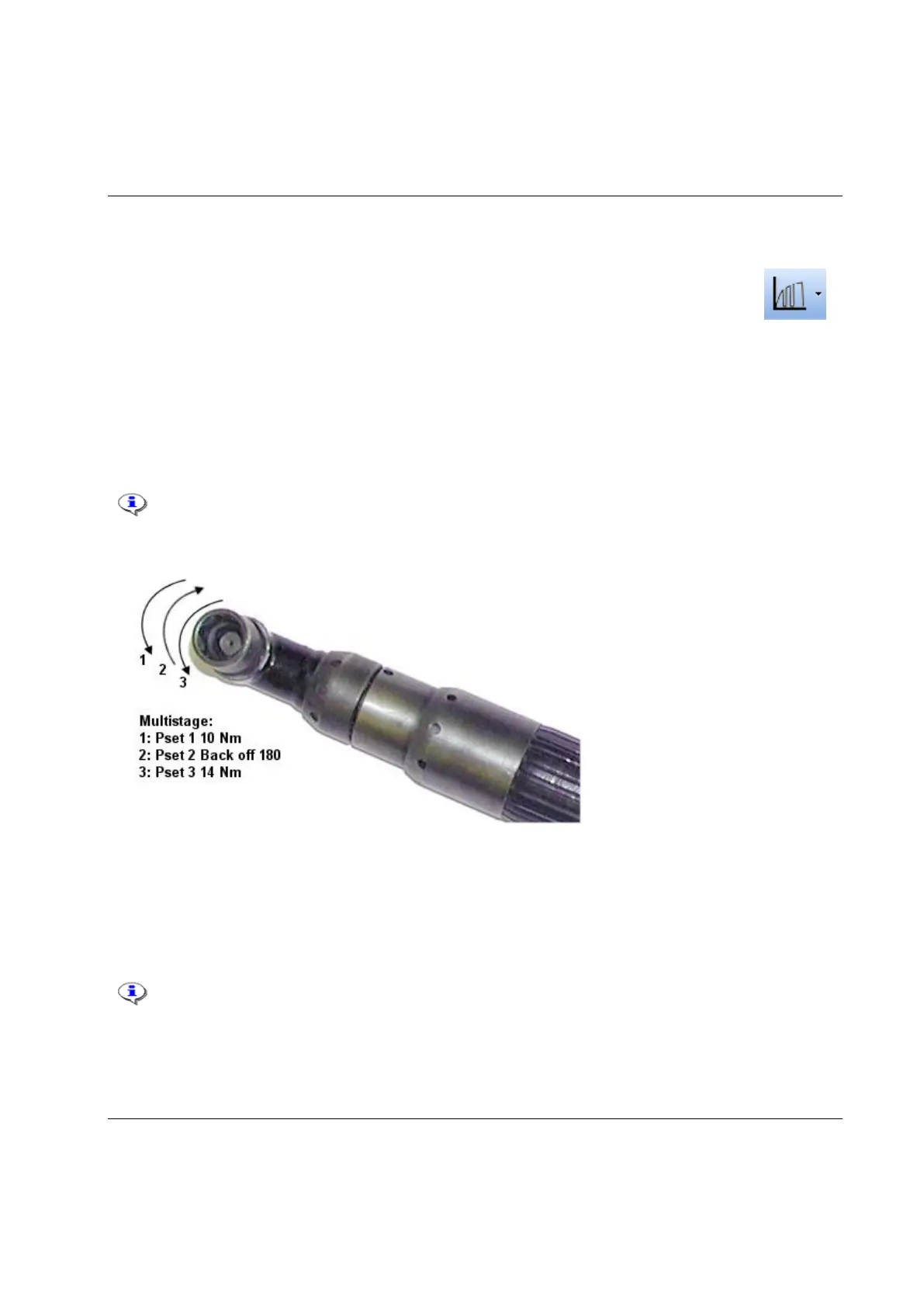

A typical application scenario such as joint conditioning, where the fastener is run to a torque level of 10
Nm then backed off by 180 degrees and then fastened to a final torque level of 14 Nm. This operation
would be regarded as a three step Multistage. This is performed by the operator when in a hand held
configuration by depressing the trigger in the normal way until the end of the operation, or alternatively
when used in a fixed operation where the start signal is either latched or externally triggered.
When running a Multistage the ring button must always be in the CW direction, even if
the first Pset is in the CCW direction.
The Multistage tightening results and statistics are a combination of all the results from the different Psets
within the Multistage. The default setting is all results from the last Pset in the Multistage.
Individual Pset min and max limits function in all stages and the tool shuts off when a max limit is
exceeded (or for any reason if the min limit is not reached) as per normal operation. The result displayed
is then taken from the stage where the shut off occurred.
This section includes screenshots from ToolsTalk PF. The screenshots show examples of
parameter settings and are NOT intended to be generally applicable. Check with your
local Atlas Copco representative how to set up your specific system environment.
See parameter list section Multistage for a description of all available Multistage options.
