Atlas Copco Power Focus 3000 User Manual

Getting started with ToolsTalk PF
9836 3123 01 69 (428)
6.4.3 USB connection
A USB port is standard on PF 4000. The port is located under the PF front panel.
Connect a USB cable between PF and the PC (PF acts as USB device). An extra COM port should now be
visible on the PC. Open ToolsTalk and connect serially via the extra COM port.
Prior to using USB connection, FTDI’s virtual COM port (VCP) drivers should be installed. The
V.2.08.14 of the file is used for Windows 7, Vista, XP and 2000.

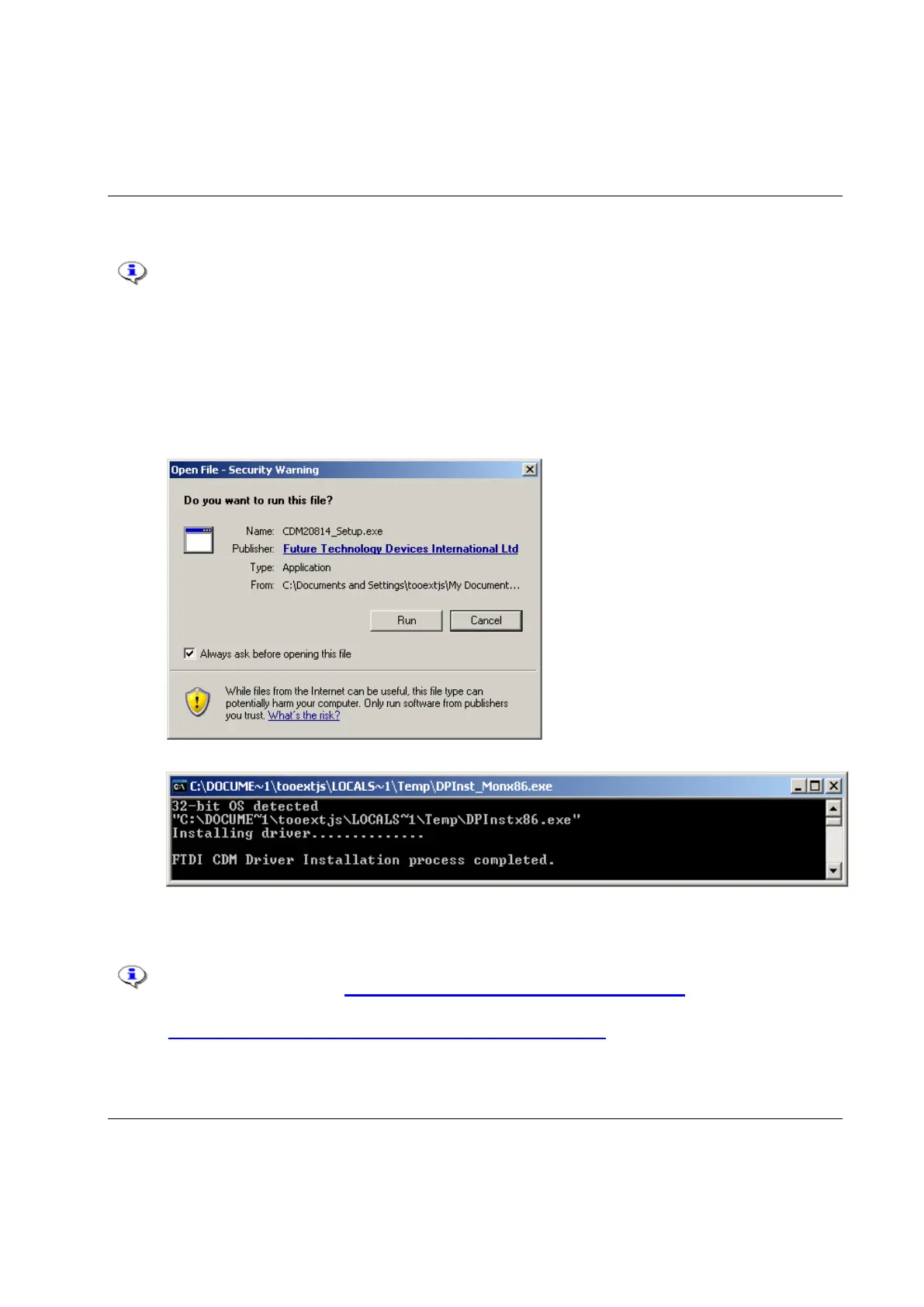

1. Run the CDM20814_Setup.exe file
2. Click Run
3. The driver has been installed when the console window disappears
4. A virtual COM port will appear when connecting to the USB on PF4000 to the PC. Select that
COM port when running Tools Talk Power Focus
If using a different OS then above or to get the latest version of drivers, this driver
can be download from: http://www.ftdichip.com/Drivers/VCP.htm
Also a detailed installation guides are available from:
http://www.ftdichip.com/Documents/InstallGuides.htm .
Contact Atlas Copco representative to obtain more information about available drivers.
