Tool
152 (428) 9836 3123 01

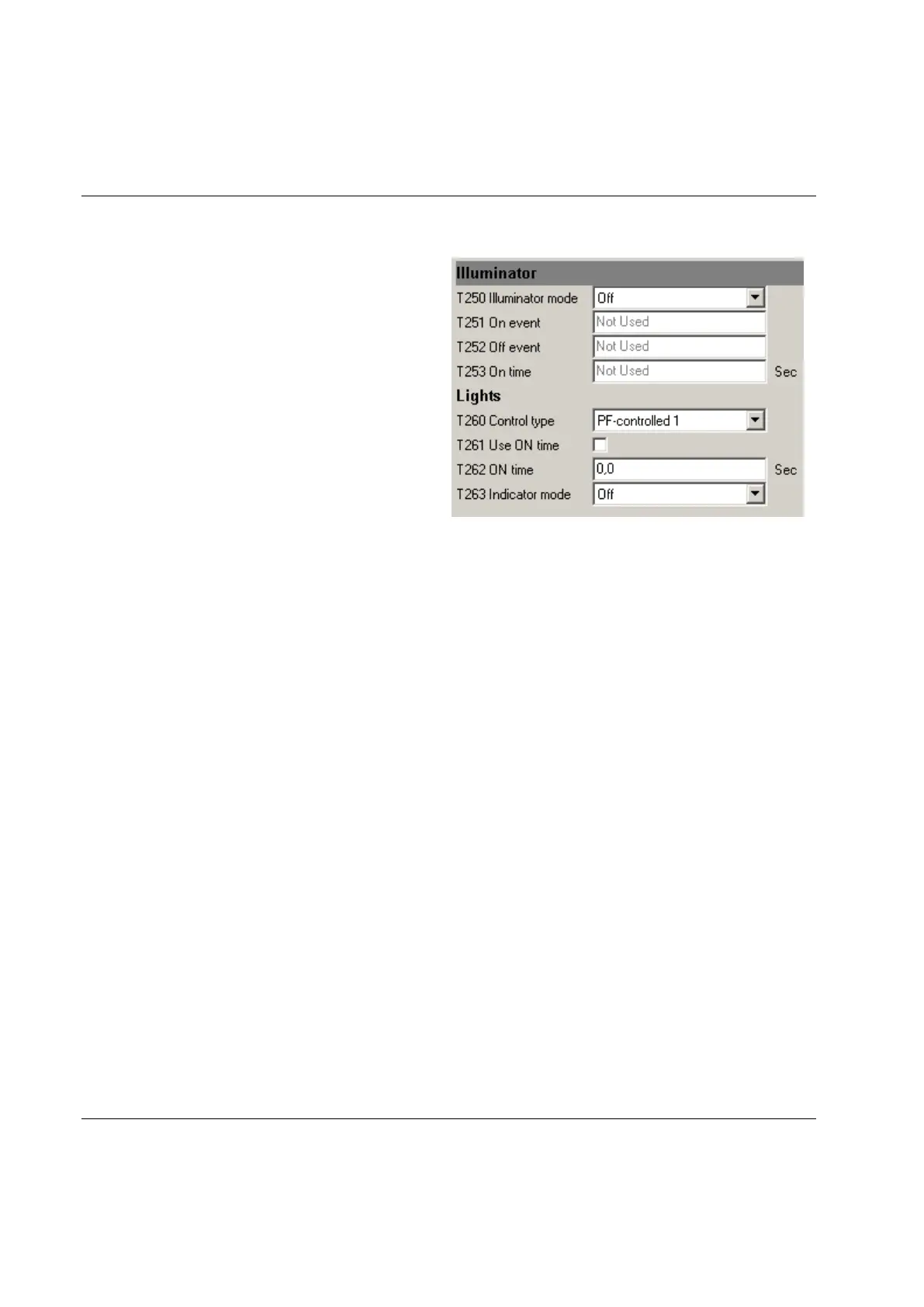

11.2.5 Tool illuminator and lights
Make settings for Illuminator and Lights.
The illuminator, which is a group of LEDs in the
front of SL and ST pistol tools, provides light for
the operator during tool operations.
The parameter T250 Illuminator mode can be set to:
Off - illuminator is constantly off.
On - illuminator is constantly on.
Tracking event - illuminator follows status of
specified T251 On event.
Event controlled - illuminator is turned on when
specified T251 On event occurs and is turned off
when specified T252 Off event occurs. If T252 Off
event is set to ”Off”, the expiration of T253 On
time turns off the illuminator.
The parameters T251 On event, T252 Off event and T253 On time are related to the input from T250
Illuminator mode.
T253 On time sets the maximum time for the illuminator to remain on since the last occurrence of T251
On event, if T250 Illuminator mode is set to Tracking event or Event controlled.
The parameter T260 Control type is used to define the control source for the Tool LED light. The T260
parameter can be set to:
PF-controlled 1 - Light is controlled via specified limits for torque and/or angle
PF-controlled 2 - Customer specific option
PF-controlled 3 - Tool LED’s used to acknowledge Event Code Tightening NOK / Tightening OK
Light off - Tool LED’s functionality disabled.
The parameters T261 Use ON time and T262 ON time is used to specify that the tool LED's should light
for a specified period of time (on) or continuously (off) after a tightening.
T263 Indicator, used to show selected Pset (Pset 1-8) on the tool LED's. Applicable only if an ST tool is
connected.
