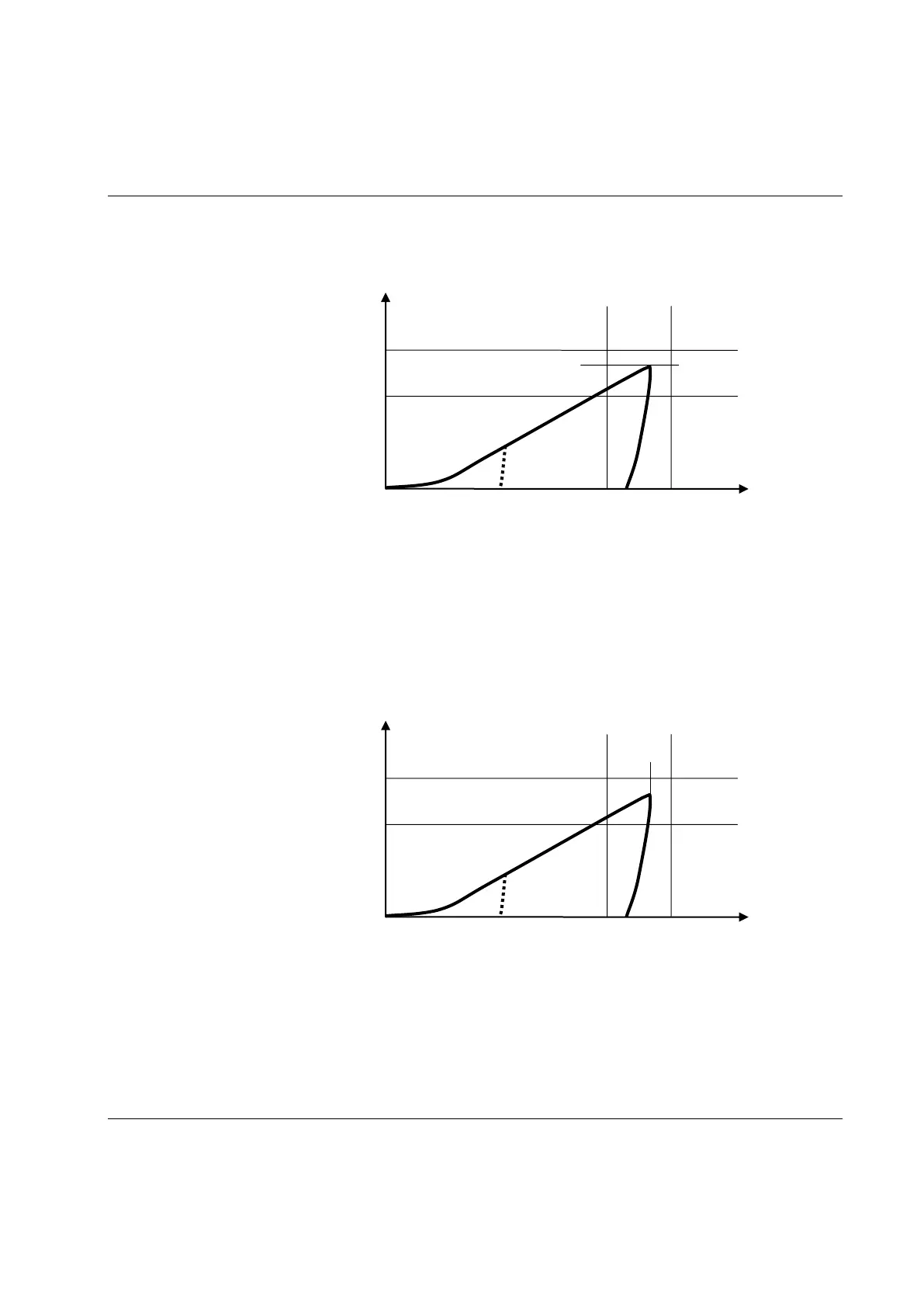

7.6.2 Tq con/ang mon
The Tq con/ang mon strategy
controls the torque and monitors
the angle. This strategy is
selectable for both one and two
stage tightenings. The tool stops
when the torque reaches the P113
Final target value.
If the tool for some reason should
exceed P114 Final tq max or P124
Final angle max, the tool shuts off
and the (NOK) tightening result is
shown.
7.6.3 Ang con/tq mon
Ang con/tq mon strategy controls
the angle and monitors the torque.
This strategy is selectable for both
one and two stage tightenings.
P123 Target angle is then defined
as the number of degrees between
P120 Start final angle and angle
peak. The tool stops at P123 Target
angle.
If the tool for some reason should
exceed P114 Final tq max or P124
Final angle max, the tool shuts off
and the (NOK) tightening results
are shown.
Torque
Angle
1. P112 Final torque min
2. P114 Final torque max
1.
2.
6.
4.
5.
4. P122 Final angle min
5. P124 Final angle max
6. P123 Target angle
Torque
Angle
1. P112 Final torque min
2. P114 Final torque max
3. P113 Final target
1.
2.
4.
5.
3.
4. P122 Final angle min
5. P124 Final angle max
