7.6.5 Reverse ang
The Reverse ang strategy reverses
the spindle a specified number of
degrees in the opposite tool
tightening direction. This is useful
when, for example, the bolt needs
to be loosened before the final
tightening. Create a Multistage to
combine and perform several
Psets as one.
P123 Target angle is defined as the
number of degrees between the
P120 Start final angle and the peak
angle. The tool stops at P123
Target angle.
If the tool for some reason should exceed P114 Final tq max or P124 Final angle max, the tool shuts off and
the (NOK) tightening results are shown. The torque value shown in the result is torque at peak angle.
Angle measurement starts when the P120 Start final angle is reached.
For reverse ang, the “active” direction of the tool socket rotation is the opposite of the P240
Tool tightening direction. For instance, to select CW turn the Direction ring to the left position.
For safety reasons, it is not possible to loosen the joint in this way.

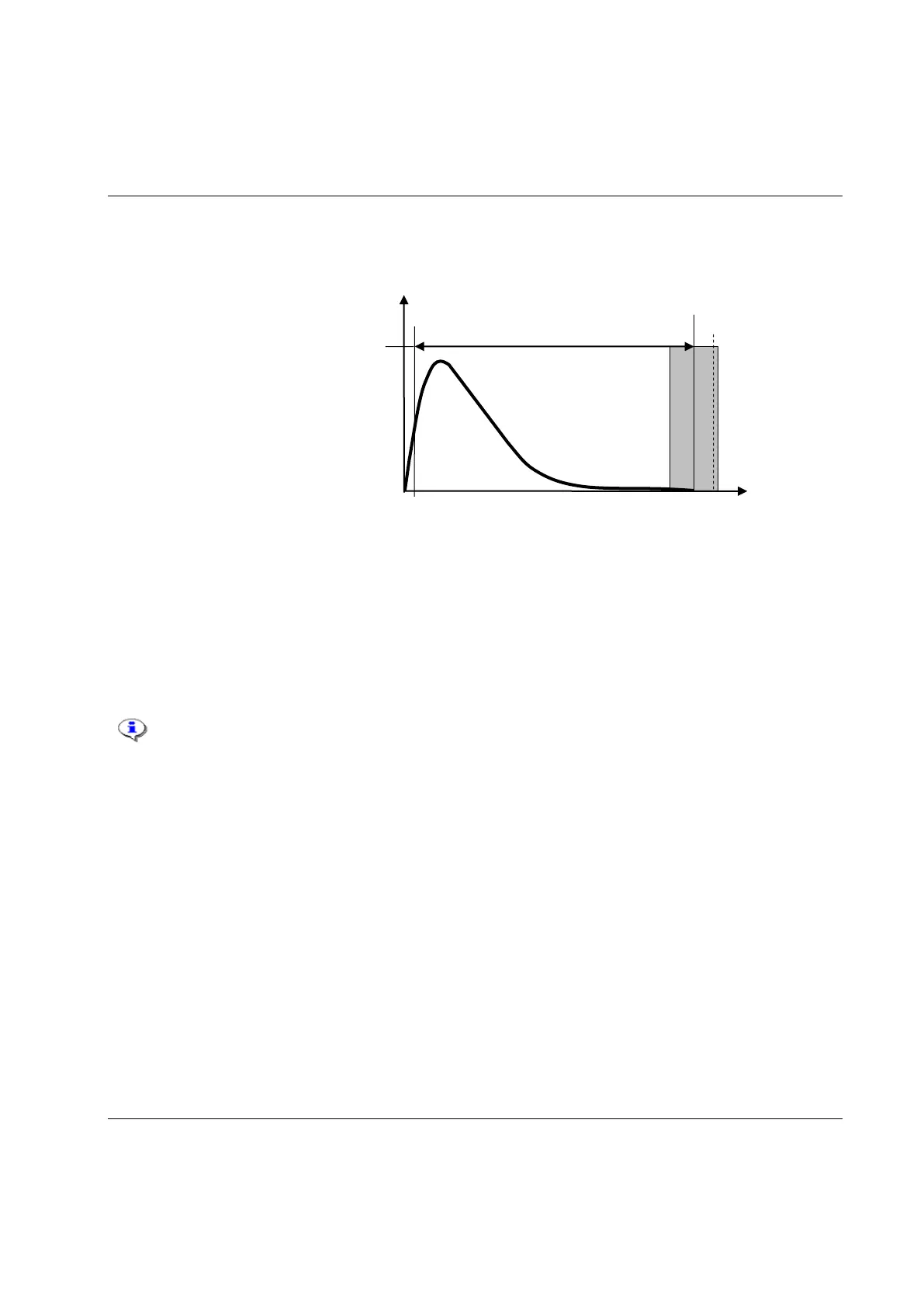

Angle
Torque
1. P123 Target angle
2. P120 Start final angle
3. P114 Final torque max
4. P122 Final angle min
5. P124 Final angle max
1.
2.
4.
3.
5.
